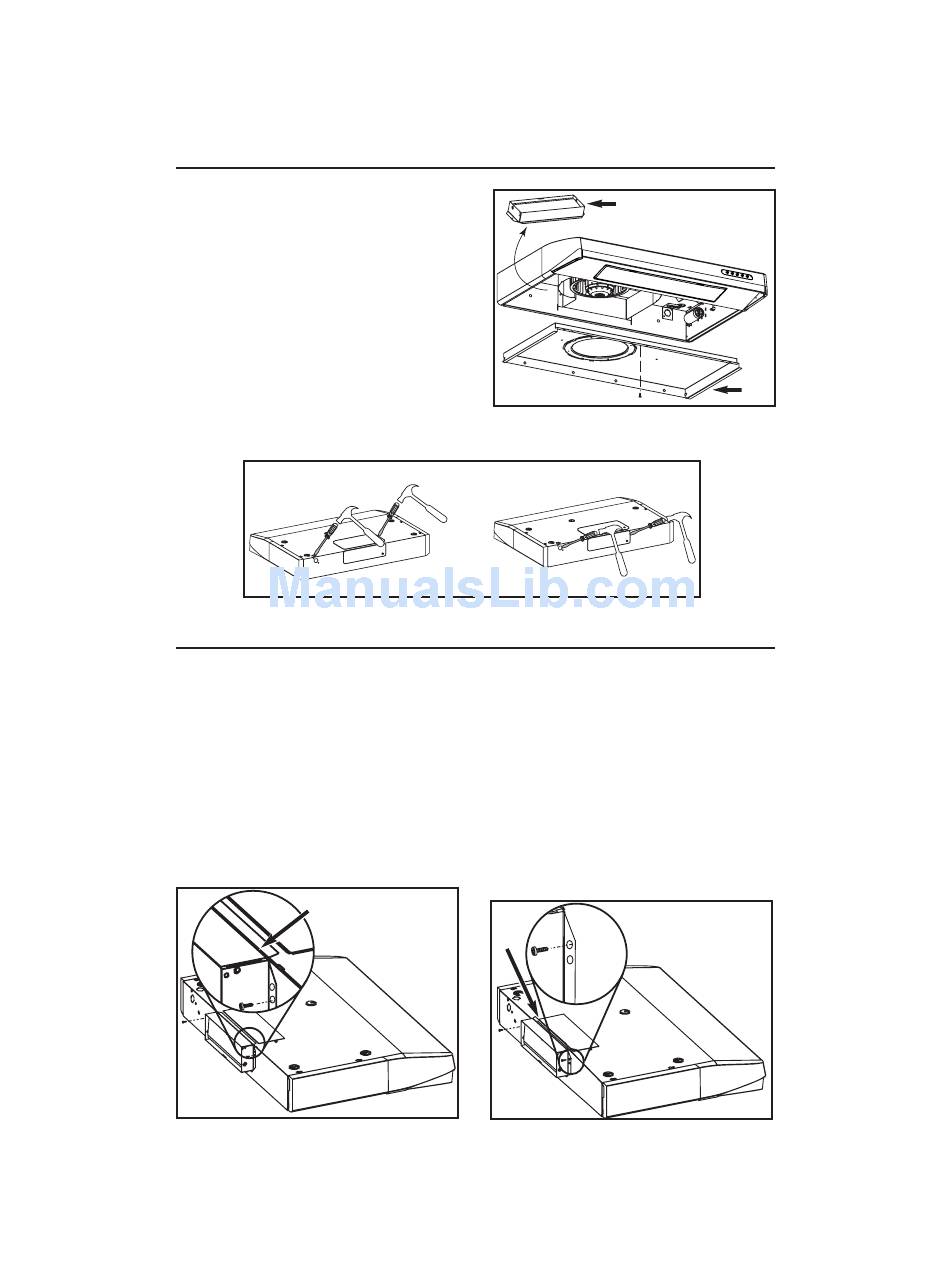

4. PREPARE THE HOOD

Remove both filters
Disassemble the adaptor/damper (A) from the
hood.
NOTE: The adapter/damper is located inside
the hood. Remove the bottom panel
(B) to access the adapter/damper.
Refer to figure beside.
Punch out the electrical and discharge knock-outs for the chosen opening (vertical on top or
horizontal at the back of the hood). Refer to figure below.
V D
ERTICAL ISCHARGE
HD0219

5. INSTALL THE ADAPTER/DAMPER

NOTE: If this hood replaces another one, please note that the location of the air exhaust
can vary from one manufacturer to another.
H ,
ORIZONTAL DISCHARGE NEW INSTALLATION
Fold down the foldable flange (C) of the
adapter/damper. This flange must be at 90°
from the remaining flanges. Use the lower
screw holes on each
adapter/damper to assemble it to the back
of hood. See below.
C
HJ0008
from the hood.
HO0093
H
ORIZONTAL
H
ORIZONTAL DISCHARGE
It may be necessary to adjust the
adapter/damper location to the existing wall
discharge opening. Leave
side of the flange (C) of the adapter/damper as is. Use
the upper screw holes on each side of the
adapter/damper to assemble it to the back
of hood. See below.
C
HJ0009
- 6 -
A
B
D
ISCHARGE
,
HOOD REPLACEMENT
the foldable
