3. PREPARE THE INSTALLATION

Make sure the following items are included:
- Hood
- Filters (2)
- Adapter/damper assembly 3¼'' x 10'' (located inside the hood, under the bottom panel)
- Compact fluorescent lamps (120 V, 13 W, PLC13, 2700 K with G24q-1 base)
- Bag of parts including:
(1) wire clamp, (5) 1/2'' double thread screws, (2) wire connectors and (6) no. 6 x 1/2'' screws
Parts sold separately:
- Transition 3¼"x 10" to 6" round (optional, for 6" round ducts installation only)
When performing installation, servicing or cleaning the unit, it is recommended
to wear safety glasses and gloves.
NOTE: If the bottom of the cupboard is recessed,
attach wood strips (not included), as shown
beside, in order to properly install the range
hood under the cabinet. The wood strips must
be as thick as recess.

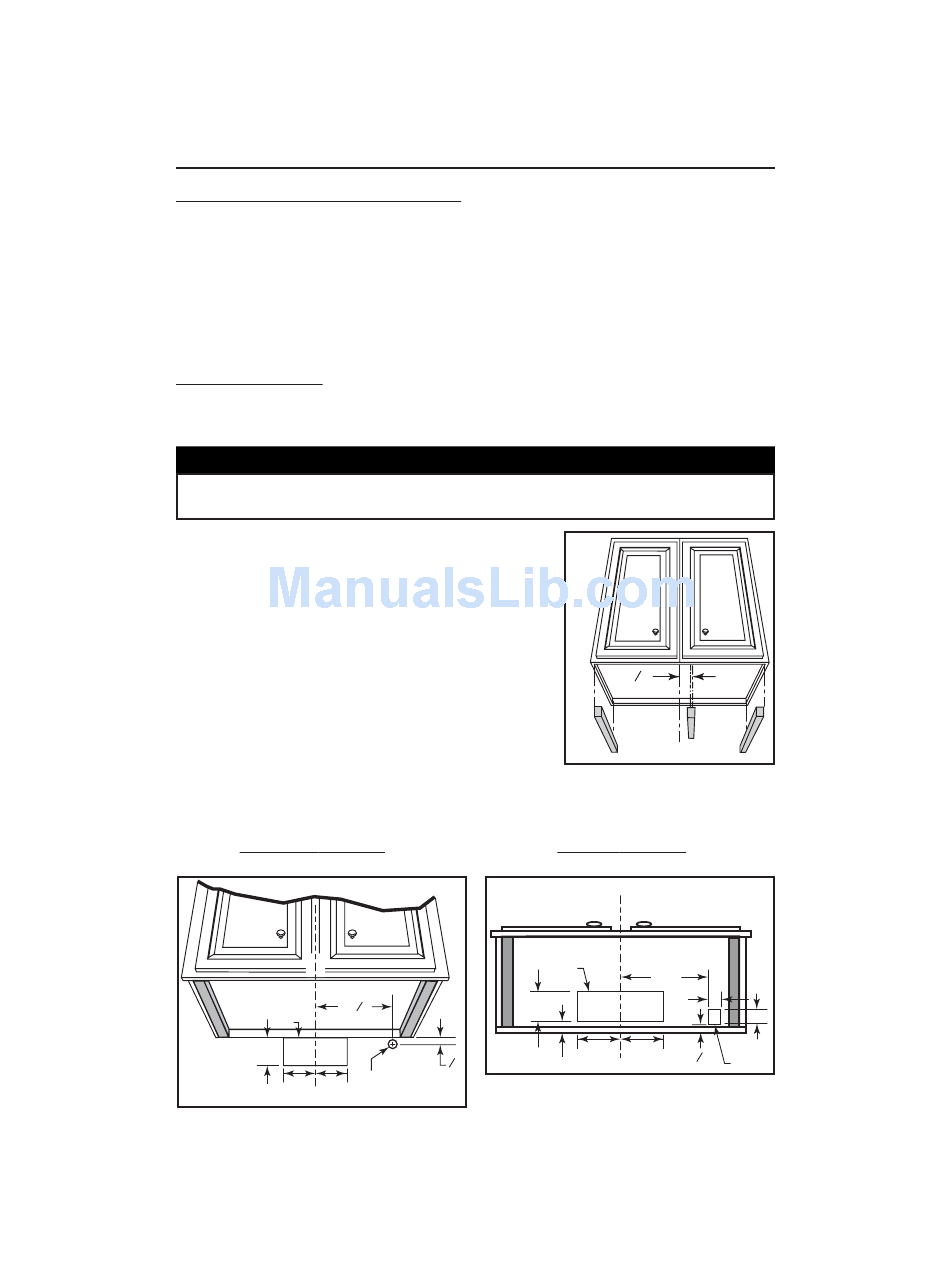

Cut-out the openings for duct (A) and power cable (B), in cabinet or wall, according to the
direction of discharge chosen.
See figures below.
H
ORIZONTAL DISCHARGE
C L
11 1 8
A
3½"
5¼" 5¼"
1¼" dia.
HD0150A
CAUTION
:
"
3¾"
7 8 "
HD0151A
B
- 5 -
3
2 "
8
HO0002A
V :
ERTICAL DISCHARGE
CABINET BOTTOM
C L
A
10½"
¼
1 "
5¼" 5¼"
3 8 "
B
¾"
1½"
