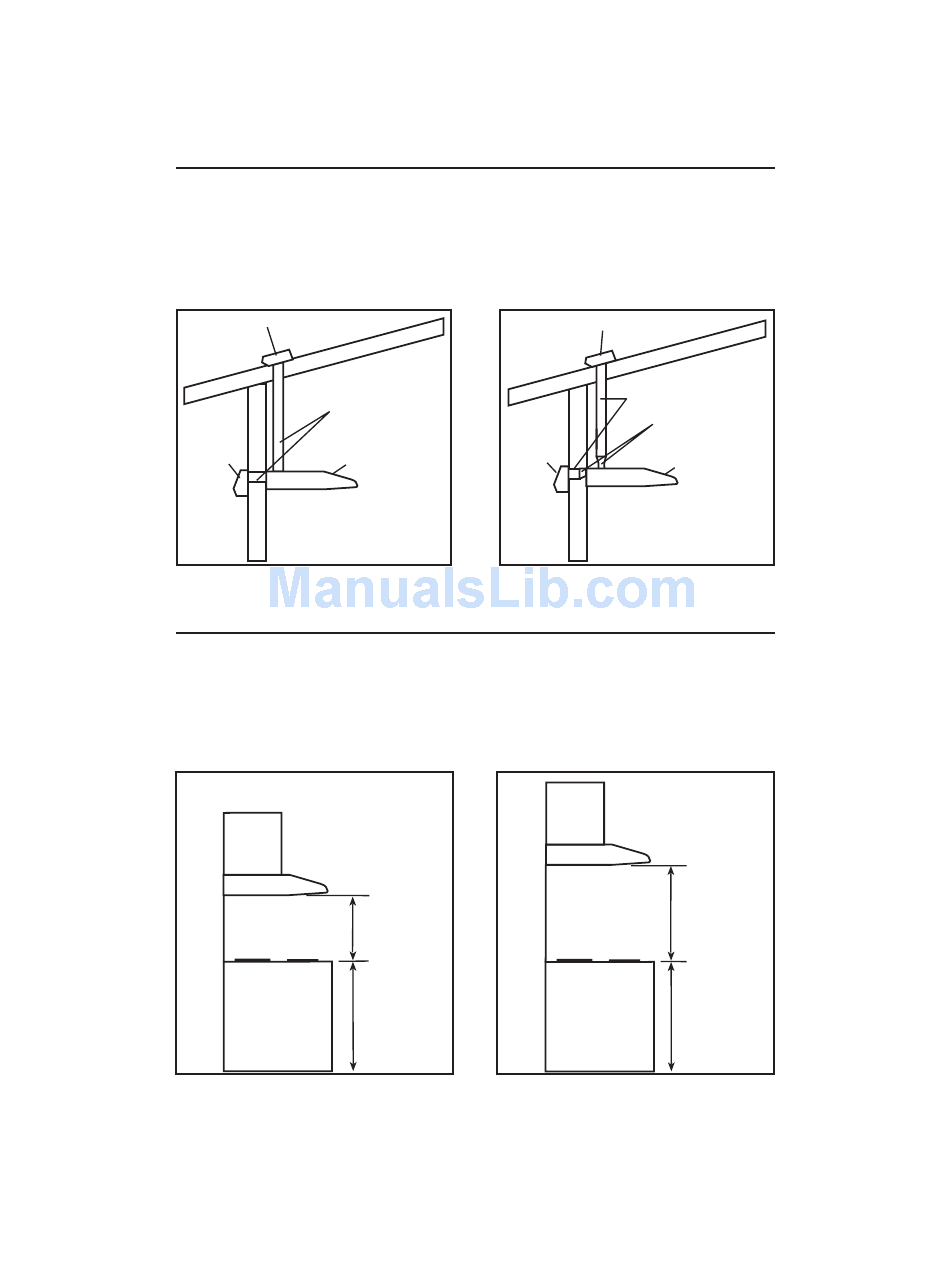

1. INSTALL DUCTWORK

Plan where and how the ductwork will be installed.
Install proper-sized ductwork, elbow(s) and roof or wall cap for the type of blower you are
installing. If using 6'' (150 mm) round ducts, use a transition. Use 2'' (50 mm) duct tape to
seal duct joints.
Roof cap
3¼" x 10" duct
Wall cap
Hood
HH0011A

2. MEASURE THE INSTALLATION

Dimensions for the most common installations are shown below.
We recommend to install the hood at a minimum of 20" (508 mm) from an electric
range and at 24" (610 mm) from a gas range.
For optimal performance, the hood should not be installed more than 30" (762 mm) from
cooktop.
Cabinets
Hood
HH0013A
Wall cap
HH0014A
20" minimum
clearance
(24" for gas)
Standard
36" height
cooktop
HH0012A
- 4 -
Roof cap
6" round duct
3¼" x 10" to 6"
round transition
Hood
Cabinets
Hood
30" maximum
clearance
Standard
36" height
cooktop
