max 45" 11/16
min 32" 13/16
max 51" 15/16 *
min 36" *
* Ductless (recirculating) version ONLY
Note: if necessary order the proper duct cover
extension kit.
16" 5/16
12" 13/16
12" 13/16
35" 6/16
11" 5/8
6" 5/8
19" 5/8
1/2"
Side
Cabinet

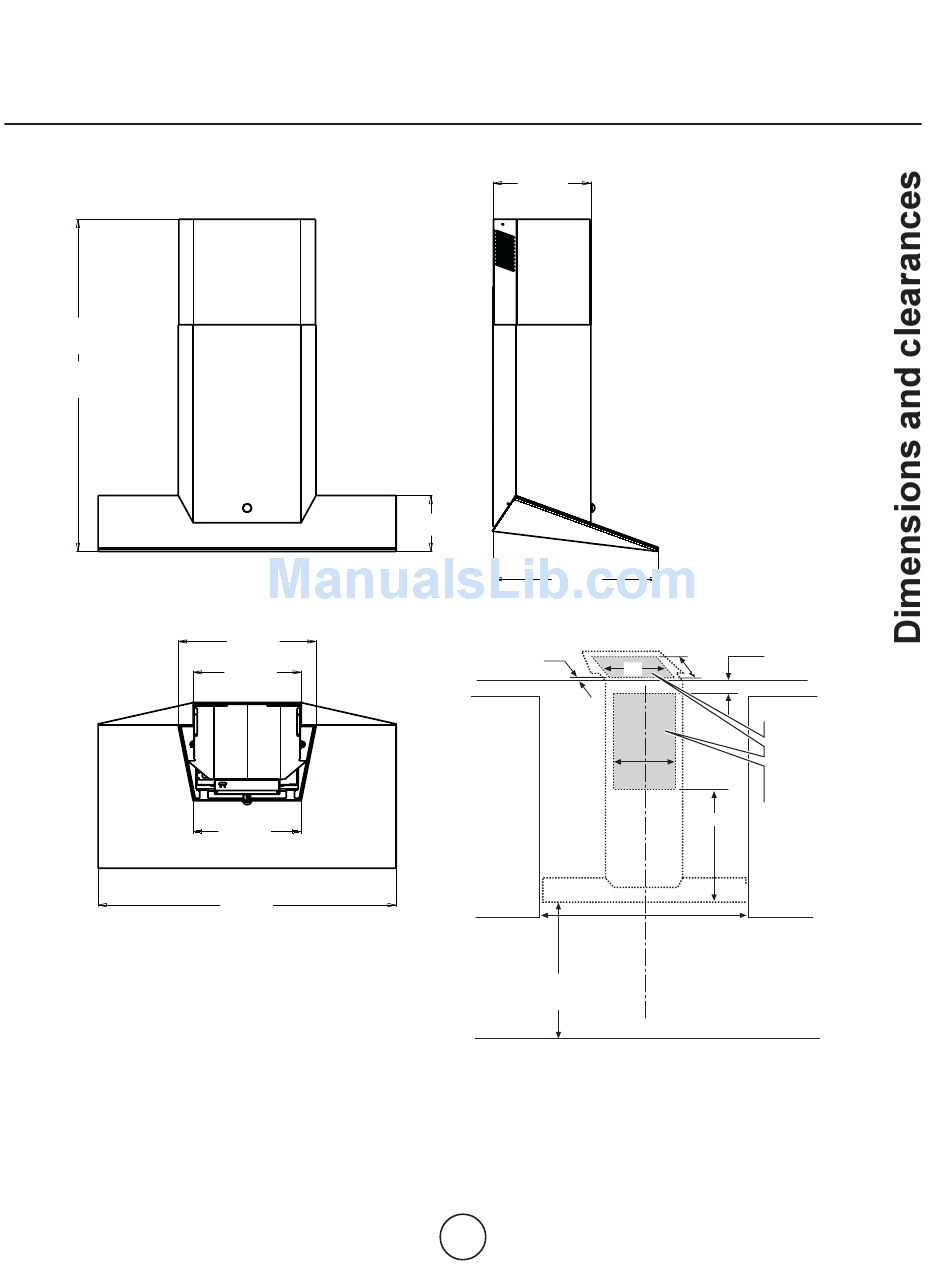

min. cabinets opening widths
24" to 32"
bottom of canopy
to cooking surface
7
www.zephyronline.com
ceiling
2"min
8" 7/16*
11"
11"
Ducting
and conduit
11" 1/2
area
passage(Duct
bends are not
considered)
21" 1/8
Side
Cabinet
35" 7/16
CenterLine
