10. Determine the required height for the conduit and
cut a 1-1/4" (3.2 cm) hole at this location.
Run wires through hole according the National
Electrical Code or CSA Standards and local codes
and ordinances.
There must be enough power supply cable from the
fused disconnect (or circuit breaker) box to make the
connection in the hood’s Junction box/es.
Use caulking to seal all openings.
Do Not turn on power until installation is completed.
11.Remark center line and hood bottom on same
location as before and tape template on wall as in
step 4 above.
12.Mount the lower support bracket with wood screws
(supplied in mounting hardware kit) on locations
marked on template, then remove template.
13.Install duct cover support bracket to wall flush to
ceiling with drywall anchors supplied (the duct cover
support bracket should be installed about 1/8“ (3mm)
away from the ceiling).
For Ductless (recirculating) installations
Install the deflector (available as an extra kit) under
the duct cover support bracket.

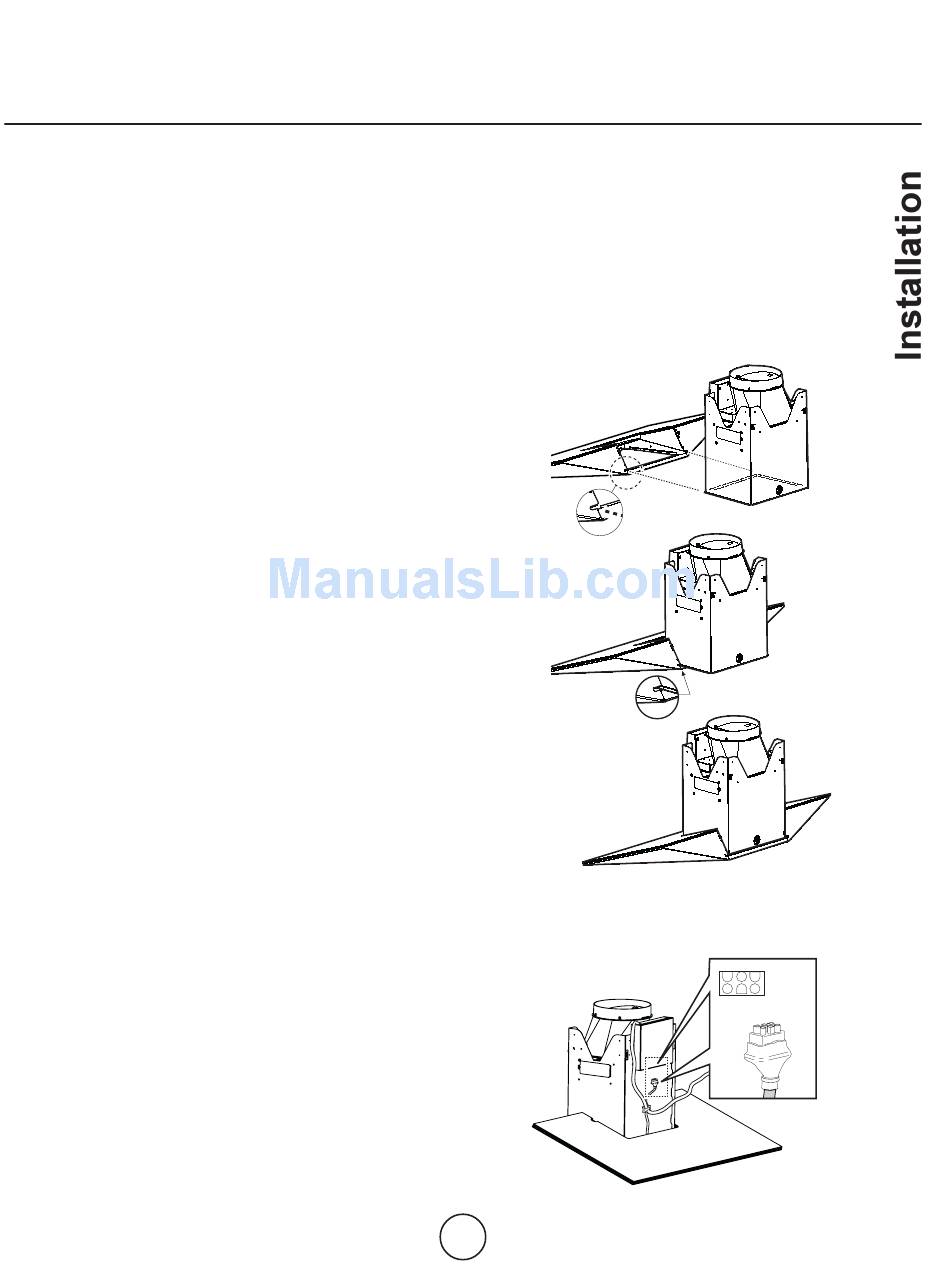

14. If supplied dismounted for shipping, assemble
the lower part of the hood with the integral
ventilator housing:
a. Remove the grease filter (see also Care &
Use section - Charcoal filter).
b. Rest the integral ventilator housing on a flat
surface and thread completely the lower part
of the hood onto it.
c. Make lamps connections.
11
www.zephyronline.com
REAR VIEW
