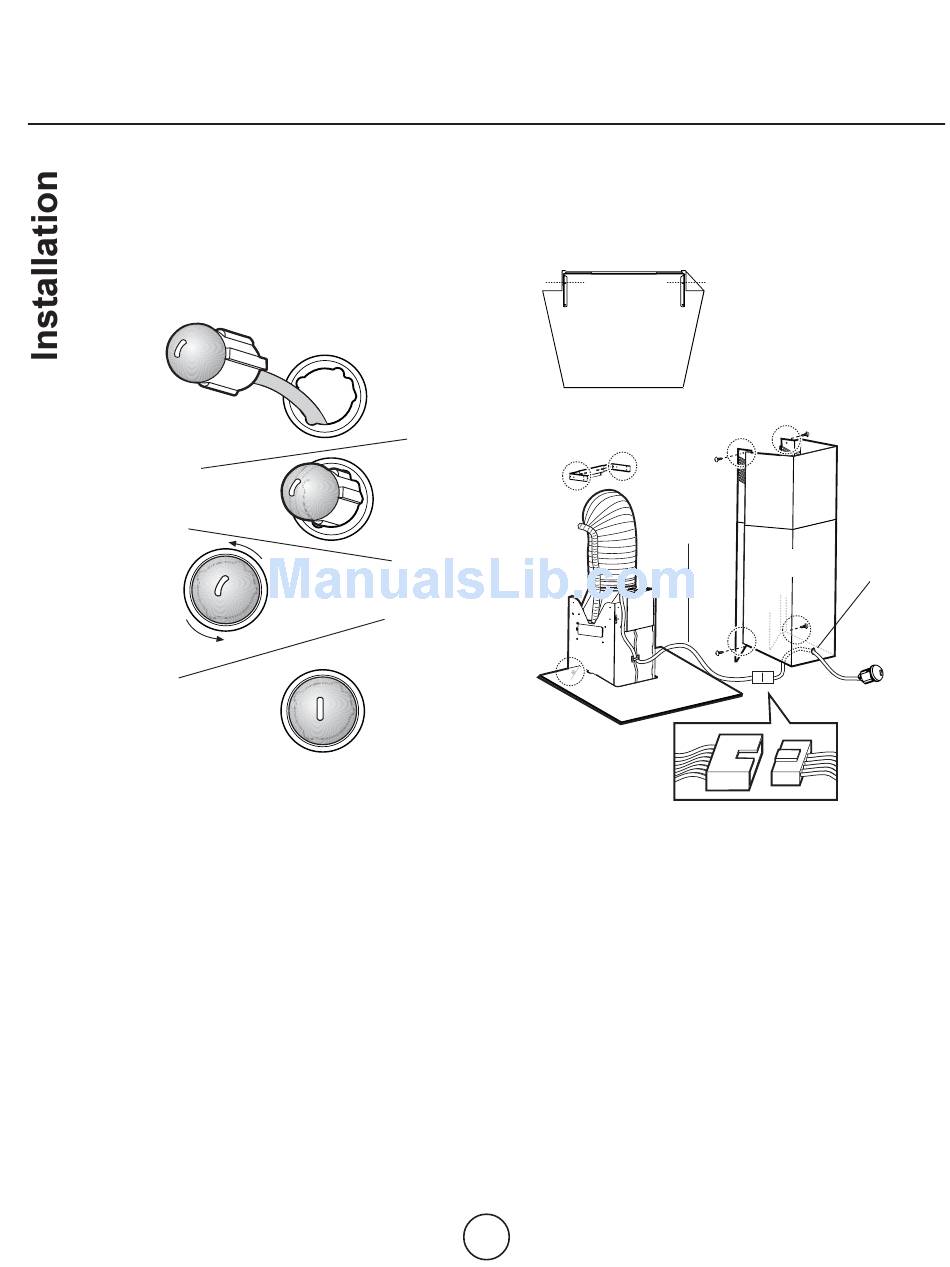

22. Install duct cover with 2 screws first on duct cover
support bracket, then slide the duct lower section
towards the bottom.
23. Fit control ball with its molex plug on its housing and
twist in place.
a
b
c
OK!
24. Perform connection between plates from control ball
and from electronic box.
25.Fold all cables and plate so to avoid any damage
when sliding the lower duct cover towards the
bottom.
26 Fix lower duct cover to canopy with 2 screws.
°
˜ 15
Duct cover
support bracket
TOP
VIEW
Duct cover
support bracket
Plate from
electronic
box
Note! consider this drawings as installation aid,
dimensions are not respected.
27. Check all light bulbs to make sure they are secure in
their sockets.
Turn power on in service panel.
Check lights and blower operation.
If range hood does not operate:
•
Check that the circuit breaker is not tripped or the
house fuse blown.
•
Disconnect power supply. Check that wiring is
correct.
14
Upper
duct cover
Lower
Control Ball
duct cover
Housing
Control Ball
