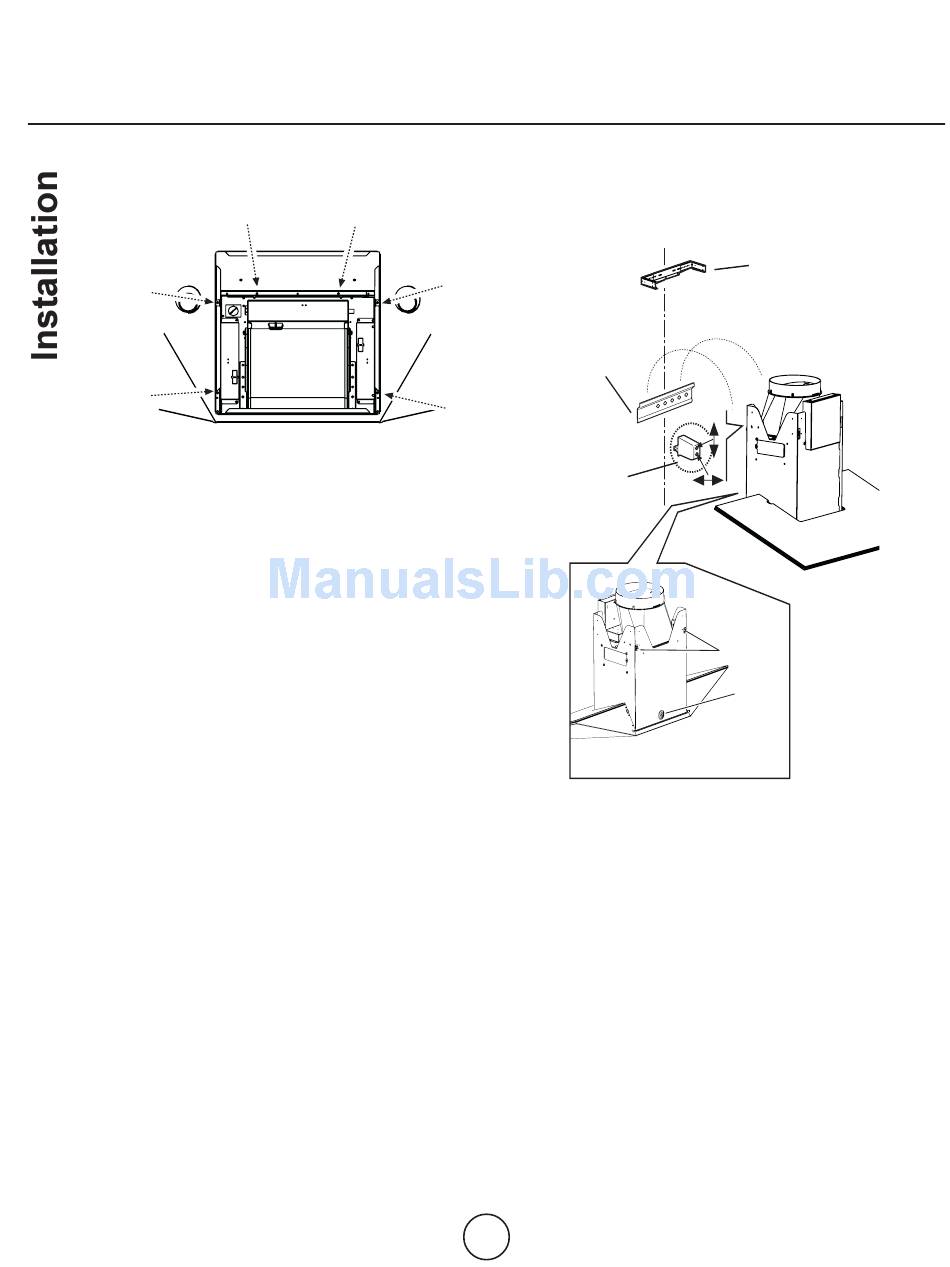

d. Fasten the hood to the motor unit using 6
screws from the bottom (release the grease
filter to access fixing points.
15. Hang hood with the 2 mounting hooks.
WARNING
Excessive Weight Hazard - Use two or more people
to move and install range hood. Failure to do so can
result in back or other injury.
16.Level the appliance, using a carpenters level across
bottom of hood with leveling screws in mounting
hooks.
17. Secure hood with 1 screw on bottom.
Lower
support
bracket
Hooks
Rear view
18. Connect ducting to transition. Seal with duct tape.
Do not use duct smaller than the transition.
For Ductless - recirculating - installations only:
provide and install a duct to connect hood transition to
deflector (the deflector is available as an extra kit).
12
Duct
cover
support
bracket
Hooks
bottom
screw
hole
