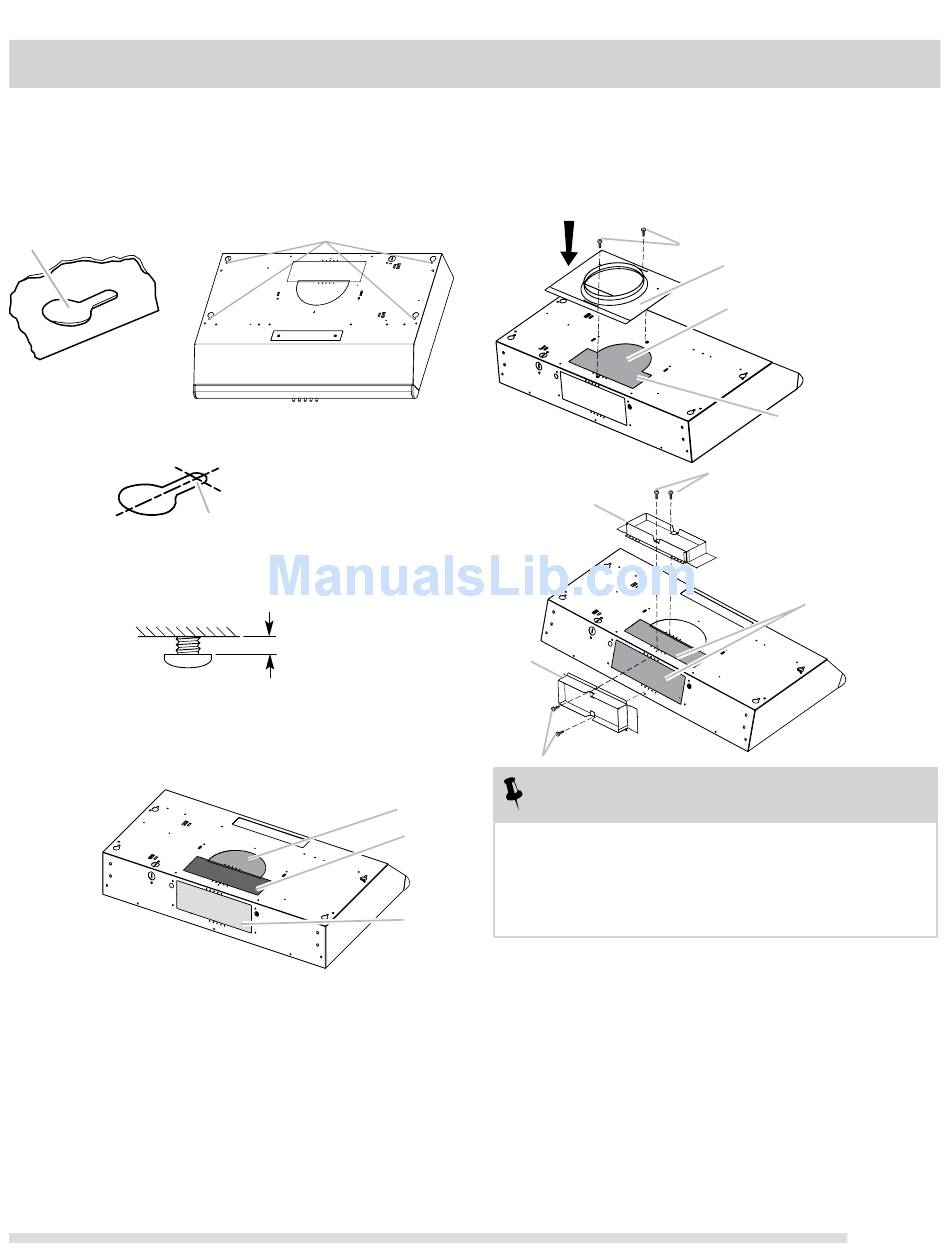

Lift the range hood up under cabinet and determine
final location by centering beneath cabinet. Mark on
the underside of cabinet the location of the 4 keyhole
mounting slots on the range hood (See slot dimensions
on page 6). Set range hood aside on a covered surface.
A
A. Keyhole slot
.
Use ¹⁄
" (3 mm) drill bit and drill 4 pilot holes as shown.
8
NOTE: Make the drill holes on the thin area of the slot.
4.
Install the 4 - .45 cm x 1.3 cm mounting screws in
pilot holes. Leave about ¼" (6.4 mm) space between
screw heads and cabinet to slide range hood into place.
For roof installations, remove the top rectangular or
round vent knockout depending on which vent system
you desire to install. For wall installations, remove the
rear rectangular vent knockout.
A. Top rectangular knockout
B. Rear rectangular knockout
C. Top round knockout
A
A. Drill pilot hole
A
¹⁄4"
(6.4 mm)
Vent Connector Installation
Install 7" (17.8 cm) round vent mounting plate or 3¼" x
10" (8.3 x 25.4 cm) vent connector, depending on your
vent system installation. Attach to range hood using the
indicated screws provided in hardware kit.
A
A
B
NOTE
C
A
The " (1.8 cm) round vent mounting plate or
the 3¼" x 10" (8.3 x 25.4 cm) rectangular vent
connector can be installed up to 1" (. cm) on
either side of the hood center to accommodate
off center ductwork.
B
If a vent damper is installed with a wall cap with
damper, check that they do not interfere with each
other. Remove the vent connector damper flap if
they interfere.
Power Supply Cable Installation
1.
For direct wire installations, run the home power
supply cable according to the National Electric Code
or CSA standards and local codes and ordinances.
There must be enough wiring from the fused disconnect
(or circuit breaker) box to make the connection in the
hood electrical terminal box.

INSTALLING THE HOOD

Install the 7" (17.8 cm)
round vent mounting plate
A
B
A. .29 x .65 cm screws
B. 7" (17.8 cm) round vent
mounting plate.
C
C. Round vent knockout
D. Rectangular vent knockout
D
B
Install the 3¼" x 10" (8.3 x
25.4 cm) rectangular vent
transition
A. 3¼" x 10" (8.3 x 25.4 cm)
rectangular vent transition
B. .35 x .65 cm screws
C. Rectangular vent knockouts
C
11
