LOCATION REQUIREMENTS

IMPORTANT
Observe all governing codes and ordinances.
It is the installer's responsibility to comply with
installation clearances specified on the model/serial
rating plate. The model/serial rating plate is located
inside the range hood on the left side (See page 2
for location). Range hood location should be away
from strong draft areas, such as windows, doors and
strong heating vents.
Cabinet opening dimensions that are shown must
be used. Given dimensions provide minimum
clearance. Consult the cooktop/range manufacturer
installation instructions before making any cutouts.
Grounded electrical outlet is required. See
"Electrical Requirements" section.
All openings in ceiling and wall where canopy hood
will be installed must be sealed.
For Mobile Home Installations
The installation of this range hood must conform to the
Manufactured Home Construction Safety Standards, Title
24 CFR, Part 328 (formerly the Federal Standard for
Mobile Home Construction and Safety, Title 24, HUD, Part
280) or when such standard is not applicable, the stan-
dard for Manufactured Home Installation 1982 (Manu-
factured Home Sites, Communities and Setups) ANSI
A225.1/NFPA 501A, or latest edition, or with local codes.

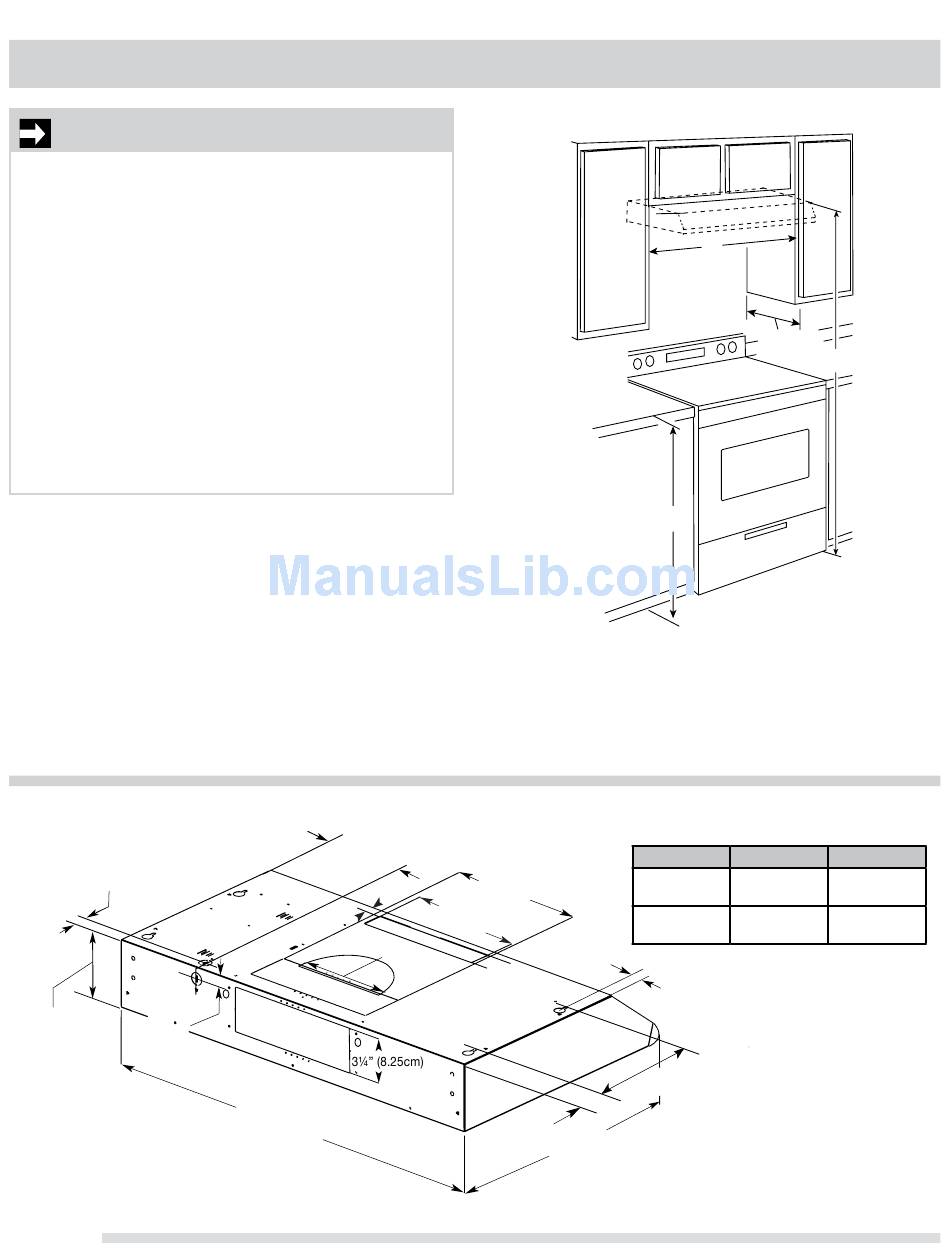

PRODUCT DIMENSIONS

/
"
7
8
(2.2cm)
7
/
"
4
/
"
15
8
16
(2.2cm)
(12.5cm)

DIM B
9
/
"
16
(1.4cm)
9½" (24cm)
recirculating cover
7" (17.8cm
DIM A
Cabinet Dimensions
A. 66" (167 cm) suggested min. - top of range hood to floor.
B. 30" (76.2 cm) min. cabinet opening width for 30" (76.2 cm)
models and 36" (91.4 cm) min. cabinet width for 36" (91.4 cm)
models.
C. 13" (33.0 cm) cabinet depth
D. 36" (91.4 cm) base cabinet height
hood model
FHWC3040
10" (25.4cm )
30" models
FHWC3640
36" models
1½" (4cm)
recirculating cover
9" (22.9cm)
typical both sides
1½" (3.8cm)
19
/
"
3
4
typical both sides
(50.2cm)
B
C
A
D
Dim A
30" (76.2 cm)
6
36" (91.44 cm)
9½" (24.3 cm)
1" (2.5cm)
typical both sides
Dim B
/
" (16.7 cm)
9
16
