TLL-1100A Cloning Connections / Learning Setup

Connections for the TLL-1100A Clone Programmer to Learn the Master TV Setup
On Master TV
Set up all Master TV features on the
menus, and do a Channel Search. Add
Channel and Aux labels, etc. Insert the
MPI cable into the TV MPI port.
On TLL-1100A
1. Turn ON the TLL-1100A.
2. Use the MODE button to select
Clone Mode.
3. Use the Left/Right arrow to select
the CBank (1 to 8) in which to store
the Master Setup.
4. Plug the other end of the MPI cable
into the MPI port on the bottom of
the TLL.
5. With the Installer Remote, select
item 1 on the TLL Menu.
6. Press ENTER to transfer the Master
Setup into CBankX on the TLL. The
TLL will copy the Master Setup.
7. When Learning is done, disconnect
the MPI cable from the Master TV.
8. Reconnect the TV power cord, and
turn ON the TV. The Master Setup
should be resident on the TV.
On Target TV
1. Connect the MPI cable from the
TLL to the MPI port on the Target
TV. Ensure that the correct
CBank(X) is selected on TLL.
2. With the Installer Remote, select
item 2, to "teach" the Target TV the
Master TV Setup.
3. Press ENTER to begin Teaching.
4. When Teaching is done, disconnect
the MPI cable, and turn OFF the TV.
Then, unplug the TV power cord.
5. Reconnect the TV power cord, and
turn ON the TV. The Master Setup
should be resident on the TV.
►
If an analog channel is not available, tune the TV to an Aux source, such as AV-1, for cloning purposes.
20
CLONE SELECTION MENU
Selected Bank: CBankX Saved
(1) LEARN FROM TV
(2) TEACH TO TV
(3) SET CLONE CLOCK FROM TV
(4) SET TV CLOCK FROM CLONE
(5) DISPLAY TV SETUP
(6) DISPLAY CLONE SETUP
CLONE CLOCK = 00:00
TV CLOCK = 00:00
THE CLONE IS VERSION V2.2.2
-To change menu items, press
channel keys or digits.
-To execute item, press ENTER.
TV Link
Loader-Demo
TLL1100A
Ready
MODE
MENU
ENTER
RECEIVE SEND
TLL1100A
Warning: Do not
in the TV, or the Clone Programmer device and the PPV card will be
damaged.
Note: These procedures assume that the TV is connected to a
signal source, the TV source selected is Antenna (RF) In, the
signal is from an analog channel (not a digital channel), all
equipment is connected to power and turned ON, and the TLL
Cloner Main Menu is displayed on the TV screen (see above).

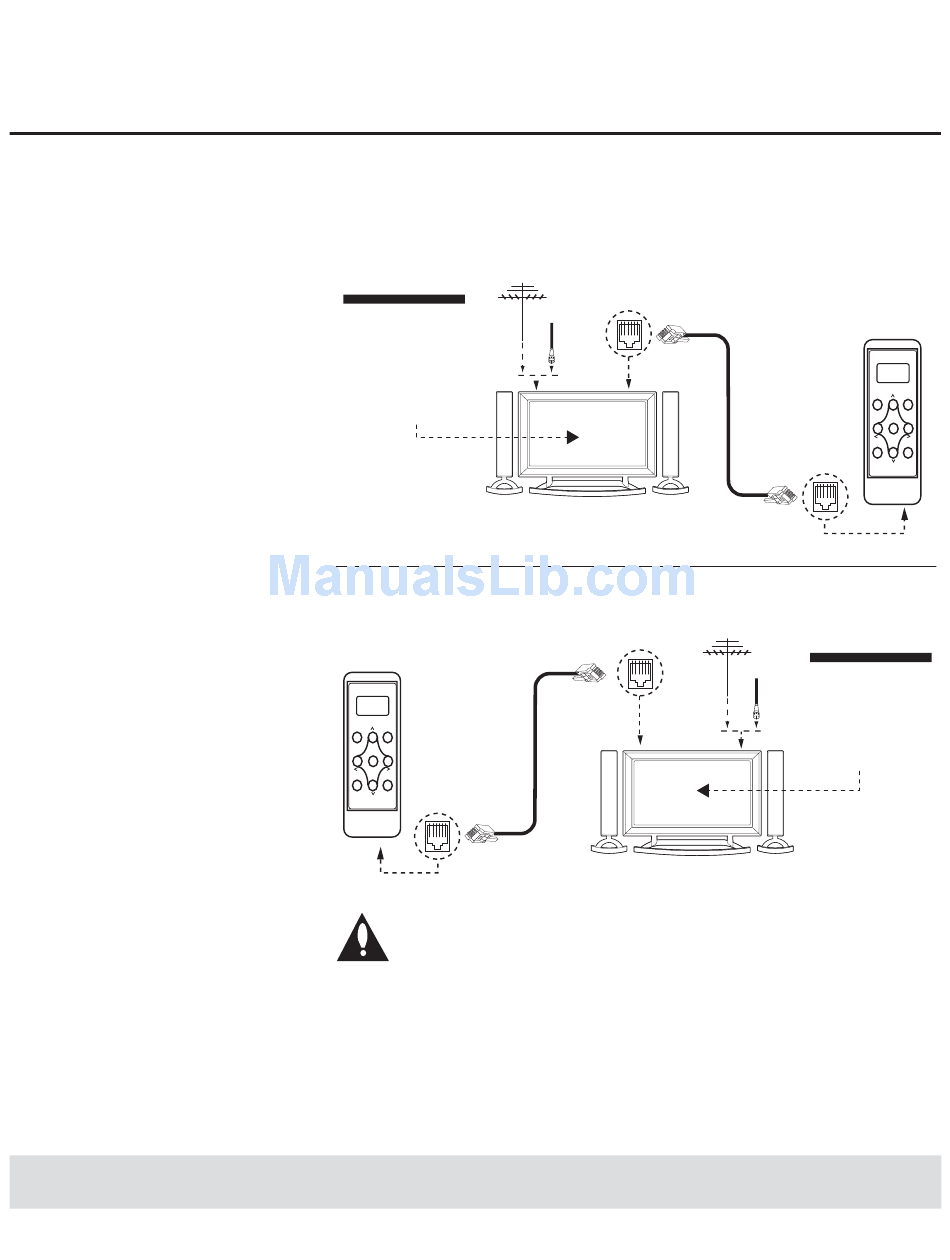

MPI Learning Setup
Antenna
(or CATV)
MPI Teaching Setup
use the TLL-1100A while any PPV card is installed
TV Link
Loader-Demo
TLL1100A
Ready
MODE MENU
ENTER
RECEIVE SEND
TLL1100A
CLONE SELECTION MENU
Selected Bank: CBankX Saved
(1) LEARN FROM TV
(2) TEACH TO TV
Antenna
(3) SET CLONE CLOCK FROM TV
(or CATV)
(4) SET TV CLOCK FROM CLONE
(5) DISPLAY TV SETUP
(6) DISPLAY CLONE SETUP
CLONE CLOCK = 00:00
TV CLOCK = 00:00
THE CLONE IS VERSION V2.2.2
-To change menu items, press
channel keys or digits.
-To execute item, press ENTER.
