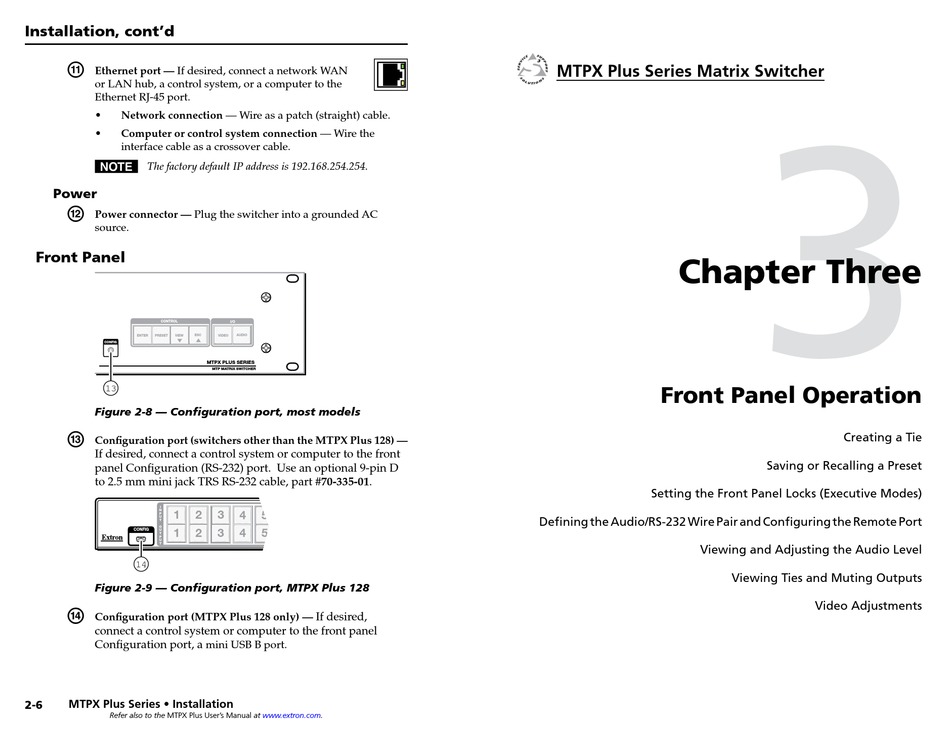

Installation, cont'd
k
Ethernet port — If desired, connect a network WAN
or LAN hub, a control system, or a computer to the
Ethernet RJ-45 port.
• Network connection — Wire as a patch (straight) cable.
• Computer or control system connection — Wire the
interface cable as a crossover cable.
The factory default IP address is 192.168.254.254.
N

Power

l
Power connector — Plug the switcher into a grounded AC
source.

Front Panel

CONTROL
ENTER PRESET VIEW ESC
CONFIG
13
Figure 2-8 — Configuration port, most models
m
Configuration port (switchers other than the MTPX Plus 128) —
If desired, connect a control system or computer to the front
panel Configuration (RS-232) port. Use an optional 9-pin D
to 2.5 mm mini jack TRS RS-232 cable, part #70-335-01.
I
N 1 2
P
U
T
O
1 2
CONFIG
U
T
P
U
T
14
Figure 2-9 — Configuration port, MTPX Plus 128
n
Configuration port (MTPX Plus 128 only) —
connect a control system or computer to the front panel
Configuration port, a
2-6 MTPX Plus Series • Installation
Refer also to the MTPX Plus User's Manual at www.extron.com.
I/O
VIDEO AUDIO
MTPX PLUS SERIES
MTP MATRIX SWITCHER
3 4 5
3 4 5
If desired,
mini USB B port.
MTPX Plus Series Matrix Switcher
Chapter Three

Front Panel Operation

Setting.the.Front.Panel.Locks.(Executive.Modes)
Defining.the.Audio/RS-232.Wire.Pair.and.Configuring.the.Remote.Port
Viewing.and.Adjusting.the.Audio.Level
3
Creating.a.Tie
Saving.or.Recalling.a.Preset
Viewing.Ties.and.Muting.Outputs
Video.Adjustments
