3.2 Admin | Snmp; Figure 5-4. Admin | Snmp Page - Comtech EF Data CDD-880 Installation And Operation Manual

CDD-880 Multi Receiver Router
Ethernet Management
5.4.4.3.2 Admin | SNMP
The 'Admin | SNMP' page (Figure 5-4) sets and returns administration information for the
CDD-880 Simple Network Management Protocol (SNMP) feature. For further information about
SNMP, see Section 5.3 SNMP INTERFACE.
SNMP Configuration
Use the provided text boxes to assign the desired SNMP configuration string. For each string
created, click [Submit] as needed to save the change(s). Note the following:
•
(FUTURE)
•
An SNMP Read Community String can be assigned. This string can be any combination of
characters and a length of 4 - 15 characters. The factory default for this parameter is public.
•
An SNMP Write Community String. This string can be any combination of characters and
a length of 4 - 15 characters. The factory default for this parameter is private.

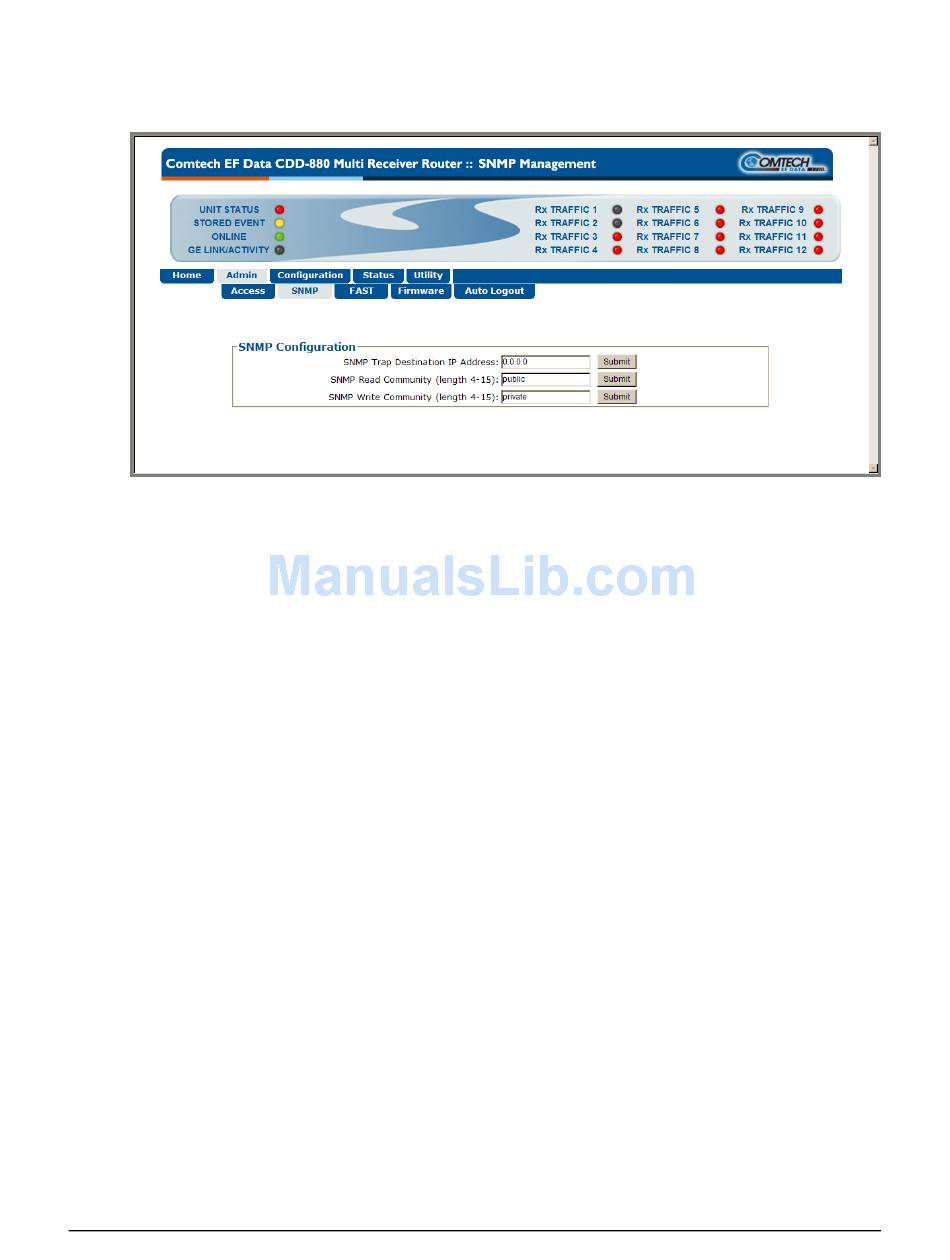

Figure 5-4. Admin | SNMP page

A single SNMP Trap Destination IP Address can be assigned.
5–8
Revision 0
MN-CDD880
