ADA 6 Component
The Extron ADA 6 Component is a component/HDTV (high-
definition television) distribution amplifier. It is designed for use
when one component/HDTV video signal must be sent to up to
six output devices (11 with looping) without loss of signal quality.
Features
• Accepts and outputs component video.
• High bandwidth provides signal distribution with no loss of
picture quality.
• Looping allows two amplifiers to be connected to provide up to
11 outputs.
Installation
To install the ADA 6 Component, do the following:
1. Remove power cords from the amplifier and all input and
output devices.
2. If you are rack mounting the amplifier, attach it to a rack
front panel (Extron part number 60-126-01) or rack shelf
(Extron part number 60-030-01), and then mount the
assembly in the rack.
3. Connect the input BNC connectors to the signal source, such
as a high-definition television (HDTV). There are three
connectors: R-Y, B-Y, and Y.
HDTV Receiver
100- 240 V 50/60 Hz
0.20A MAX
HDTV CRT
4. If you are looping amplifiers, choose the unit that will be #1,
and connect one set of its outputs to the input on
amplifier #2.
5. Connect each output to the R-Y, B-Y, and Y connectors on its
destination, such as a monitor or large screen projector.
6. Attach a BNC 75-ohm termination plug to each unused
output connector.
7. Reattach power cords, and apply power to the amplifier and
to all input and output devices.
2 ADA 6 Component
INPUT
ADA 6 Component
COUPLING
AC
DC
R-Y R-Y R-Y R-Y R-Y R-Y R-Y
AC
DC
B-Y B-Y B-Y B-Y B-Y B-Y B-Y
AC
DC
Y Y Y Y Y Y Y
HDTV Large Screen
Display
Operation

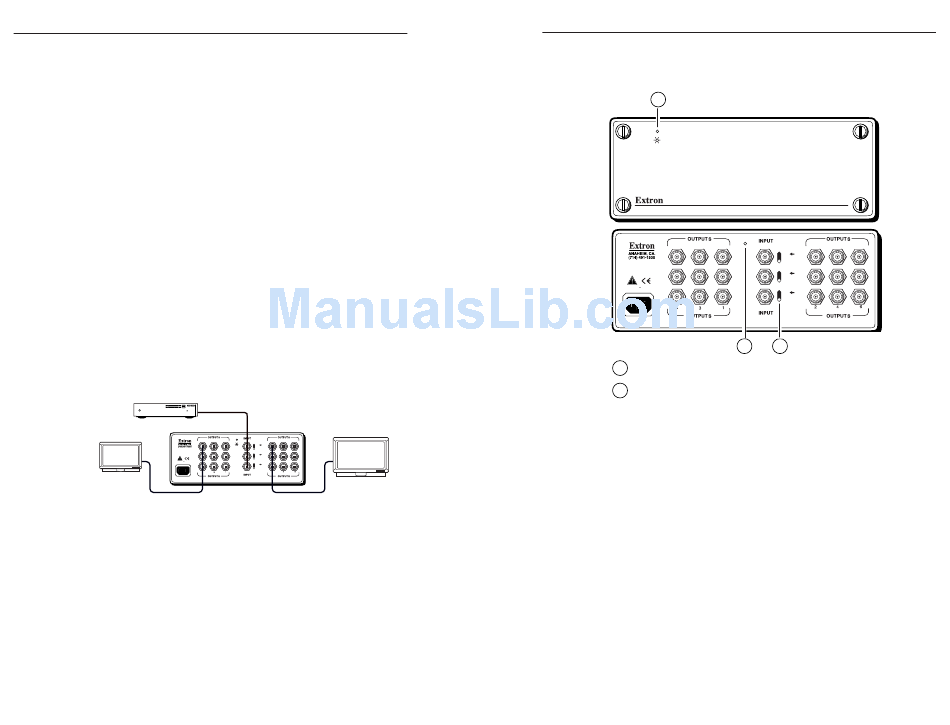

The figure below shows the amplifier's front and rear panels.
1
R-Y R-Y
B-Y B-Y
100- 240 V 50/60 Hz
0.20A MAX
Y Y
Power LEDs — Light to indicate that the amplifier is on.
1
AC/DC Coupling switches (3) — Normally, set to AC (up).
2
If the application requires DC coupling, set to DC (down).

Specifications

Video
Gain ................................................ Unity
Bandwidth ..................................... 180 MHz (-3dB), fully loaded
Video input
Number/signal type ................... 1 RGsB, component video, S-video,
Connectors ................................... 3 BNC female
Minimum/maximum levels ....... Analog ....... 0.5V to 1.5V p-p with no DC
Impedance .................................... 75 ohms
Horizontal frequency .................. 15 kHz to 150 kHz
Vertical frequency ....................... 15 Hz to 140 Hz
Return loss .................................... -38dB @ 5 MHz
AC/DC coupling ......................... Yes, switch-selectable
ADA 6 Component
Component/HDTV Distribution Amplifier
COUPLING
AC
DC
R-Y R-Y R-Y R-Y R-Y
AC
DC
B-Y B-Y B-Y B-Y B-Y
AC
DC
Y Y Y Y Y
1 2
composite video
offset at unity gain
ADA 6 Component 3
