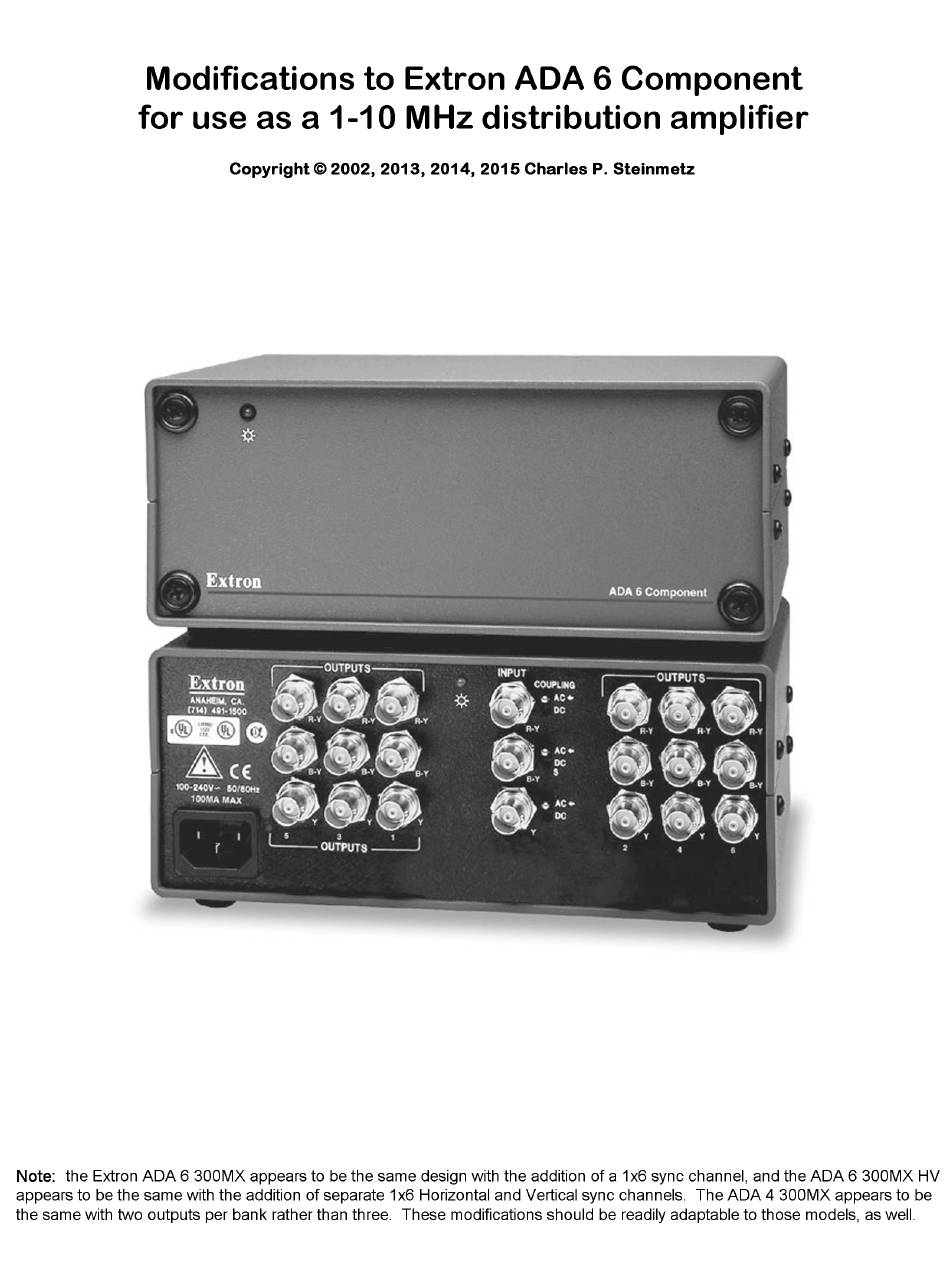

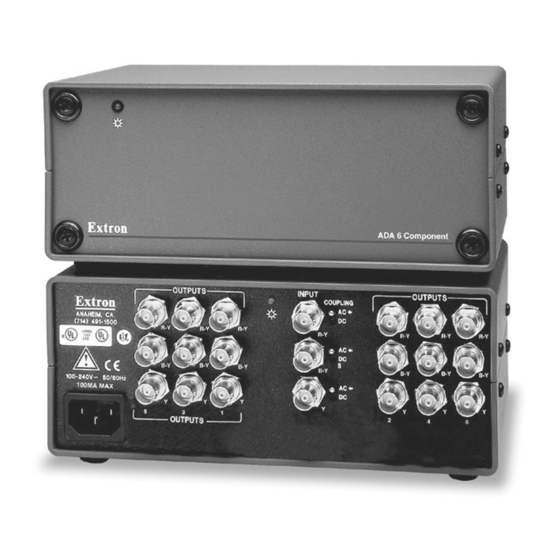

- Page 2 Modifications to Extron ADA 6 Component for use as a 50 Ω, 1/5/10 MHz distribution amplifier: Replace 3x 75 Ω input resistors with 50 Ω resistors (SMD 1206). On the ADA 6 Component PC board, these are R37-R39. NOTE: one may want to parallel two or all three inputs internally to give a 1x12 plus 1x6 or a 1x18 configuration.
