Extron electronics AVDA 6 MX DUAL User Manual

Specifications
Video Distribution Amplifiers:
Nominal Video Level ...... 1 Volt p-p
Level Range ...... 0.5 – 2 Volts p-p
Impedance ...... 75 Ohms
Bandwidth ...... 30 MHz (less than ±0.5dB)
Differential Gain ...... <0.1%
Differential Phase ...... <0.1 o
Audio Distribution Amplifiers:
Voltage Gain ...... Unity
Frequency Response ...... 20 Hz to 20 KHz
Input Impedance ...... High Z
Output Impedance ...... 50 Ohms (capable of driving 600 ohms)
All A/V DA Models:
Power Supply ...... 100-240 Volts internal switchable 50/60 Hz
Dimensions ...... 1.75"H x 9.5"D (4.45cm x 24.13cm D)
...... Half rack width = 8.72" W (22.15cm)
...... Full rack width = 17.46" W (44.35cm)
MTBF ...... 30,000 Hours
Warranty ...... Two Years, parts & labor
Connectors: CVDA Models ...... BNC
SVDA Model ...... S-video
SADA Models ...... Five conductor captive screw terminals
AVDA Model ...... BNC & 5-conductor captive screw terminals
SVDA 6A Model ...... S-video & 5-conductor captive screw terminals
Part Numbers
AVDA 6 MX ...... 60-201-01
AVDA 6 MX DUAL ...... 60-201-02
CVDA 6 MX ...... 60-202-01
CVDA 6 MX DUAL ...... 60-202-02
CVDA 6 MX QUAD ...... 60-202-03
SADA 6 MX ...... 60-203-01
SADA 6 MX DUAL ...... 60-203-02
SADA 6 MX QUAD ...... 60-203-03
SVDA 6 MX ...... 60-204-01
SVDA 6A MX ...... 60-353-01
S-VHS – BNC Adapter ...... 26-353-01
Captive Screw Audio Connector ..... 10-319-10

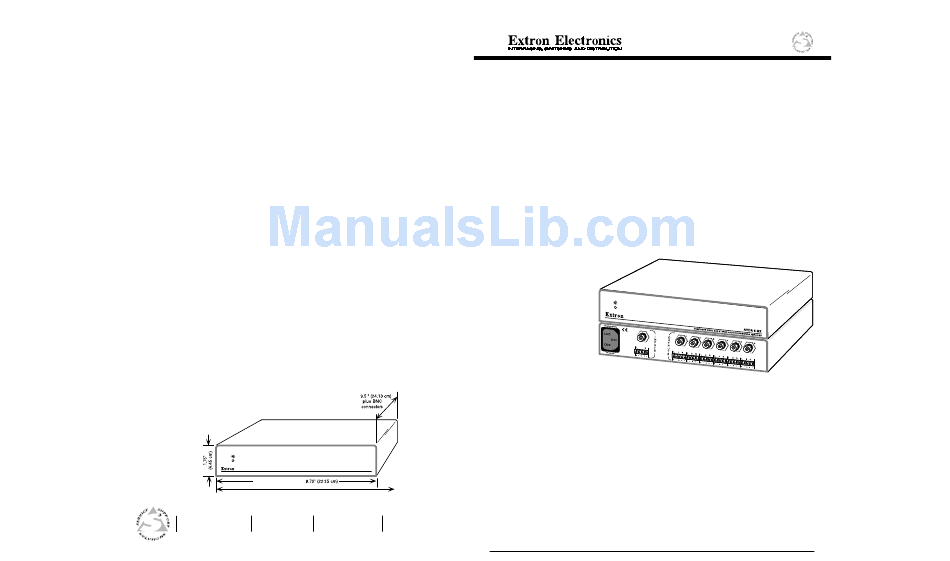

COMPOSITE VIDEO AND STEREO AUDIO DISTRIBUTION AMPLIFIER
Half Rack Width Case =
Extron Electronics, USA Extron Electronics, Europe Extron Electronics, Asia
Beeldschermweg 6C, 3821 AH Amersfoort 135 Joo Seng Rd. #04-01, PM Industrial Bldg.
1230 South Lewis Street, Anaheim, CA 92805
800.633.9876 714.491.1500 FAX 714.491.1517 +31.33.453.4040 FAX +31.33.453.4050 +65.383.4400 FAX +65.383.4664
USA The Netherlands Singapore 368363

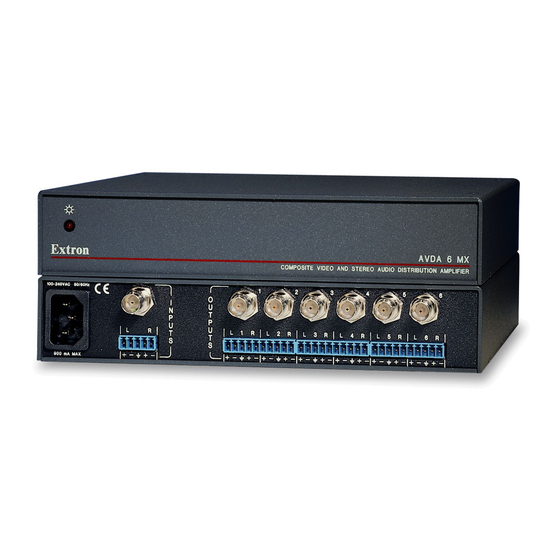

AVDA 6 MX
Full Rack Width
Case = 17.46"
(44.35cm)
Extron Electronics Information
07-00
ExtronWEB ™ : www.extron.com
68-287-01
ExtronFAX ™ : 714.491.0192
Rev. B
24-hour access—worldwide!
User's Guide
Audio/Video
Distribution
Amplifiers
AVDA 6 MX
AVDA 6 MX DUAL
CVDA 6 MX
CVDA 6 MX DUAL
CVDA 6 MX QUAD
SADA 6 MX
SADA 6 MX DUAL
SADA 6 MX QUAD
SVDA 6 MX
SVDA 6A MX
