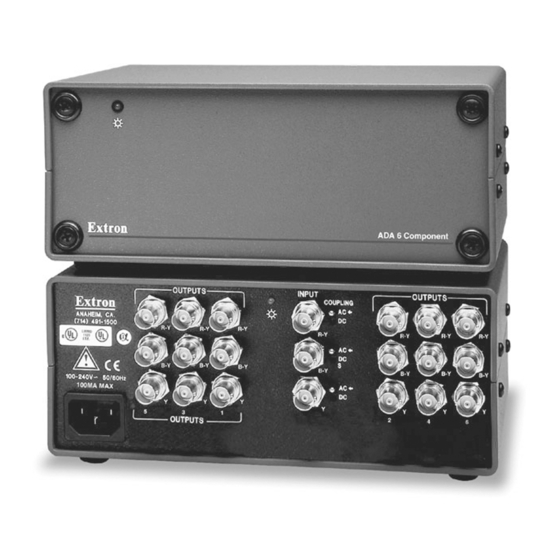

Extron electronics ADA 6 Component User Manual

Video output
Number/signal type ................... 6 RGsB, component video, S-video,
Connectors ................................... 6 x 3 BNC female
Minimum/maximum levels ....... 0.5V to 1.5V p-p
Impedance .................................... 75 ohms
Return loss .................................... -44dB @ 5 MHz
DC offset ....................................... ±13mV maximum with input at 0 offset
General
Power ............................................ 100VAC to 240VAC, 50/60 Hz, 20 watts,
Temperature/humidity .............. Storage -40° to +158°F (-40° to +70°C) /
Rack mount .................................. Yes, with optional shelf # 60-030-01 (2U) or
Enclosure type .............................. Metal
Enclosure dimensions ................. 3.4" H x 8.5" W x 6.3" D (2U high, 1/2 rack
Product weight ............................. 3.6 lbs (1.6 kg)
Shipping weight ........................... 5 lbs (2.3 kg)
Vibration ....................................... ISTA/NSTA 1A in carton (International
Approvals ..................................... UL, CUL
Compliances ................................. CE, FCC Class A
MTBF ............................................. 30,000 hours
Warranty ....................................... 3 years parts and labor
Part Numbers
ADA 6 Component ..................... 60-310-01
BNC 75-ohm termination plug .. 20-300-01
Specifications are subject to change without notice.
Extron Electronics, USA Extron Electronics, Europe
1230 South Lewis Street Beeldschermweg 6C
Anaheim, CA 92805 3821 AH Amersfoort
USA The Netherlands
714.491.1500 +31.33.453.4040
www.extron.com
Fax 714.491.1517 Fax +31.33.453.4050
composite video
internal, auto-switchable
10% to 90%, non-condensing
Operating +32° to +122°F (0° to +50°C) /
10% to 90%, non-condensing
front panel #60-126-01 (3U)
width)
8.6 cm H x 20.3 cm W x 16.0 cm D
Safe Transit Association)
Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Road, #04-01 Daisan DMJ Building 6F
PM Industrial Building 3-9-1 Kudan Minami
Singapore 368363 Chiyoda-ku, Tokyo 102-0074 Japan
+65.6383.4400 +81.3.3511.7655
Fax +65.6383.4664 Fax +81.3.3511.7656
User's Guide
Component/HDTV Distribution Amplifier
ADA 6 Component
68-462-01 Rev. B
Printed in the USA
02 02
