Preparing the Table

Extron recommends cutting the hole in the table with the Extron metal routing template (see
"Routing Template Part
NOTE: The hole can be also cut with a CNC wood router or a paper cut-out template
ATTENTION: Potential damage to property.

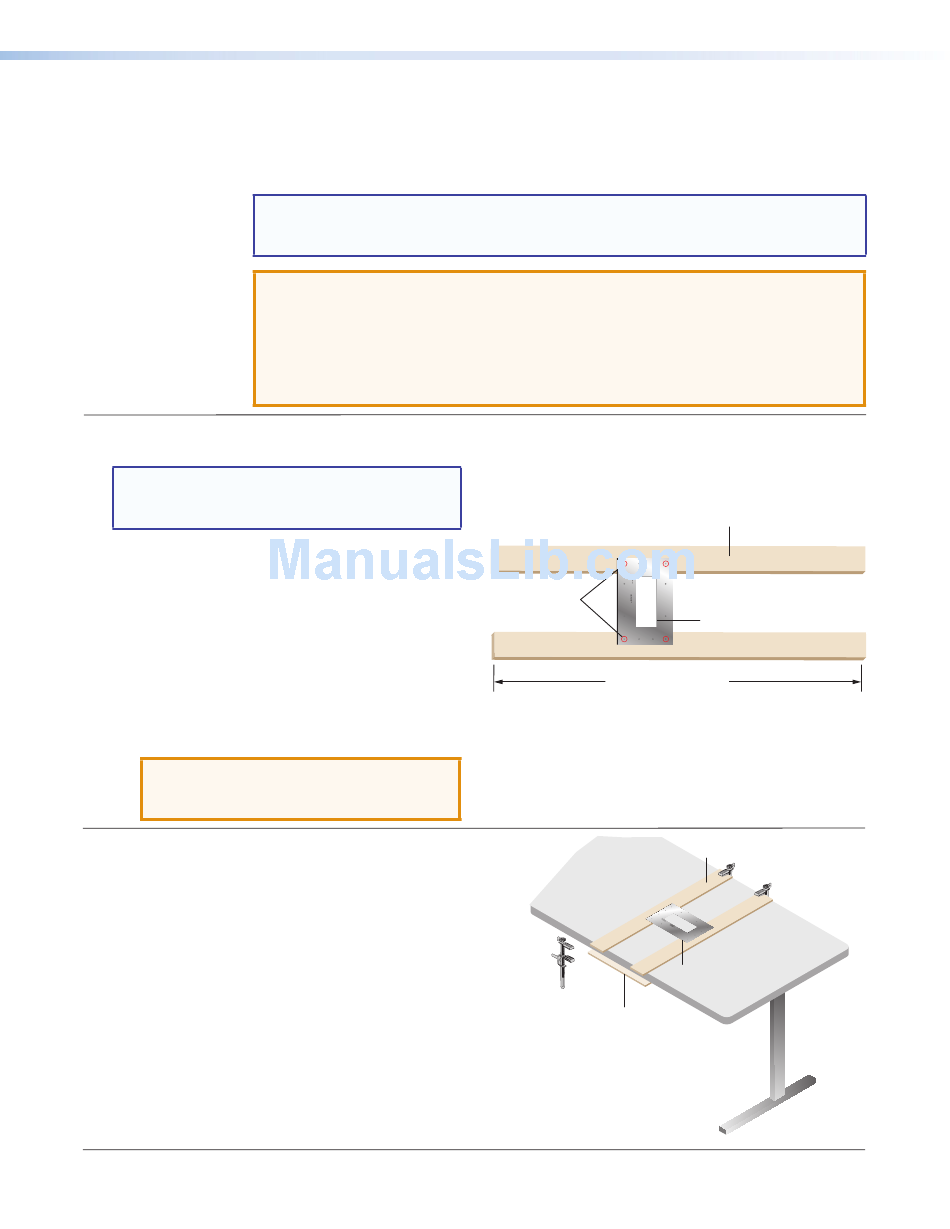

1. Prepare the Routing Template

NOTE: Save and reuse the metal routing
template for installing additional Cable
Cubby 200 models.
a. Cut 1/2 inch x 4 inch strips of soft, finished
lumber to a length that is long enough to span
the edges of the mounting surface.
b. Place the template over the strips so that the
opening reaches the desired mounting location
and the strips span the surface.
c. Using at least four mounting screws, secure the
mounting template to the lumber so that the
cut-out coincides with the desired orientation of
the enclosure.
ATTENTION: Potential damage to
property. Protruding screws
will scratch the table.

2. Prepare the Table with a Router

a. Mark the desired mounting location on the
tabletop. Ensure the enclosure will face the
desired direction.
b. Place the mounting template assembly on the
mounting surface with the lumber strips against
the table surface and centered on the marked
location. If necessary, use a square to ensure
that the template is properly positioned. Extron
is not responsible for improperly positioned
Cable Cubby models.
c. Secure the assembly to the table with
C-clamps. Use an additional lumber strip
underneath the tabletop to buffer it from the
C-clamps.
Numbers" on page 11 for part numbers).
(available on the Extron website, www.extron.com), but these methods are not
recommended.
Exercise care to prevent scarring or damaging the furniture.
•
• The opening in the table should be cut only by licensed and bonded
craftspeople.
The routing templates for various Cable Cubby models are not
•
interchangeable. Using the wrong template will produce an improper fit.
4 Screws Min.
Width of Mounting Surface
Clamps (4)
Routing Template
Sandwich Table
Between Soft Lumber
Cable Cubby 200 • Installation
1/2" x 4" Soft, Finished
Lumber
Routing Area
1/2" x 4" Soft, Finished
Lumber
