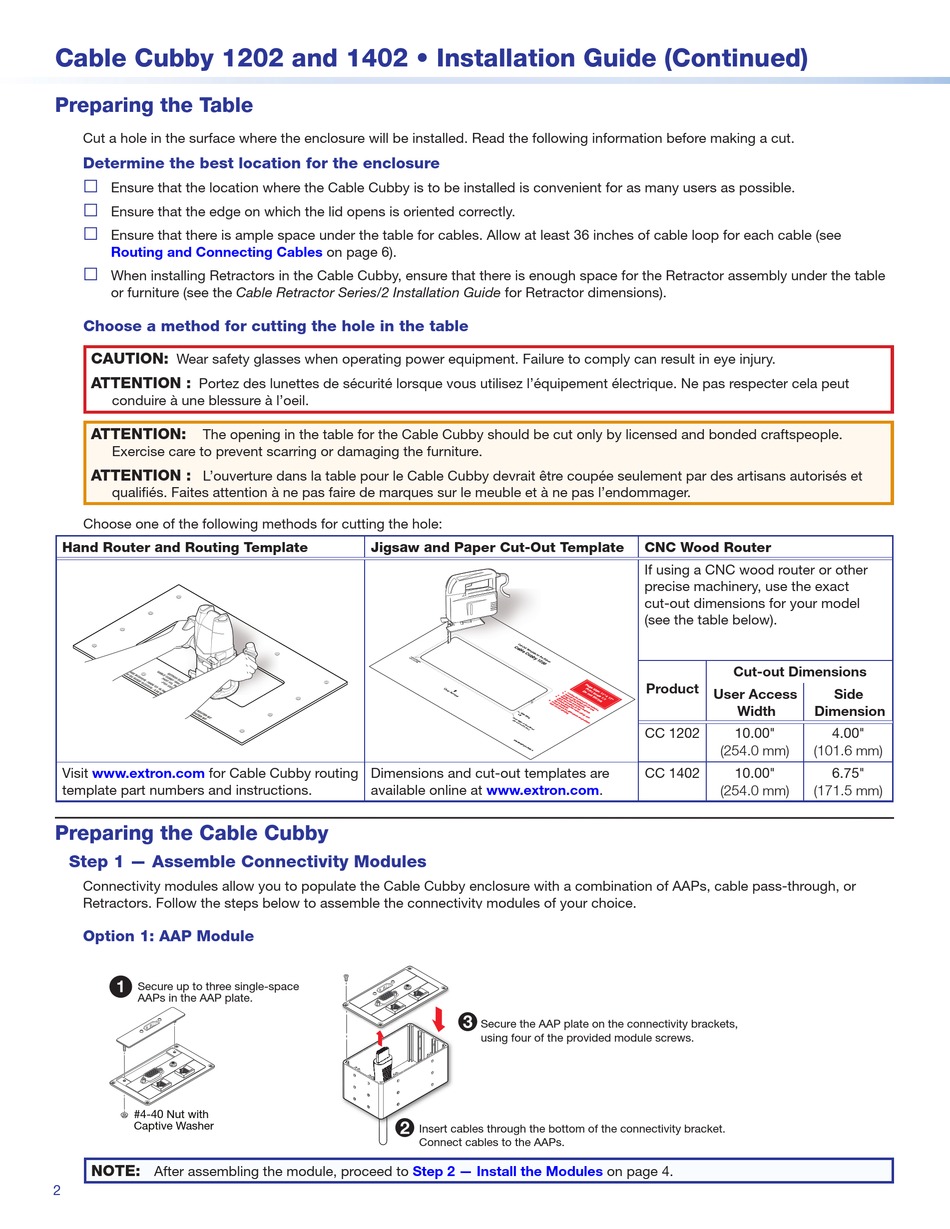

Cable Cubby 1202 and 1402 • Installation Guide (Continued)

Preparing the Table

Cut a hole in the surface where the enclosure will be installed. Read the following information before making a cut.
Determine the best location for the enclosure
…
Ensure that the location where the Cable Cubby is to be installed is convenient for as many users as possible.
…
Ensure that the edge on which the lid opens is oriented correctly.
…
Ensure that there is ample space under the table for cables. Allow at least 36 inches of cable loop for each cable (see
Routing and Connecting Cables
…
When installing Retractors in the Cable Cubby, ensure that there is enough space for the Retractor assembly under the table
or furniture (see the Cable Retractor Series/2 Installation Guide for Retractor dimensions).
Choose a method for cutting the hole in the table
CAUTION:
Wear safety glasses when operating power equipment. Failure to comply can result in eye injury.
ATTENTION :
Portez des lunettes de sécurité lorsque vous utilisez l'équipement électrique. Ne pas respecter cela peut
conduire à une blessure à l'oeil.
ATTENTION:
The opening in the table for the Cable Cubby should be cut only by licensed and bonded craftspeople.
Exercise care to prevent scarring or damaging the furniture.
ATTENTION :
L'ouverture dans la table pour le Cable Cubby devrait être coupée seulement par des artisans autorisés et
qualifiés. Faites attention à ne pas faire de marques sur le meuble et à ne pas l'endommager.
Choose one of the following methods for cutting the hole:
Hand Router and Routing Template
www.extron.com
Visit for Cable Cubby routing
template part numbers and instructions.
Preparing the Cable Cubby
Step 1 — Assemble Connectivity Modules
Connectivity modules allow you to populate the Cable Cubby enclosure with a combination of AAPs, cable pass-through, or
Retractors. Follow the steps below to assemble the connectivity modules of your choice.
Option 1: AAP Module
1
Secure up to three single-space
AAPs in the AAP plate.
#4-40 Nut with
Captive Washer
NOTE:
After assembling the module, proceed to
2
on page 6).
Jigsaw and Paper Cut-Out Template
Dimensions and cut-out templates are
available online at www.extron.com.
ace
3 3
2
Insert cables through the bottom of the connectivity bracket.
Connect cables to the AAPs.
Step 2 — Install the Modules
CNC Wood Router
If using a CNC wood router or other
precise machinery, use the exact
cut-out dimensions for your model
(see the table below).
Product
CC 1202
CC 1402
Secu Secure the AAP plate on the connectivity brackets,
using using four of the provided module screws.
on page 4.
Cut-out Dimensions
User Access Side
Width Dimension
10.00" 4.00"
(254.0 mm) (101.6 mm)
10.00" 6.75"
(254.0 mm) (171.5 mm)
