Cable Cubby 500 and 700 • Installation Guide (Continued)

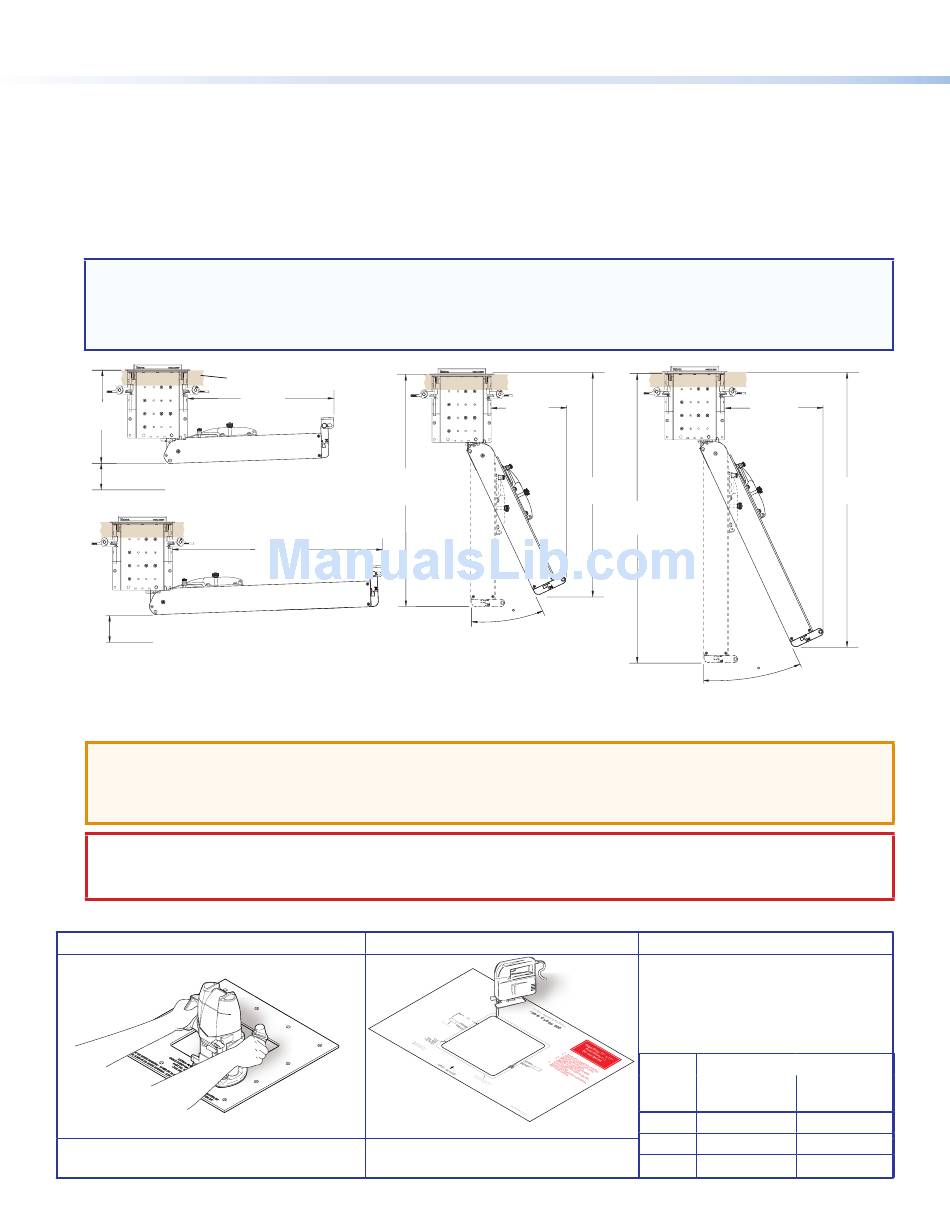

Preparing the Table

Cut a hole in the surface where the enclosure will be installed. Read the following information before making a cut.
Determine the best location for the enclosure.
…
Ensure that the location where the Cable Cubby is to be installed is convenient for as many users as possible.
…
Ensure that the edge on which the lid opens is oriented correctly.
…
Ensure that there is ample space under the table for cables.
…
When installing Retractors in the Cable Cubby, ensure that there is enough space for the Retractor assembly under the table
or furniture (see dimensions for the Retractors below).
NOTES:
•
To prevent objects from impeding cable retraction, allow at least 3 inches of clearance from the exposed cable side of
the enclosure (see the diagrams below).
•
Excess cabling may cause clearance issues. Use zip ties to secure under-table cabling to prevent accidental contact or
entanglement (see
Table Top
9.0"
(22.9 cm)
3.0"
(7.6 cm)
Series/2
3.0"
(7.6 cm)
Series/2 XL
Choose a method for cutting the hole in the table.
ATTENTION:
The opening in the table for the Cable Cubby should be cut only by licensed and bonded craftspeople.
Exercise care to prevent scarring or damaging the furniture.
ATTENTION :
L'ouverture dans la table pour le Cable Cubby devrait être coupée seulement par des artisans autorisés et
qualifiés. Faites attention à ne pas faire de marques sur le meuble et à ne pas l'endommager.
CAUTION:
Wear safety glasses when operating power equipment. Failure to comply can result in eye injury.
ATTENTION :
Portez des lunettes de sécurité lorsque vous utilisez l'équipement électrique. Ne pas respecter cela peut
conduire à une blessure à l'oeil.
Choose one of the following methods for cutting the hole:
Hand Router and Routing Template
Visit www.extron.com for Cable Cubby routing
template part numbers and instructions.
2
Routing and Connecting Cables
15.2"
(38.6 cm)
23.3"
(59.2 cm)
21.2"
(53.8 cm)
Jigsaw and Paper Cut-Out Template
Dimensions and cut-out templates are
available online at www.extron.com.
on page 6).
8.8"
(22.4 cm)
21.7"
(55.0 cm)
29.3"
(74.4 cm)
30
Series/2
CNC Wood Router
If using a CNC wood router or other
Jigsaw
precise machinery, use the exact
cut-out dimensions for your model
(see the table below).
Cable
Cubby
Model
500
700
500 CCB 5.75" (14.6 cm) 7.125" (18.1 cm)
11.8"
(30.0 cm)
26.9"
(68.3 cm)
30
Series/2 XL
Cut-out Dimensions
User Access Side
Width Dimension
5.75" (14.6 cm) 5.75" (14.6 cm)
7.125" (18.1 cm) 5.75" (14.6 cm)
