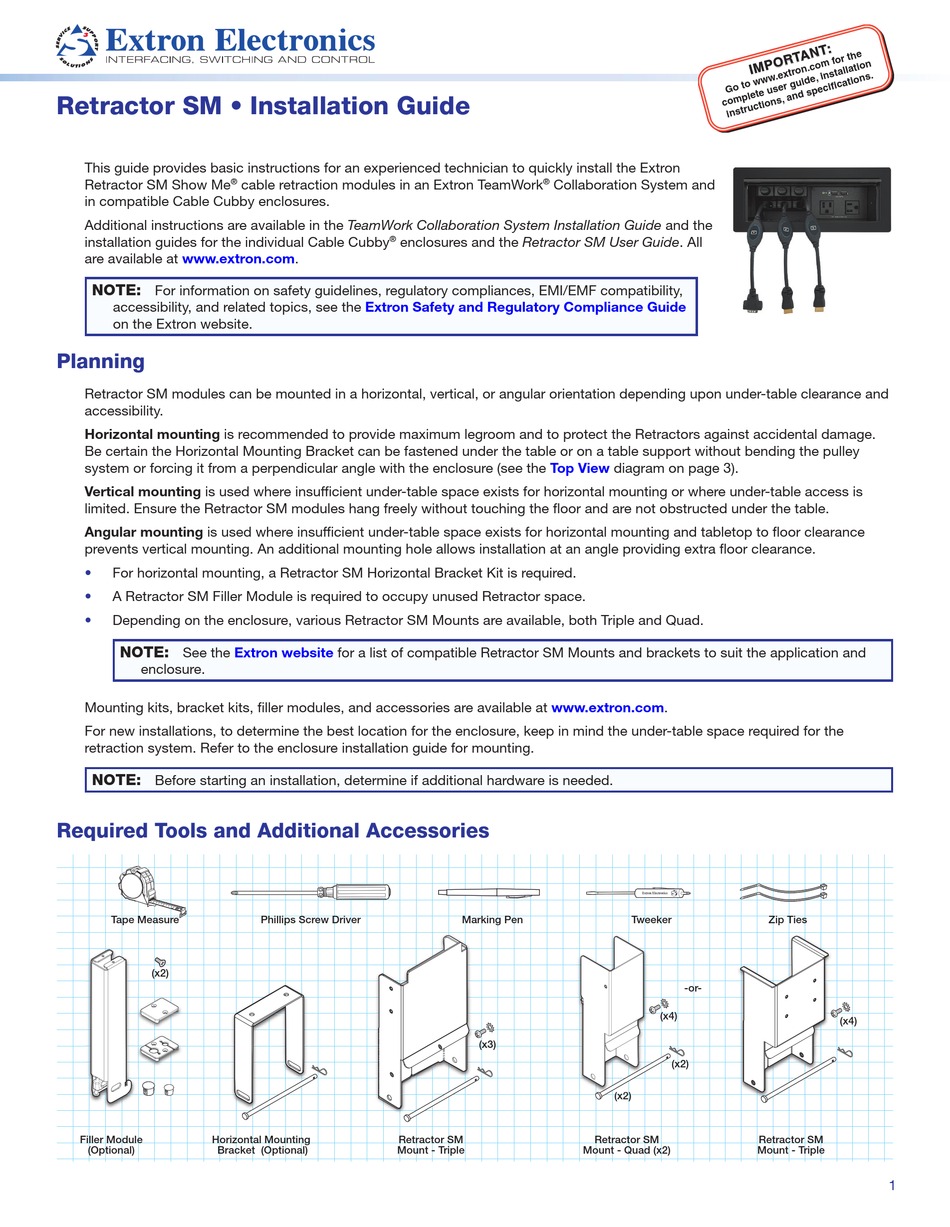

Retractor SM • Installation Guide
This guide provides basic instructions for an experienced technician to quickly install the Extron
Retractor SM Show Me
®
in compatible Cable Cubby enclosures.
Additional instructions are available in the TeamWork Collaboration System Installation Guide and the
installation guides for the individual Cable Cubby
are available at www.extron.com.
NOTE:
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility,
accessibility, and related topics, see the
on the Extron website.
Planning
Retractor SM modules can be mounted in a horizontal, vertical, or angular orientation depending upon under‑table clearance and
accessibility.
Horizontal mounting is recommended to provide maximum legroom and to protect the Retractors against accidental damage.
Be certain the Horizontal Mounting Bracket can be fastened under the table or on a table support without bending the pulley
system or forcing it from a perpendicular angle with the enclosure (see the
Vertical mounting is used where insufficient under‑table space exists for horizontal mounting or where under‑table access is
limited. Ensure the Retractor SM modules hang freely without touching the floor and are not obstructed under the table.
Angular mounting is used where insufficient under‑table space exists for horizontal mounting and tabletop to floor clearance
prevents vertical mounting. An additional mounting hole allows installation at an angle providing extra floor clearance.
For horizontal mounting, a Retractor SM Horizontal Bracket Kit is required.
A Retractor SM Filler Module is required to occupy unused Retractor space.
Depending on the enclosure, various Retractor SM Mounts are available, both Triple and Quad.
NOTE:
See the
Extron website
enclosure.
Mounting kits, bracket kits, filler modules, and accessories are available at www.extron.com.
For new installations, to determine the best location for the enclosure, keep in mind the under‑table space required for the
retraction system. Refer to the enclosure installation guide for mounting.
NOTE:
Before starting an installation, determine if additional hardware is needed.
Required Tools and Additional Accessories
Tape Measure
(x2)
Filler Module
Horizontal Mounting
(Optional)
Bracket (Optional)
Cable Cubby 500 and Cable Cubby 700
cable retraction modules in an Extron TeamWork
enclosures and the Retractor SM User Guide. All
®
Extron Safety and Regulatory Compliance Guide
for a list of compatible Retractor SM Mounts and brackets to suit the application and
Phillips Screw Driver
Retractor SM
Mount - Triple
Collaboration System and
®
Top View
diagram on page 3).
Marking Pen
Tweeker
(x3)
( 2) )
(x2)
Retractor SM
Mount - Quad (x2)
Cable Cubby 1200 and Cable Cubby 1400
Zip Ties
-or-
(x4)
(x4)
(x2)
Retractor SM
Mount - Triple
1
