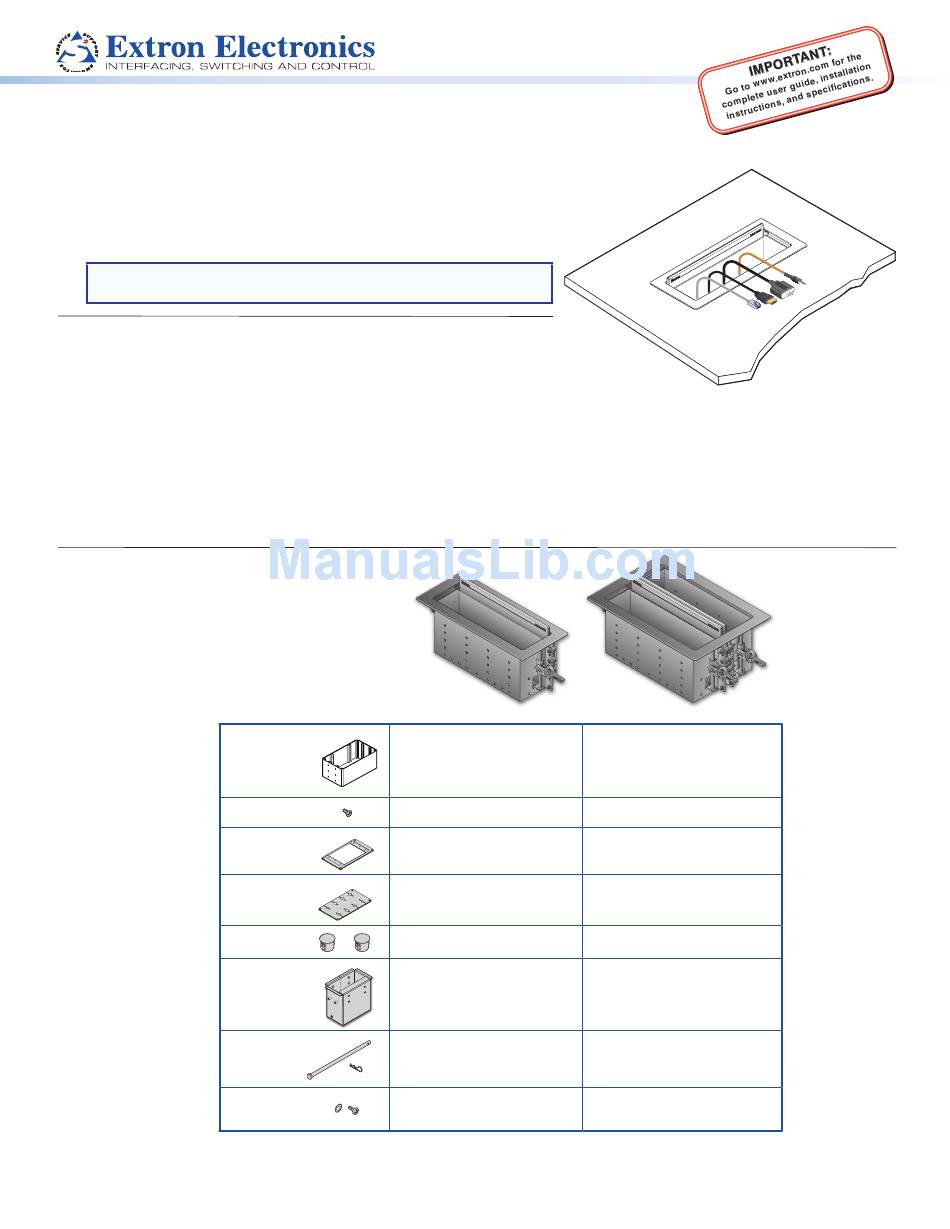

Cable Cubby 1202 and 1402 • Installation Guide
This guide provides instructions for an experienced technician to install and connect the
Extron Cable Cubby 1202 and 1402.
The Cable Cubby units are furniture-mounted enclosures for cable access, connections,
and AC power. Cables that are not in use can be stored out of the way while
remaining connected to the presentation system.
NOTE:
This product is intended for use only with Extron UL listed
power modules (not included).
Planning
Check with local and state regulations before starting the
installation
…
Ensure that the planned installation complies with national and local building and electrical codes.
…
Ensure that the planned installation complies with the Americans with Disabilities Act or other accessibility requirements.
Check all parts and equipment before installation
…
Ensure that all parts are present in each kit.
…
Ensure that necessary tools and equipment are available for the installation.
Kit Contents
Connectivity
Bracket
#4-40 Module Screws
AAP Frame Plate
Cable Grommet
Plate
Hole Plugs
Retractor
Bracket
Retractor
Pin & Clip
#6 Pan-head
Mounting Screws
and Star Washers
Cable Cubby 1202
Connectivity Bracket
#4-40 Module Screws
AAP Frame Plate
Cable Grommet Plate
6 (3/8"), 2 (1/4")
Hole Plugs
Retractor Pin & Clip
#6 Pan-head Mounting
Screws and Star Washers
Cable Cubby 1402
1
4
1
1
12 (3/8"), 4 (1/4")
1
1
8
2
8
2
2
2
2
16
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Extron electronics Cable Cubby 1202
Summary of Contents for Extron electronics Cable Cubby 1202
- Page 1 Cable Cubby 1202 and 1402 • Installation Guide This guide provides instructions for an experienced technician to install and connect the Extron Cable Cubby 1202 and 1402. The Cable Cubby units are furniture-mounted enclosures for cable access, connections, and AC power. Cables that are not in use can be stored out of the way while remaining connected to the presentation system.
-
Page 2: Preparing The Table
Cable Cubby 1202 and 1402 • Installation Guide (Continued) Preparing the Table Cut a hole in the surface where the enclosure will be installed. Read the following information before making a cut. Determine the best location for the enclosure …... - Page 3 6. Option 3a Option 3b Use this option for the Cable Cubby 1202, and for vertical Use this option for horizontal Retractor mounting in a or angular Retractor mounting in a Cable Cubby 1402. Cable Cubby 1402 only.
-
Page 4: Step 2 - Install The Modules
Cable Cubby 1202 and 1402 • Installation Guide (Continued) Step 2 — Install the Modules Determine where the connectivity modules and power module will be installed in the Cable Cubby. The modules may be installed on the left or right side of the enclosure and at various heights. -
Page 5: Horizontal Mounting
Step 2 — Under the table, adjust the side clamps on the enclosure NOTE: To lower the side clamp, turn the lever down, then press and hold the locking plate while sliding down the clamp. Lever Locking Plate Slide the clamp all the Rotate the side clamp Ensure the Cable Cubby way up against the bottom... -
Page 6: Installation Checklist
Mount the Cable Cubby flush with the table † Installing Retractors (page 5) Routing and Connecting Cables (page 6) 68-3105-01 Rev. A 07 17 © 2017 Extron Electronics All rights reserved. All trademarks mentioned are the property of their respective owners. www.extron.com...
