Cable Cubby 1202 and 1402 • Installation Guide
This guide provides instructions for an experienced technician to install and connect the
Extron Cable Cubby 1202 and 1402.
The Cable Cubby units are furniture-mounted enclosures for cable access,
connections, and AC power. Cables that are not in use can be stored out of the
way while remaining connected to the presentation system.
NOTE: This product is intended for use only with Extron UL listed
power modules (not included).
Planning
Check with local and state regulations before starting the installation
…
Ensure that the planned installation complies with national and local building and electrical codes.
…
Ensure that the planned installation complies with the Americans with Disabilities Act or other accessibility requirements.
Check all parts and equipment before installation
…
Ensure that all parts are present in each kit.
…
Ensure that necessary tools and equipment are available for the installation.

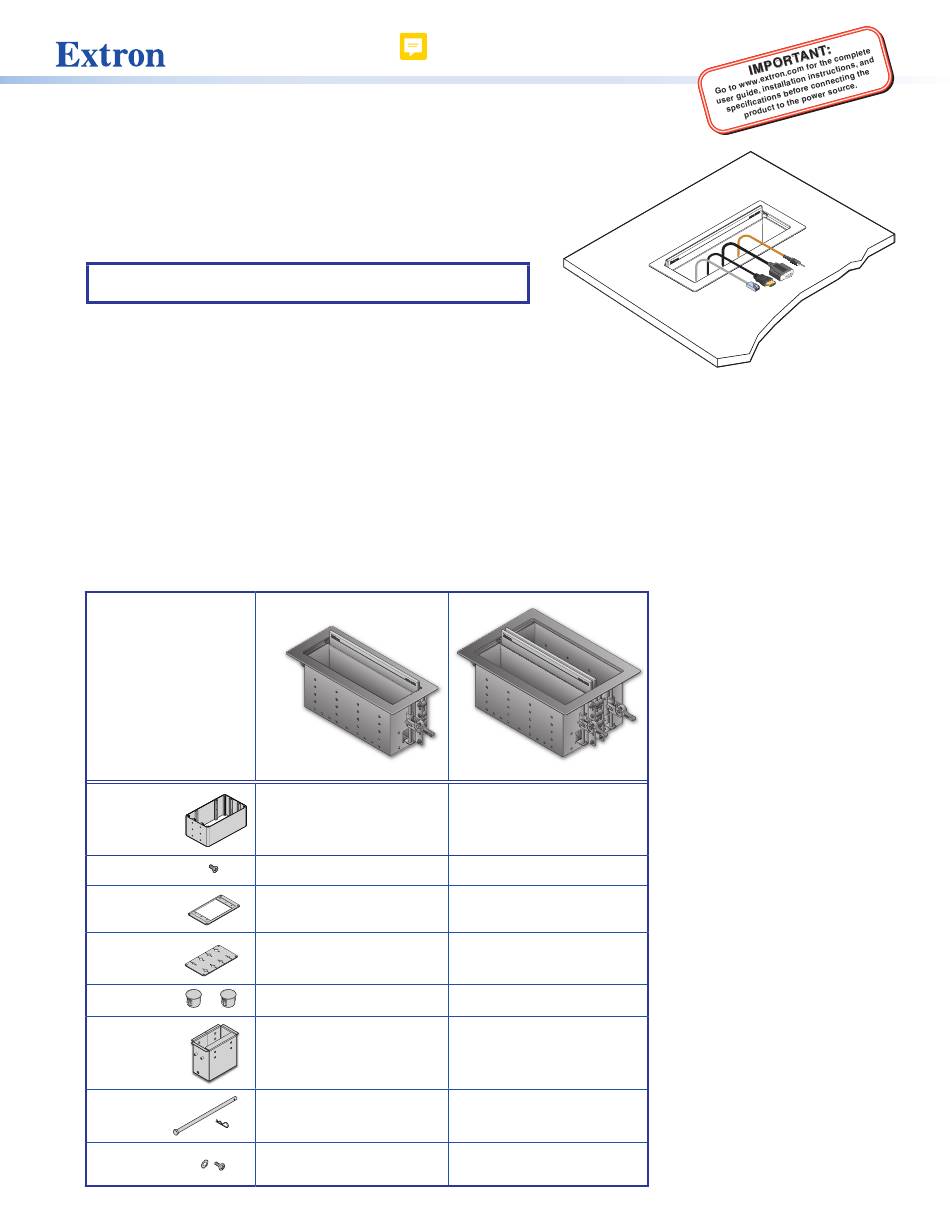

Kit Contents
Connectivity
Bracket
#4-40 Module Screws
#4-40 Module Screws
AAP Frame Plate
AAP Frame Plate
Cable Grommet
Plate
Cable Grommet Plate
Hole Plugs
Hole Plugs
Retractor
Bracket
Retractor
Pin & Clip
Retractor Pin & Clip
#6-32 Mounting
Screws and Star
Washers
#6 Pan-head Mounting
Screws and Star Washers
Cable Cubby 1202
1
4
1
1
6 (3/8"), 2 (1/4")
1
1
8
Cable Cubby 1402
2
8
2
2
12 (3/8"), 4 (1/4")
2
2
16
1
