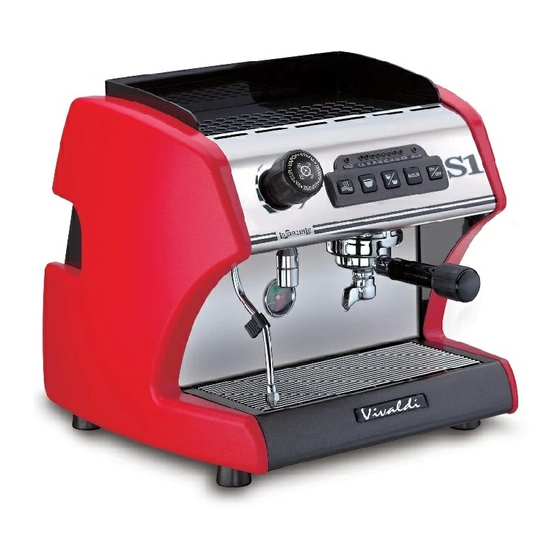

La Spaziale S1 Vivaldi Manual For Use And Maintenance

La Spaziale S1 Vivaldi Manual For Use And Maintenance

Coffee machine
Hide thumbs Also See for S1 Vivaldi:

Advertisement

Vivaldi
Vivaldi
Vivaldi
M A N U A L
F O R
U S E
A N D
M A I N T E N A N C E
L S C 0 0 8 R E V . 0 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1 Vivaldi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for La Spaziale S1 Vivaldi

  • Page 1 Vivaldi Vivaldi Vivaldi M A N U A L F O R U S E A N D M A I N T E N A N C E L S C 0 0 8 R E V . 0 1...
  • Page 2 MANUAL FOR USE AND MAINTENANCE LSC 008 REV. 01...
  • Page 3: Table Of Contents

    INDEX Chap. 1 GENERAL NOTES ....................... page 4 PLATES ..........................4 GENERAL WARNINGS ....................... 4 MACHINE OUTFIT ......................4 SAFETY RULES ........................5 INSTALLATION REQUIREMENT MADE BY THE USER ........... 6 Chap. 2 STARTING OF THE MACHINE ..................page 7 STARTING AND HEATING UP OF THE MACHINE ............
  • Page 4: General Notes

    GENERAL NOTES PLATES La Spaziale S.p.A. - MADE IN ITALY - ( UCIMAC ) via E. Duse, 8 40033 Casalecchio di Reno BOLOGNA N.F. 2003 Macchine per caffè espresso SERIE MOD. VOLT WATT IPX2 CALDAIA Lt. 0.15 MPa P.S. 0.6 MPa max The present booklet is integral part of the product and needs to be given to the final user.
  • Page 5: Safety Rules

    SAFETY RULES READ CAREFULLY THE FOLLOWING INSTRUCTIONS WHICH PROVIDE IMPORTANT INDICATIONS FOR THE SAFE USE AND MAINTENANCE OF THE APPLIANCE. This equipment must only be used for the purpose it was intended for and it must be installed in a suitable place for its use.
  • Page 6: Installation Requirement Made By The User

    INSTALLATION REQUIREMENTS MADE BY THE USER The machine needs to be placed on a stable surface which grants a safe position. Check this important requirement, since the manufacturer cannot be considered liable for any damage caused by the instability of the equipment. While prearranging the system, consider the hole on the bearing surface in order to carry out all electric and water connections through the opening below where, if recommended by the installer, the water softner needs to be placed.
  • Page 7: Starting Of The Machine

    STARTING OF THE MACHINE Follow the instructions below and refer to the components described at the end of this booklet. TURNING ON AND HEATING UP OF THE MACHINE Insert the plug into the socket of the electric system, the control light (22) starts flashing to show the connection to the electric main source (Stand-by).
  • Page 8: Coffee Brewing

    COFFEE BREWING Unfasten the filterholder (11) from the brewing group (10) and insert the filter for one or two cups. Fill it with ground coffee, (using the coffee doser provided) making sure not to leave coffee powder on the upper edge of the filterholder (11), and press it with the suitable coffee tamper provided. Firmly attach the filterholder (11) to the brewing group (10).
  • Page 9: Steam Delivery

    STEAM DELIVERY (only possible with the boiler turned on, light 13 turned on) Insert the steam wand (2) in the pitcher containing the drink to be heated up. Turn the steam knob (6) anticlockwise, regulating the steam flow according to need. At the end of the heating phase of the drink, stop the steam delivery by turning the steam knob (6) clockwise.
  • Page 10: Alarms Description

    ALARMS DESCRIPTION DAMAGED FLOWMETER This alarm indicates the malfunction of the flowmeter or a too fine coffee grinding. This is shown by the turning on of the lights 14-15-16 if you are making one coffee dose and of the lights 17-18-19 if you are making a two coffee dose.
  • Page 11: Chap. 4 Regular Maintenance Of The Equipment Made By The User

    REGULAR MAINTENANCE OF THE EQUIPMENT BY THE USER In order to grant the efficiency of the equipment and to maintain its proper operation, it is necessary to follow the manufacturer’s instructions carrying out a regular cleaning and maintenance program. WARNING The cleaning and ordinary maintenance operations, must be carried out by the user according to the following manufacturer’s instructions.
  • Page 12: Components

    COMPONENTS 14 15 16 17 18 19 20 21 MANUAL FOR USE AND MAINTENANCE LSC 008 REV. 01...
  • Page 13: List Of Components

    LIST OF COMPONENTS Drip Tray Steam Wand Foot Boiler pressure manometer (for steam and hot water production) Side Steam delivery knob Upper grid Cupguard Control panel Brewing group Filterholder Drip Tray grid Control Light indicating boiler status Control Light indicating water temperature for coffee 85°C Control Light indicating water temperature for coffee 90°C Control Light indicating water temperature for coffee 95°C Control Light indicating water temperature for coffee 100°C...
  • Page 14 MANUAL FOR USE AND MAINTENANCE LSC 008 REV. 01...
  • Page 15 03/04 Realized by STUDIO '80 Bologna - Italy MANUAL FOR USE AND MAINTENANCE LSC 008 REV. 01...
  • Page 16 La Spaziale S.p.A. Via E. Duse, 8 40033 Casalecchio di Reno Bologna - (Italy) Tel. +39 051 611.10.11 Fax +39 051 611.10.40 E-mail: info@laspaziale.com Web Site: www.laspaziale.com...
