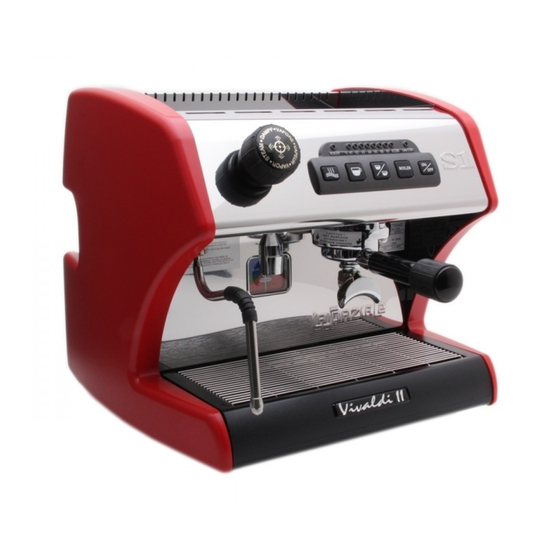

La Spaziale S1 Vivaldi II
Double Boiler Espresso Machine
Owner's Manual Rev D
(Covers VII's with and w/o Enhanced Temperature Offset and
Programmable Preinfusion)
Updated on 5/30/10 to clarify that Extreme Temp Mode setting are not "sticky"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1 Vivaldi II and is the answer not in the manual?

Questions and answers

Related Manuals for La Spaziale S1 Vivaldi II

Summary of Contents for La Spaziale S1 Vivaldi II

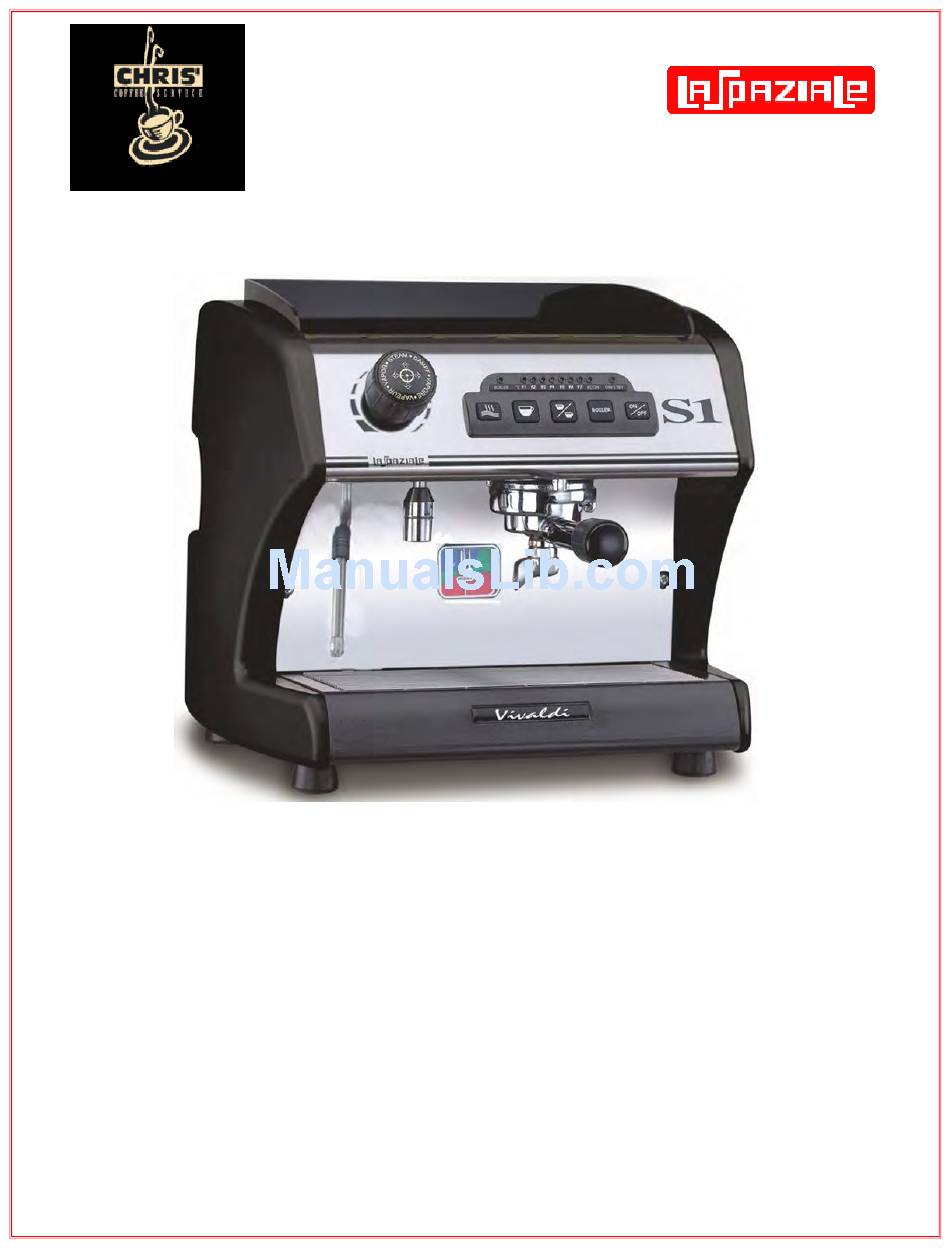

  • Page 1 La Spaziale S1 Vivaldi II Double Boiler Espresso Machine Owner’s Manual Rev D (Covers VII’s with and w/o Enhanced Temperature Offset and Programmable Preinfusion) Updated on 5/30/10 to clarify that Extreme Temp Mode setting are not “sticky”...

  • Page 2: Table Of Contents

    S1 Vivaldi II Owner’s Manual Table of Contents Feature Overview ..................... 1 Reference Photos ....................2 Document Scope – Caveats and Clarifications ............3 Basic Machine Operation ..................3 15A or 20 Amp Operation ................. 3 Initial Installation Before Connecting Power ............5 Turning On and Heating the Machine ...............

  • Page 3: Feature Overview

    S1 Vivaldi II Owner’s Manual 1 Feature Overview Dual Boiler  Steam Boiler 2.5 liter  Steam Boiler Element 1250 Watts  Group Boiler .45 liter  Group Boiler Element 800 Watts  Direct Plumbed  Rotary Pump  Volumetric Dosing Adjustable Through Touch Pad ...

  • Page 4: Reference Photos

    S1 Vivaldi II Owner’s Manual 2 Reference Photos These numbered photos will be referenced throughout the document; i.e. (13) FIGURE 1 – Indicator Lights and Control Buttons Page 2...

  • Page 5: Document Scope - Caveats And Clarifications

    3 Document Scope – Caveats and Clarifications This manual includes material that both duplicates and enhances the official LaSpaziale S1 Vivaldi II Instruction Manual in key areas. However, it does not duplicate the detailed and very important information covering machine certifications or ratings nor does it repeat all the warning and safety information contained on the “lawyer”...
  • Page 6 S1 Vivaldi II Owner’s Manual multiple kitchen outlets are on the one 20A circuit. Often this means the refrigerator outlet. 20A VII owners should contact their electrician if unsure how to proceed. The internal switch which places the VII in 15A mode does so by never allowing the group boiler and the steam boiler to operate at the same time.

  • Page 7: Initial Installation Before Connecting Power

    S1 Vivaldi II Owner’s Manual 4. From the front of the machine look down into the top of the machine. In the right rear of the machine you will see a toggle switch with its positions labeled 15 and 20. Reach down with the same screwdriver you used to remove the cup warming tray and flip the switch to the desired position.

  • Page 8: Turning On And Heating The Machine

    S1 Vivaldi II Owner’s Manual Tip the VII on its side. Twist all four rubber feet (3) hand tight as they may vibrate loose during shipping. While performing that task, use a screwdriver to ensure that the four screws on the bottom (two on each side between the rubber feet) which fasten the two side panels (5) to the chassis bottom are tight.

  • Page 9: Espresso Brewing

    S1 Vivaldi II Owner’s Manual 3) The light corresponding to the set temperature starts flashing to indicate that the group is heating and the automatic boiler refill starts until the water level preset by the manufacturer is reached. 4) Once the filling process is finished, the BOILER light (13) starts flashing to indicate that the boiler is heating.

  • Page 10: Hot Water Delivery

    S1 Vivaldi II Owner’s Manual suggestion. Many users only pull double shots and program the double shot button for 1.5-2.0oz for that purpose. Then they program the Single Cup button for a larger amount for use in flushing the portafilter basket and/or the group between shots. The beauty of the programmable dosing feature is that the machine owner can be creative.

  • Page 11: Economy / Boiler Operational Modes

    1. Turning the Steam boiler on and off 2. Entry and exit of Economy mode There are three possible operational modes of the two boilers in the La Spaziale VII 20A model: 1. Both boilers are completely independent, turning on and off according to the needs of each.

  • Page 12: V1/Vii Mode Switch

    S1 Vivaldi II Owner’s Manual 8. To exit Economy mode, press and hold the BOILER button for 10 seconds until the ECON lamp is extinguished. 4.9 V1/VII Mode Switch The VII Controller board actually has a backward compatible mode that emulates the functionality of the original VI.
  • Page 13 S1 Vivaldi II Owner’s Manual temperature indicated by the temperate lamps exactly matches the water temperature exiting the group. LaSpaziale has partially accounted for this in its basic design. However, there are too many machine to machine electrical and mechanical variances for this to be completely effective.
  • Page 14 S1 Vivaldi II Owner’s Manual See table below: Offset 91ºC 92ºC 93ºC 94ºC 95ºC 96ºC 97ºC ECON Lamp Lamp Lamp Lamp Lamp Lamp Lamp Lamp 0ºC -1ºC -2ºC -3ºC -4ºC -5ºC -6ºC -7ºC -8ºC 4.10.2.2 Extended Temperature Offset Adjustment Start with the machine in Standby mode (ON/STBY blinking green). Press and hold the...

  • Page 15: Extreme Temperature Set Function

    S1 Vivaldi II Owner’s Manual the offset was +3˚C. By pressing Double Cup the offset has changed to +2˚C. -8 -7 -6 -5 -4 -3 -2 -1 0 +1 +2 +3 +4 +5 +6 +7 +8 ˚C Offset ---------------------------------------------------------- Single Cup...

  • Page 16: Programmable Preinfusion

    S1 Vivaldi II Owner’s Manual Note that the method below only works if the master temperature is set to either 91ºC or 97ºC. If the temperature is set to 91ºC you can only use the instructions below to lower the temperature by 1ºC, 2ºC, or 3ºC. If the temperature is set to 97ºC you can only use the instructions below to raise the temperature by 1ºC, 2ºC,...

  • Page 17: Alarm Handling

    S1 Vivaldi II Owner’s Manual group water solenoid opens and when the pump is activation. This is the preinfusion time. If none of the lamps 14-21 are lit, the preinfusion time is 0 seconds which means BOILER no preinfusion. Each press of the...

  • Page 18: Steam Boiler Temperature Detection System Failure

    S1 Vivaldi II Owner’s Manual 5.3 Steam Boiler Temperature Detection System Failure (only with the boiler turned on) This is a blocking alarm and occurs when the temperature probe of the boiler is in short circuit (temperature >145°C) or it is in open circuit (disconnected) condition (temperature <60°C).

  • Page 19: Connection Diagrams

    S1 Vivaldi II Owner’s Manual 6 Connection Diagrams 6.1 Electrical Connection Diagram Page 17...

  • Page 20: Control Board Connection Diagram

    S1 Vivaldi II Owner’s Manual 6.2 Control Board Connection Diagram 6.3 Triac Board Connection Diagram BOILER TRIAC BD GROUP TRIAC BD (Cooling Fan is below this board and runs only when boiler is heating) Page 18...

  • Page 21: Control Panel Connection Diagram

    S1 Vivaldi II Owner’s Manual 6.4 Control Panel Connection Diagram 6.5 Wiring Diagram Definitions EV GR Coffee brewing group solenoid valve EV H Hot water delivery solenoid valve EV AL Automatic refill system solenoid valve Connection on control board of the triac that feeds the boiler heating element...

  • Page 22: Water Flow Diagram

    S1 Vivaldi II Owner’s Manual 7 VII Water Flow Diagram The information below is provided strictly as a reference for VII owners who are curious about the function of their VII Dual Boiler design. Page 20...

  • Page 23: Adjustments And Maintenance

    Using 1/3 tsp Cafiza, Joe Glo, or similar detergent every 2-4 weeks is plenty for home use. Backflush the S1 Vivaldi II more often with plain water. Place the backflush disk in the double basket with 1/3 tsp of Cafiza powder.
  • Page 24 S1 Vivaldi II Owner’s Manual you grind too fine and choke the machine. So the instant this condition is sensed is the ideal point at which to engage the 3-way valve.) Perform the above cycle 5 times waiting about 30 seconds between each cycle.

  • Page 25: Group Pressure Test And Adjustment

    S1 Vivaldi II Owner’s Manual 8.3 Group Pressure Test and Adjustment This adjustment and the one covered in the next section require that use of a Portafilter with the rubber disk or blind filter basket. (The same one used for back flushing.) For clarity the portafilter is not shown in the photo but it MUST be used.

  • Page 26: Expansion Valve Release Adjustment

    S1 Vivaldi II Owner’s Manual 8.4 Expansion Valve Release Adjustment This procedure starts by removing the chrome front panel as in the above procedure and also requires the portafilter with rubber disk or blind filter basket. 1. Adjust the group pressure to 12.5 bar per the following instructions: a) Loosen lock nut "A"...

  • Page 27: Optional Accessories

    S1 Vivaldi II Owner’s Manual 9 Optional Accessories These can be ordered and installation arranged at the time you order the V2. In addition, they can be ordered latter and self-installed if you are the handy with simple metric tools.
  • Page 28 S1 Vivaldi II Owner’s Manual Longer Steam Arm (Shown next to stock arm) Page 26...

  • Page 29: Other Laspaziale Vii Resources

    S1 Vivaldi II Owner’s Manual Optional “No Burn” Steam Arm (shown next to stock steam arm) 10 Other LaSpaziale VII Resources In addition to your VII supplier, current users are an excellent information resource: Check out these internet sites: http://www.home-barista.com –...

  • Page 30: Quick Setting Guide

    S1 Vivaldi II Owner’s Manual 11 Quick Setting Guide Page 28...
