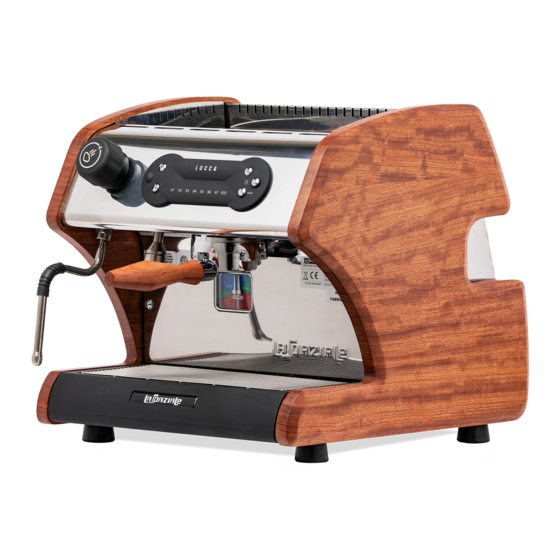

La Spaziale S1 VIVALDI LUCCA Manual For Use And Maintenance
  1. Manuals
  2. Brands
  3. La Spaziale Manuals
  4. Coffee Maker
  5. S1 VIVALDI LUCCA
  6. Manual for use and maintenance

La Spaziale S1 VIVALDI LUCCA Manual For Use And Maintenance

Hide thumbs
Table of Contents

Advertisement

Quick Links

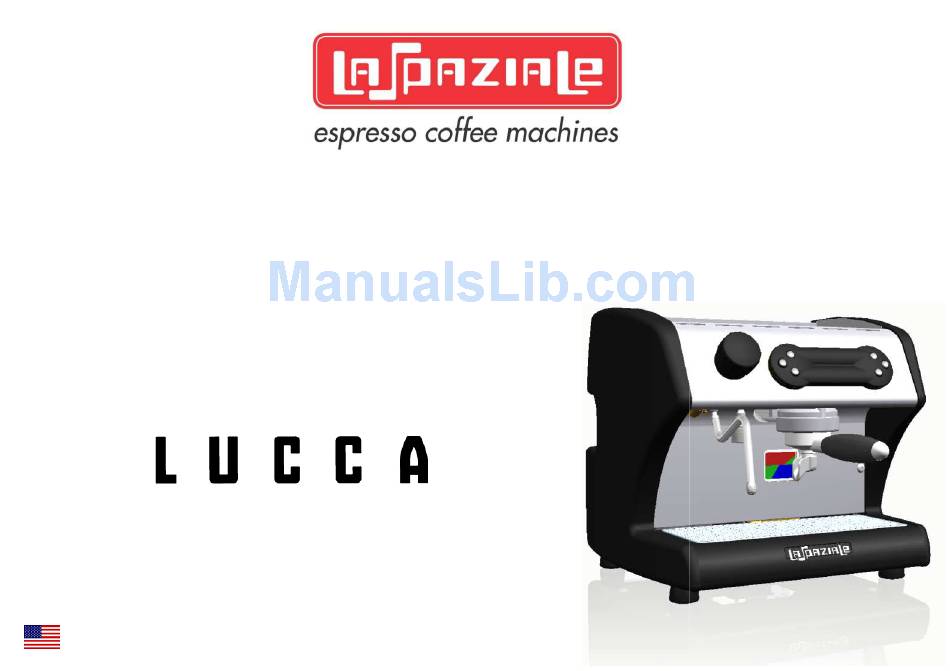

MANUAL FOR USE
AND MAINTENANCE
S1 VIVALDI
LSC 010 Rev 00 Ed. 07/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1 VIVALDI LUCCA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for La Spaziale S1 VIVALDI LUCCA

Summary of Contents for La Spaziale S1 VIVALDI LUCCA

  • Page 1 MANUAL FOR USE AND MAINTENANCE S1 VIVALDI LSC 010 Rev 00 Ed. 07/2014...

  • Page 2: Table Of Contents

    S1 VIVALDI INDEX 1. GENERAL DESCRIPTION OF THE MACHINE …………………………………………………………………….…………………………….…………………………………………………………………………………. 3 1.1 DESCRIPTION OF THE CONTROL PANEL……………………………………………………………………………………………………………………………………………………………………………………. 4 2. GENERAL ADVICE FOR THE INSTALLER………………………………………………………………………………………………………………………………………….……………………………………………….. 5 2.1 GENERAL WARNINGS…………………………………………………………………………………………………………………………………………………………………………………………………………………………….. 5 2.2 INSTALLATION REQUIREMENTS FOR THE USER……………………………………………………………………….……………………………………………………………………………………….…. 8 2.3 WARNING/TECHNICAL DATE LABELS AND NAMEPLATES APPLIED TO THE MACHINE………………………………………………………………………….…… 10 3.

  • Page 3: General Description Of The Machine

    S1 VIVALDI 1. GENERAL DESCRIPTION OF THE MACHINE LEGEND Top Grid 4. 1-Cup Portafilter 7. Water Drip Tray Steam Tap 5. Gauge 8. Steam Wand Control Panel 6. Drip Tray Grid 9. Hot Water spout...

  • Page 4: Description Of The Control Panel

    S1 VIVALDI 1.1 DESCRIPTION OF CONTROL PANEL LEGEND Single coffee button D. Stand-by light G. Boiler button logo E. On-off button H. Coffee group -temperature C. Hot Water Button F. Boiler light I. Double coffee button...

  • Page 5: General Advice For The Installer

    S1 VIVALDI 2. GENERAL ADVICE FOR THE INSTALLER Read carefully the instructions and warnings contained in this manual and in the “INSTRUCTION MANUAL FOR THE INSTALLER”, since they provide important indications concerning the installation of the appliance. ATTENTION! The electric system, water supply system, drainage system, MUST already be put in place by the customer in order to allow the proper installation of the machine.
  • Page 6 S1 VIVALDI The manufacturer cannot be held liable for any damage caused by improper, incorrect or unreasonable use. Installation must be carried out by qualified personnel according to current laws and to the manufacturer’s instructions. Incorrect installation may cause damage to people, animals or property for which the manufacturer cannot be held liable.
  • Page 7 S1 VIVALDI • Before carrying out any routine maintenance or cleaning operation, disconnect the appliance from the mains power and shut off the water supply tap. • In the event of damage and/or malfunction of the appliance, switch it off completely without trying to make any direct repairs.

  • Page 8: Installation Requirements For The User

    S1 VIVALDI 2.2 INSTALLATION REQUIREMENTS FOR THE USER The appliance must be placed on a flat and stable surface and a Legend surface height for the appliance of no less than 1.2 metres from 1 Single pole switch the ground. Check this important requirement, since the manufacturer with an opening of at cannot be considered liable for any damage caused by least 3 mm between...
  • Page 9 S1 VIVALDI • The drainpipe of the appliance must be directly connected to a suitable open drain siphon, previously installed by the customer (3 - Pict.3). Do not fit the drain pipe into basins or buckets placed under the counter as this will increase the possibility of forming dirt deposits and as a result, the spread of bacteria.

  • Page 10: Warning/Technical Date Labels And Nameplates Applied To The Machine

    S1 VIVALDI 2.3 WARNING/TECHNICAL DATE LABELS AND NAMEPLATES APPLIED TO THE MACHINE In the figure below are shown the warning/technical data labels and nameplates positioned on the machine. ATTENTION! Dedicate the time necessary to familiarise yourself with these labels. Ensure that they are readable and keep them clean or replace those that have deteriorated or illegible (both the text and the graphics).

  • Page 11: Removing The Packaging

    S1 VIVALDI 3. REMOVING THE PACKAGING After unpacking the machine, please check its integrity; in case of doubt, do not use it and consult the manufacturer. Packaging materials must not be left within children’s reach since they are potentially dangerous. ATTENTION! The appliance weight is more than 30 kg and therefore, it cannot be moved by a single person alone.

  • Page 12: Commissioning The Machine

    S1 VIVALDI 4. COMMISSIONING THE MACHINE Open the water supply valve as envisaged in the preparations for installation (See Pict. 3 on page 8 - Rif. 2). • Check for any water leaks from the hosing/connections. • Switch on the main breaker as envisaged in the preparations for installation (See Pict. 3 on page 8 - Rif. 1). •...

  • Page 13: Coffee Preparation

    S1 VIVALDI When the group has reached the set temperature the heating of the boiler starts (light boiler F • flashing), once it reaches the set the light becomes fixed. Every time the temperature of the group or of the boiler drops under the set, the relative led, indicating the operating temperature, starts flashing (heating phase) until the set temperature is reached.

  • Page 14: Pouring Hot Water For Preparing Infusions

    S1 VIVALDI If you want to stop in advance the delivery, which was started with one of the buttons with preset doses, it is enough to press the same button again. WARNING!!! While the machine is in operation, check frequently the filling level of the drip-tray (1) and, if necessary, proceed and empty it out.

  • Page 15: Economy Mode

    S1 VIVALDI 5.4 ECONOMY MODE This mode is meant for less frequent uses of steam and water for infusions, in fact priority is always given to the heating of the group for coffee delivery rather than to the heating of the boiler. In this way the two heating-elements are never fed at the same time, with a consequent remarkable power saving.

  • Page 16: Dose Counter (Optional)

    S1 VIVALDI 6. DOSE COUNTER (OPTIONAL) This additional module is meant to manage the appliance according to a pre-loaded quantity of coffee doses with the relevant visualization of the partial and total counters for the cups of coffee delivered and the consequent block of the machine.

  • Page 17: View Of Partial And Total Coffee Counters

    S1 VIVALDI 6.1 VIEW OF PARTIAL AND TOTAL COFFEE COUNTERS Pressing the button during normal operation, the display will show: .P.00286 .T.05963 P.00286 refers to the partial counter of cups of coffee delivered since the last reset (the partial number is the sum of 1-cup and 2-cup coffee delivered).
  • Page 18 S1 VIVALDI The letter N will flash; if the button is pressed to confirm the setting, the display will return to the previous information viewed; moving the buttons, will cause the letter Y to start to flash; pressing the button will reset the partial counter of the cups of coffee delivered and return to the previous screen and the display will then show: .P.00000...

  • Page 19: Clock/Timer Module (Optional)

    Plug the appliance into the mains power; this way even with the appliance on standby, the clock module (TIMER) will be powered and the display will show the logo «La Spaziale» for 3 seconds, followed by the software version and then the current time and date.

  • Page 20: Programming

    S1 VIVALDI If the timer is set, instead of the date it is possible to see the time that the appliance will next switch on if it is switched off ( ON 14:30 ), or the time that the appliance will next switch off if it is on ( OFF 21:30 ). TAKE NOTE!.

  • Page 21: Language Setting

    S1 VIVALDI SELECT CLOCK To set one of the three possible choices, stop at the required screen and press the button. 7.2 SETTING Confirming the “Select Clock” function with the button, it is possible to proceed to set the current date/time; the display will read: MONDAY The day of the week (Monday) will flash.
  • Page 22 S1 VIVALDI MONTHS JANUARY The month (January) will flash. Pressing the buttons will select the current month and the button will confirm the selection; at this point the display will read: The date ( 30 ) will flash. Pressing the buttons will select the current year and the button will confirm the selection;...

  • Page 23: On/Off Timer Setting

    S1 VIVALDI Pressing the buttons will select the current hour and the Obutton will confirm the selection; at this point the minutes (18) will start to flash; pressing the buttons will select the minutes and the button will confirm the selection; at this point the display will read: DAYLIGHT SAVING NO/YES The word YES will flash;...
  • Page 24 S1 VIVALDI the setting to switch the appliance on and off using the timer. If the buttons are pressed, this selects OFF (flashing) and confirming with the button means the appliance will not be controlled by the timer and switching on and off will be controlled manually.
  • Page 25 S1 VIVALDI Kbutton. The minutes (35) will automatically start to flash; press the buttons to select the minutes and then press the Obutton to confirm. The function automatically passes to set the switch off time and the word Mon 1°ON on the display will become Mon 1°...
  • Page 26 S1 VIVALDI The day (Tuesday) will flash. For the same time settings as the previous day, hold down the button for 3 seconds to copy all of the settings and the display will move to the next day. Repeat the operations until the day in which different timer settings are required.

  • Page 27: Alarms Descriptions

    S1 VIVALDI 8. ALARMS DESCRIPTIONS VOLUMETRIC DOSING SYSTEM FAULTY This alarm indicates the malfunction of the flowmeter or a too fine coffee grinding. This is shown by the turning on of the lights 85-90-95 if you are making one coffee dose and of the lights 100-105-110 if you are making a two coffee dose.
  • Page 28 S1 VIVALDI DAMAGED STATIC RELAY OF THE GROUP This alarm is a blocking one, and is visualized when the triak always remains in conduction (temperature above 140°C). The lights 120-ECO are flashing. If this alarm is visualized call the authorized assistance centre. DAMAGED STATIC RELAY OF THE BOILER (only with the boiler turned on) This alarm is a blocking one, and is visualized when the triak always remains in conduction (temperature...

  • Page 29: Regular Maintenance Of The Equipment By The User

    S1 VIVALDI 9. REGULAR MAINTENANCE OF THE EQUIPMENT BY THE USER In order to grant the efficiency of the equipment and to maintain its proper operation, it is necessary to follow the manufacturer’s instructions carrying out a regular cleaning and maintenance program. WARNING!.

  • Page 30: Every 3 Days

    S1 VIVALDI 9.2 EVERY 3 DAYS After turning off the machine, remove the shower-heads with the provided tool, brush them carefully, making sure that all the holes are clean. Then reassemble everything following the sequence shown below. A. Fastening screw B.

  • Page 31: Water Softner

    S1 VIVALDI 9.3 WATER SOFTENER If the installation of a water softener has been recommended by the installation engineer because of hard water and problems of scale deposits, it is necessary to follow the instructions of the water softener’s manufacturer (periodic regeneration). 9.4 BODYWORK Clean the bodywork of the appliance using mild detergent to prevent any damage.

  • Page 32: Technical Data

    S1 VIVALDI 10. TECHNICAL DATA DIMENSIONS AND WEIGHT POWER SUPPLY VOLT 415 mm 50/60 385 mm 2000 415 mm WEIGHT...
  • Page 33 S1 VIVALDI...
  • Page 34 S1 VIVALDI...
  • Page 35 La Spaziale S.p.A. Via E. Duse, 8 40033 Casalecchio di Reno Bologna - (Italy) TEL +39 051 611.10.11 FAX +39 051 611.10.40 ! info@laspaziale.com # www.laspaziale.com...
