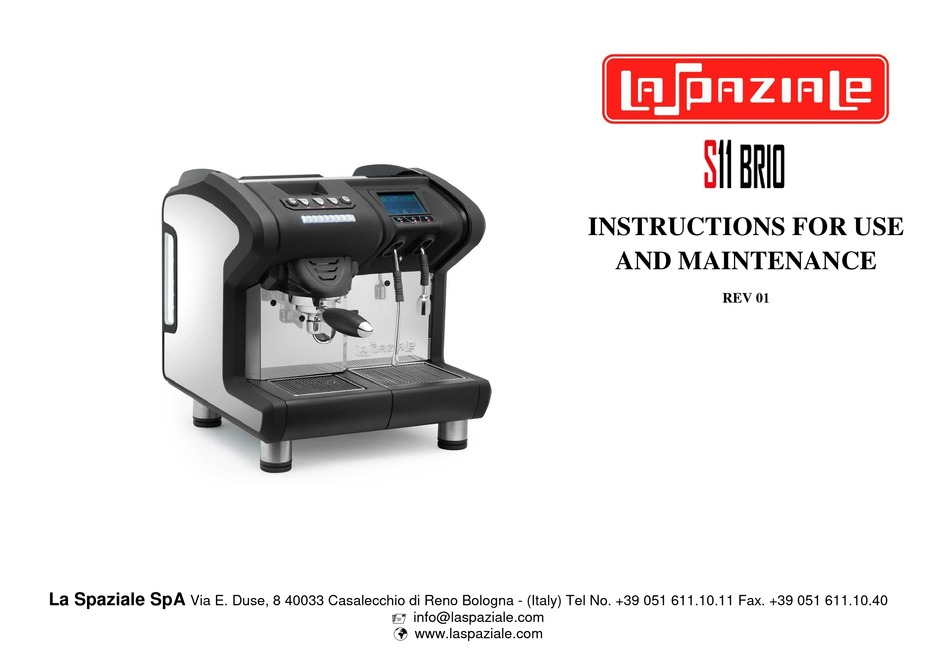

INSTRUCTIONS FOR USE
AND MAINTENANCE
REV 01
La Spaziale SpA
Via E. Duse, 8 40033 Casalecchio di Reno Bologna - (Italy) Tel No. +39 051 611.10.11 Fax. +39 051 611.10.40
info@laspaziale.com
 www.laspaziale.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S11 Brio and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for La Spaziale S11 Brio

Summary of Contents for La Spaziale S11 Brio

  • Page 1 INSTRUCTIONS FOR USE AND MAINTENANCE REV 01 La Spaziale SpA Via E. Duse, 8 40033 Casalecchio di Reno Bologna - (Italy) Tel No. +39 051 611.10.11 Fax. +39 051 611.10.40 info@laspaziale.com  www.laspaziale.com...
  • Page 2 WEEE Private disposal of equipment in the Territory of the European Union (WEEE) in compliance with the standards 2011/65/EU, 2011/19/EU and 2015/863/EU, regarding the reduced use of hazardous substances in electric and electronic equipment and waste disposal. The symbol consisting of a crossed-out wheelie bin affixed to the appliance or its packaging indicates that at the end of its useful life, the product must be collected separately from other waste.

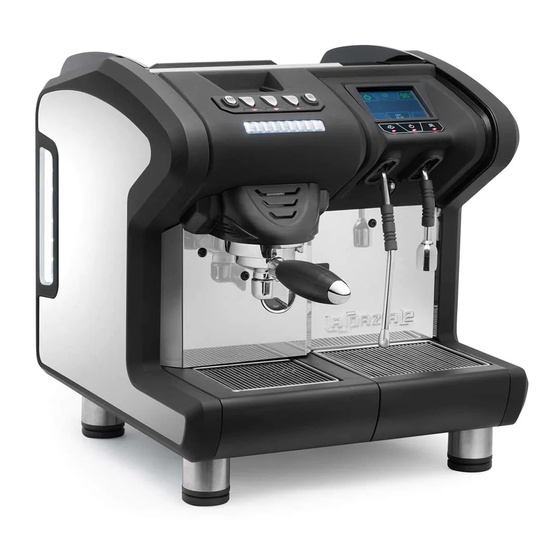

  • Page 3: General Description Of The Machine

    GENERAL DESCRIPTION OF THE MACHINE:...
  • Page 4 1) CUP HOLDER TRAY 2) DELIVERY GROUP PUSHBUTTON PANEL 3) DELIVERY GROUP LED STATUS BAR 4) COFFEE DELIVERY GROUP N. 1 5) DRIP TRAY COFFEE MODULE 6) PRESSURE MANOMETER GROUP 1 PUMP 7) HOT WATER SPOUT FOR INFUSIONS 8) DRIP TRAY WATER DELIVERIES 9) STEAM NOZZLE 10) USB CONNECTION 11) TFT MAIN DISPLAY TOUCHSCREEN...
  • Page 5 GENERAL DESCRIPTION OF THE CONTROL PANEL: MUM S11BRIO REV01...
  • Page 6 1) DELIVERY GROUP PURGE FUNCTION BUTTON 2) GROUP 1 SHORT COFFEE DELIVERY BUTTON 3) DELIVERY BUTTON 1 LONG COFFEE/2 COFFEES (according to machine parameters) DELIVERY GROUP 4) GROUP CONTINUOUS DELIVERY BUTTON 5) DELIVERY GROUP ON/STBY BUTTON 6) STEAM DELIVERY BUTTON (IF STEAM BOILER IS ON)/M.A.T. SYSTEM BUTTON 3.0 (OPTIONAL) 7) APPLIANCE ON/STBY BUTTON 8) WATER FOR INFUSIONS DELIVERY BUTTON (IF STEAM BOILER IS ON) 9) GROUP 1 SHORT COFFEE DELIVERY BUTTON LED...
  • Page 7 APPLIANCE DATA PLATE Remove the delivery group drip tray to view the appliance data plate: MUM S11BRIO REV01...
  • Page 8 READ THE FOLLOWING WARNINGS CAREFULLY AS THEY PROVIDE IMPORTANT SAFETY INFORMATION ON APPLIANCE USE AND MAINTENANCE This appliance must be used solely for its intended purpose and installed in a suitable place for such use. Any other use is to be considered improper and therefore irrational.
  • Page 9 • The maximum machine installation altitude is 8000 metres. • Children must not play with the appliance. • Maintenance and cleaning of the machine must not be performed by children unless supervised. • These instructions are also available in an alternative format, for example on a website. The appliance is supplied without water in the boiler, to avoid damage from exposure to low temperatures;...
  • Page 10 PREPARATION FOR USER INSTALLATION Place the appliance on a flat surface to ensure secure support. Verify this important requirement as the manufacturer shall not be held responsible e for damages caused by appliance instability. When fitting for installation, make sure there is an opening on the supporting surface to enable connection to the water and electrical mains in the compartment below, where the softener must be positioned, if deemed necessary by the installer.

  • Page 11: Installation

    INSTALLATION The electrical system, water system and drainage system (if present) MUST already be fitted by the Client in a suitable position to enable correct installation. The installer can modify the existing system prepared by the Client see the "Preparation for user installation" paragraph. The appliance must be installed somewhere so that use and maintenance is limited to trained staff only.

  • Page 12: Switching The Appliance On

    SWITCHING THE APPLIANCE ON: With appliance connected to electrical mains and in STBY mode (only LED 13 PAGE 5 flashing), press and hold down button 7 for 3 seconds (PAGE The following will appear on the Display: The delivery group and/or steam Boiler can now be switched on. MUM S11BRIO REV01...
  • Page 13 SWITCHING ON THE COFFEE DELIVERY GROUP: Press button 5 (PAGE 5) to switch on the coffee delivery group. The following will be displayed on the main display: The front LED bar 5 (PAGE 2) and leds of delivery pushbutton panel selections 4 (PAGE 2) will light up. As the delivery group heats up, the temperature value (expressed in °C and in °F when "American"...
  • Page 14 TURNING ON THE STEAM BOILER: With the appliance switched ON, press the button on the Touchscreen display to enable steam boiler heating (hot water for infusions/ steam). LEDs 12 and 14 (PAGE 5) will light up and steam boiler pressure (in Bars) will be displayed: The steam boiler automatic water filling cycle will start (if necessary) and when it ends, the heating phase will begin.

  • Page 15: Preparing Coffee

    PREPARING COFFEE: When the correct operating temperature of the delivery group is reached (value in °C in green), proceed as follows: 1. Unhook the filter holder of the delivery group (4) PAGE 3. 2. Load ground coffee (use coffee doser supplied), take care not to leave any coffee powder on the upper edge of the filter holder, and press using the coffee press supplied.

  • Page 16: Hot Water Delivery For Infusions

    HOT WATER DELIVERY FOR INFUSIONS: With the steam boiler ON and pressurised (approximately 1 - 1.2 bars, as shown on the main Display), position a frothing jug underneath the hot water delivery spout 7 (PAGE 3). Press the hot water delivery button 8 (PAGE 5). Hot water delivery will begin. When the desired amount has been delivered, press button 8 again (PAGE 5) to stop delivery.
  • Page 17 N.B.: If no PIN is entered after 5 seconds, the display will return to the main screen. The default PIN can be changed in the specific menu by following the procedure described in the relevant chapter. When the correct PIN is confirmed, the following will appear on the Display: Use the buttons to scroll through the menus, and select the desired Area to access them.

  • Page 18: Parameters Menu

    PARAMETERS MENU: By selecting the button, the following will be displayed: MUM S11BRIO REV01...
  • Page 19 DELIVERY GROUP TEMPERATURE MENU: Select the Menu to access the Menu for adjusting Coffee Delivery Temperature. The following will appear on the Display: Use the buttons to modify coffee delivery temperature relative to the Coffee Delivery Group. Press to confirm the set value and return to the Parameters Menu. Delivery group operating temperature is modified solely for the purpose of improving the in-cup result, depending on the coffee blend used.
  • Page 20 BOILER PRESSURE MENU: Select the Menu to access the menu where Steam Boiler pressure can be adjusted. The following will appear on the Display: Use the buttons to change (SET) steam boiler operating pressure. Press to confirm the set value and return to the Parameters Menu. Steam boiler operating pressure is solely modified to change steam delivery power, so that the milk emulsion is optimised.
  • Page 21 COFFEE DOSES MENU: Select the Menu to enter the menu for adjusting and saving delivered coffee amounts relative to buttons 2-3 (PAGE 4) of the Delivery Group. The following will appear on the Display: Proceed to prepare 1 coffee/2 coffees, as described in the chapter on Page 18: During delivery, once the desired volume of coffee is reached, stop delivery by pressing the delivery button once more (PAGE 4).
  • Page 22 Set coffee volumes for each selection; ensure "granulometry" and "weight" parameters are correct, based on the type of beverage you wish to serve (E.g. Espresso 1 cup= 25 +/- 5 ml of product in cup extracted in 25+/-5 seconds) M.A.T. 3.0 (OPTIONAL): Select the Menu to access the M.A.T.

  • Page 23: Purge Menu

    The modification of TStep and Air Step values influences the homogenisation of the liquid phase and the liquid phase of the beverage. In general, the TStep value is around 20 degrees lower than TMax and Air Step value is 1/5 of the Air Start value. PURGE MENU: Select the Menu to access the Parameters Menu for setting the "PURGE"...
  • Page 24 PREINFUSION MENU (if enabled in SETTINGS Menu: refer to Page 43 of this manual): Select the Menu to access the Menu for setting parameters for Preinfusion time associated with coffee deliveries. The following will appear on the Display: Use the +/- to change the initial Preinfusion time for coffee delivery. The Preinfusion time (expressed in seconds) is relative to the time, from the start of delivery, during which water at mains pressure is added to the ground coffee in the filter holder (pump does not work).

  • Page 25: Settings Menu

    SETTINGS MENU Select the Menu and the following will appear on the Display: Use the buttons to scroll down the Menus: MUM S11BRIO REV01...

  • Page 26: Language Menu

    Select the relative Area to access it. Press the button to exit the Settings Menu. LANGUAGE MENU: Select the Menu to access the displayed language settings Menu. The following will appear on the Display: MUM S11BRIO REV01...
  • Page 27 Select the Country to select the relative language. Press the button to exit the Settings Menu. N.B: Select "American" to view temperature values in °F and change the time format changes to AM/PM. TIMER ON/STBY MENU: Select the Menu to access the ON and OFF Time Programming Menu of the appliance. It is also possible to select a function (DELIVERY GROUP, STEAM BOILER) for each daily on and off time slot (3 in total).
  • Page 28 Select OFF to exit the Menu (the TIMER function will not be enabled), or select ON and the following will appear on the display: Select the button to exit the menu and select the day of the week to scroll through the days. The example shows a screenshot of the ON and OFF time settings for MONDAY.
  • Page 29 Use the + and - buttons to set relative ON and OFF times for the first time slot. Use the button to return to the previous screen: Select the GR1 or Boiler buttons and a FLAG will appear next to the button to indicate that the selected Module will be enabled at the set time.
  • Page 30 When this is complete, select the button to exit the ON/STBY TIMER Menu. N.B.: With the TIMER function enabled, the current hour will alternate with the next OFF for the TIMER on the main Display: MUM S11BRIO REV01...
  • Page 31 With the appliance OFF for the TIMER, the next day and ON time for the TIMER is visible on the main Display: N.B: Use button 7 (PAGE 4) to force appliance switch-on. As of now the TIMER will be disabled ECO MODE MENU: Select the Menu to access the Menu for modifying the management of the heating mode of steam BOILER for delivery...
  • Page 32 Select ON to enable the ECO BOILER function. Press the button to exit the Menu. With the ECO BOILER ON function, ECO will light up in green on the main Display: N.B.: With ECO BOILER= ON, STEAM BOILER activity (hot water/steam delivery) is limited by appliance firmware. If the delivery of large quantities of steam and/or hot water is required for infusions, leave ECO BOILER= OFF.
  • Page 33 CHANGE PIN MENU: Select the Menu to change the DEFAULT PIN required to access menus. The following will appear on the Display: A new 4-digit PIN can be entered, which will be required the next time the appliance settings Menu is accessed. Confirm the new PIN by pressing the button.
  • Page 34 TIME CONTROL MENU: Select the Menu to enable the coffee extraction time control function during delivery. With this function, the user can verify the suitability of product delivery time set by machine installation parameters, and if necessary, adjust "granulometry" (grind) and/or "weight" (amount of ground coffee in filter holder) parameters. The following will be displayed on the main Display: Select YES to enable the function and the following will appear on the Display: Use + and - to modify the tolerance time applied to the coffee delivery time.
  • Page 35 With this function enabled, during normal appliance operation, the reference time for the specific selection currently being completed is shown on the left (time automatically memorised upon programming delivered product volume), under the corresponding delivery group temperature on the main Display; the actual time of current delivery is shown on the right. With real time value red = extraction time non-conformity With real time value green = extraction time conformity N.B: The purpose of this function is solely to give the user an idea of delivered product conformity based on its extraction time.
  • Page 36 AUTO STANDBY MENU: Select the Menu to enable the "automatic switch off" function of the appliance after a certain programmable amount of time of machine idleness ("energy saving" function) Once the programmed time is up and if the appliance does not carry out any deliveries of coffee/hot water for infusions/steam, the appliance switches from ON status to STANDBY status (off).
  • Page 37 A time of 15 to 60 minutes can be programmed. When the function is active, the symbol appears on the main screen, with the remaining amount time before automatic switch off. Each time a delivery is completed (coffee, hot water for infusions or steam), the remaining time is reset and restarts from the value set in the menu.
  • Page 38 EASY MODE MENU: Select the Menu to access the Menu where the delivery group and steam boiler can be stopped from being switched on and off separately, and the time that the settings menu access button is held down for can be extended. This mode is also called appliance “Simplified USE mode”...
  • Page 39 When this function is active, the lettering EASY MODE will be visible on the main screen: Press the button to exit the Settings Menu. DISPLAY LOGOS MENU: Select the Menu to access the function for importing images that can be viewed on the TFT display. Before entering the DISPLAY LOGOS Menu, lift the rubber cover and insert the USB key into port 12 (PAGE 2).
  • Page 40 A preview of the first image detected by the USB Key. Press the button to preview any further images in the USB Key. When the desired image is displayed, press STANDBY and this image will become the new display image when the appliance is in STBY mode. Press SCREENSAVER and the selected image will become the new display image whenever the appliance is inactive for more than 10 seconds.
  • Page 41 Press the STANDBY and/or SCREENSAVER buttons to reset the DEFAULT settings for the 2 functions (STBY: No image displayed; SCREENSAVER: no image displayed when the appliance is inactive for more than 10 seconds). VALID IMAGE FORMATS: Only the following images can be imported and displayed in the DISPLAY LOGOS Menu: .BMP file extension (Bitmap).
  • Page 42 If the image is invalid or there are no images on the USB Key, the following will appear on the display: Exit the Load Bitmap Menu by pressing the button, remove the USB Key and reposition the rubber cover. MUM S11BRIO REV01...
  • Page 43 PREINFUSION MENU: Select the Menu to access the Preinfusion enabling/disabling function. The following will appear on the Display: Select ON to enable the setting of parameters for the level of machine Preinfusion in the PARAMETERS Menu. Refer to the PARAMETERS Menu for PREINFUSION function settings. MUM S11BRIO REV01...

  • Page 44: Counters Menu

    COUNTERS MENU: Select the Menu to access the Menu where any set coffee, steam and water for infusions delivery counters can be viewed. The following will appear on the Display: Select the Menu and the following will appear on the Display: The amount of coffees that have been delivered can be viewed, and this is split into TOTAL (non-resettable) and PARTIAL (resettable) figures.
  • Page 45 To reset PARTIAL counters, select the button and the following will appear on the display: Select YES to reset the partial counters, and select NO to not reset them. Select the Menu and the following will appear on the Display: The amount of water deliveries for infusions can be viewed, and this is split into a TOTAL (non-resettable) and PARTIAL (resettable) figures.

  • Page 46: Maintenance Menu

    Select the Menu and the following will appear on the Display: The amount of steam dispenses can be viewed, and this is split into a TOTAL (non-resettable) and PARTIAL (resettable) figures. If necessary, reset the PARTIAL counters by following the procedure described above. MAINTENANCE MENU: Select the Menu and the following will appear on the Display:...
  • Page 47 Select the Menu to access the Menu for setting autonomy in Litres relative to the softening system used to remove limescale from water used by the machine. The following will appear on the Display: “L/Max” is the maximum service life of the resin filter (modifiable according to the manufacturer's instructions using the + and - buttons). The warning is the value in litres that has been reached, which appears on the main display when it is time to replace the resin filter N.B: By setting the value of LTMAX and WARNING to 0, the AUTONOMY field is automatically changed to CONSUMPTION.

  • Page 48: Calendar Menu

    CALENDAR MENU: Select the Menu to access the current DATE and TIME settings menu. The following will appear on the Display: Change the parameters using the + and - buttons. Press the button to exit the Settings Menu. INFO MENU: Select the Menu to view general appliance info: Press the...
  • Page 49 UPDATING APPLIANCE MANAGEMENT FIRMWARE: Appliance management firmware can be updated using a USB key. Firmware updates are necessary to ensure optimal appliance performance and to leverage all the latest available features. To update firmware, proceed as follows: Put the appliance into STBY mode by pressing button 7 (PAGE 4). Unplug the power cable from the mains.
  • Page 50 SCHEDULED MAINTENANCE OF THE APPLIANCE BY THE USER N.B.! To ensure efficient and correct appliance operation, follow the manufacturer's instructions by carrying out scheduled cleaning and maintenance operations Please Note! Scheduled cleaning and maintenance works must be carried out by the user in accordance with the manufacturer’s instructions as described here below.

  • Page 51: External Structure

    N.B.! Do not use water jets to clean the appliance. EXTERNAL STRUCTURE Clean the external structures of the appliance with detergents that are mild, so as not to ruin them. The use of abrasive sponges is not recommended as they may damage appliance body panels. PLEASE NOTE: Every day after the last shift and after daily cleaning, turn off the appliance by pressing button 7 (PAGE 4), and unplug the appliance from the mains.
  • Page 52 MANAGEMENT OF OPERATING WARNINGS: DELIVERY GROUP TEMPERATURE NOT REACHED WARNING Appliance-stopping warning. If during the delivery group’s initial heating phase, the temperature does not reach at least 50°C within 8 minutes, icon will appear in the place where relative group temperature is displayed. Reset the warning by turning off and switching the respective group back on, using button 5 (PAGE 4).
  • Page 53 HIGH BOILER PRESSURE WARNING Steam boiler-stopping warning only. If, when the steam boiler is turned on at the start of the day, the pressure exceeds 1.6 bars, the icon will appear in the place of the steam boiler on/off button. The warning is reset by pressing (turning off) this button on the main display.
  • Page 54 AUTOMATIC COFFEE DOSING SYSTEM FAULT WARNING Non-appliance stopping warning. If when delivering coffee via the programmable buttons 2-3 (PAGE 4), the volumetric control system cannot determine how much coffee has been delivered, the icon will appear in the place where that group’s temperature is displayed. The warning is automatically reset by manually stopping the beverages being delivered, using buttons 2-3 (PAGE 4).
  • Page 55 POWER BOARD CONNECTIONS: MUM S11BRIO REV01...
  • Page 56 KEY: M0 = CONNECTION WITH DISPLAY BOARD M1 = CONNECTION DELIVERY RELAY 24Vac: RL1: RELAY EV delivery GR1 RL2: not used RL3: RELAY EV load Steam boiler RL4: RELAY EV delivery H2O RL5: RELAY EV STEAM delivery/M.A.T. RL6: not used RL7: not used RL8: RELE EV inbound water connection to water mains (OPTIONAL) RL9: FREE...
  • Page 57 M5-M6 = NOT USED M9 = STATIC RELAYS CONNECTION: RS1: PILOTING STATIC RELAY GR1 RS2: not used RS3: PILOTING STATIC RELAY STEAM BOILER M10 = CONNECTIONS 230VaC (F3 = FUSE LINE 230Vac) F = PHASE IN ST = NOT USED P2 = NOT USED P1 = OUT PUMP GR1 M11 = NOT USED...

  • Page 58: Display Board Connections

    DISPLAY BOARD CONNECTIONS: KEY: MC1 = CONNECTION WITH TFT DISPLAY MC2 = PROGRAMMING CONNECTION X1 = BUZZER MUM S11BRIO REV01...
  • Page 59 M0 = CONNECTION WITH POWER BOARD M4 = CONNECTION TEMPERATURE PROBE PT1000 DELIVERY GROUPS (PT1 = GR1; PT2 = not used) M7 = CONNECTION STEAM BOILER PRESSURE SENSOR M8 = CONNECTION STEAM BOILER WATER LEVEL M12 = RS232 SERIAL CONNECTION M14 = LED R/L WATER TANK M15 = CONNECTION KEYBOARD ON/STBY –...
  • Page 60 REV. 01/2023 La Spaziale SpA Via E. Duse, 8 40033 Casalecchio di Reno Bologna - (Italy) Tel No. +39 051 611.10.11 Fax. +39 051 611.10.40 info@laspaziale.com  www.laspaziale.com MUM S11BRIO REV01...
