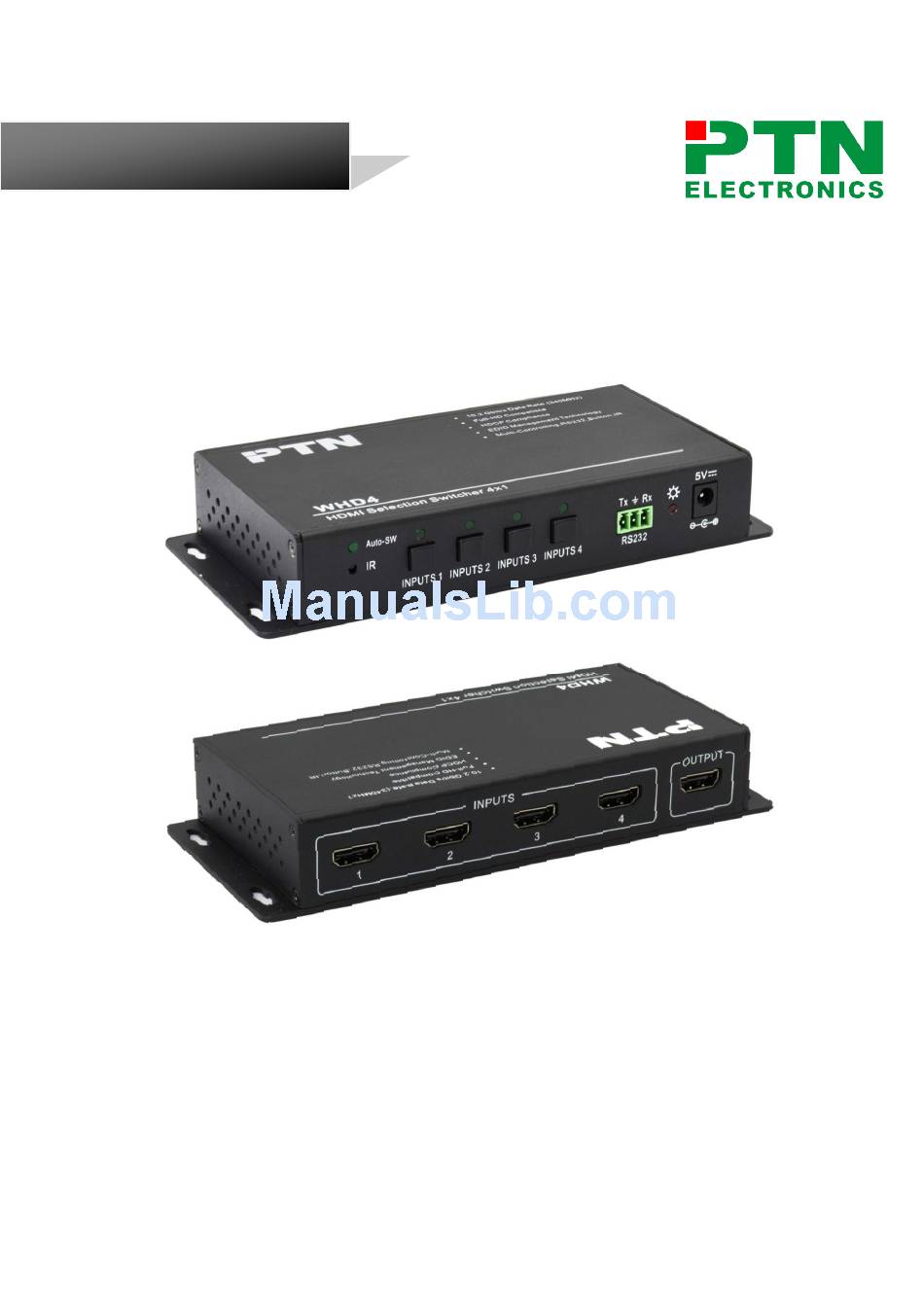

- Page 1 USER MANUAL WHD4 PTN HDMI Switcher 4x1 with Auto-switching Version: WHD42012V1...

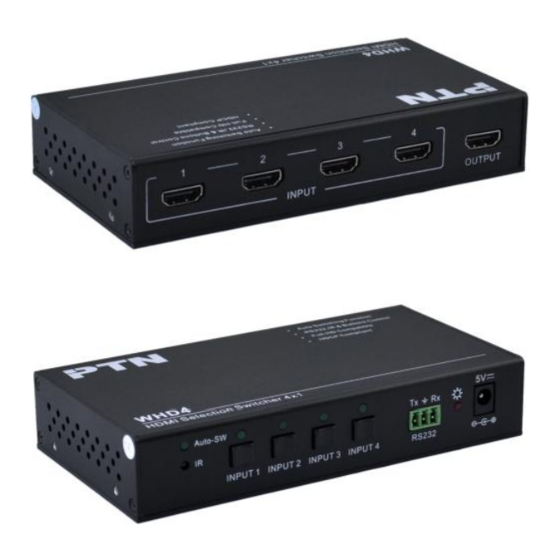

- Page 2 HDMI Selection Switcher 1 Introduction WHD4 is a 4x1 HDMI selection switcher with auto-switching, it has four HDMI inputs and one HDMI output, controllable via buttons, IR and RS232. It is a high performance HDMI device supporting resolution up to 1920*1200@60Hz, 1080p & 2K, and supporting EDID and DDC, with HDCP &...
- Page 3 Once detecting a new input signal WHD4 would switch to this new signal automatically. For example, if WHD4 is displaying signal from input 3, but it would switch to input 4 if you connect a new source to this input.
-
Page 4: System Diagram
AV: 1 -> 1 601% Auto switching mode Auto Switch 602% Manual switching mode Manual Switch 7 System Diagram Remarks: For any questions or problems, please try to get help from your local distributor, or email PTN at: support@PTN-electronics.com. PTN electronics Limited www.PTN-electronics.com...
