Summary of Contents for Marshall Electronics V-LCD70W-SH
-
Page 1: Operating Instructions

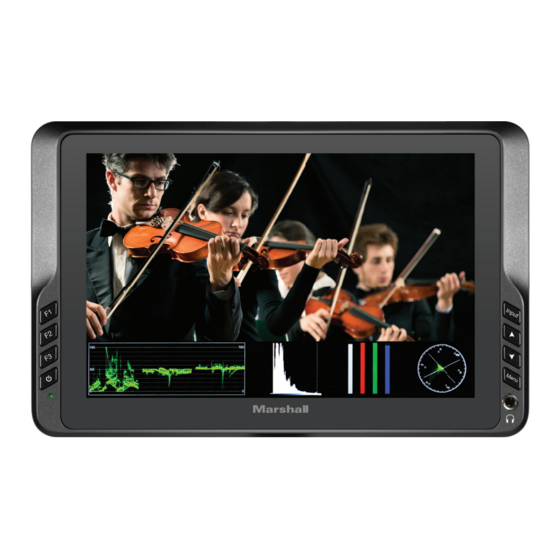

Marshall Electronics B r o a d c a s t A / V D i v i s i o n Model No. V-LCD70W-SH 7” 3G-SDI / HDMI Professional Camera-Top Monitor Operating Instructions Ver. 1.0... -
Page 2: Table Of Contents
The V-LCD70W-SH has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the V-LCD70W-SH should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Installation & Initial Setup
1. Installation & Initial Setup Unpacking Carefully unpack the V-LCD70W-SH monitor and verify that the following items are included: • V-LCD70W-SH Monitor • 12V-2A Power Supply • Operating Instructions • Sun Hood Supplied mounting screws: • KM2.5*6MM x4 (used for Marshall base plate Part# 0032-1308A) •... -
Page 4: Top & Front Panel Features
V-LCD70W-SH Operation Manual 2. Top & Front Panel Features F1~F3 user-defi ned function buttons. Shortcut: Long press on any function button (3-5 seconds) pops up menu for setting. Press Up/Down buttons to choose settings, then press the Menu button to confi rm the selection. -
Page 5: Rear Panel Features
3. Rear Panel Features 1. Serial Digital “BNC” Connectors SDI input and loop out. Conversion is possible between HDMI and SDI inputs. See System section of menu. Compatible with SDI, HD SDI and 3G SDI inputs. Embedded audio may be monitored at the Headphone jack and visually monitored on-screen. -
Page 6: Compatible Input Formats
V-LCD70W-SH Operation Manual 4. Compatible Input Formats 3G-HD-SDI Input 525i/59.94, 60, 625i/50 720p/25, 29.97, 30, 50, 59.94, 60 1080p/23.98, 23.98sF, 24, 24sF, 25, 29.97, 30 1080i/50, 59.94, 60 3G – Level A 1080p/ 60, 59.94, 50 HDMI Input 480p59.94, 576p50 720p/25, 29.97, 30, 50, 59.94, 60... -
Page 7: Main Menu & Navigation
5. Main Menu & Navigation 1. Using the menu buttons When power on, press “MENU” on the device. The menu will display on the screen. Press ▲ / ▼ button to choose menu item Then press “MENU” button to confirm ITEMS OPTIONS Exit... - Page 8 V-LCD70W-SH Operation Manual ITEMS OPTIONS Exit Brightness 0~100 Contrast 0~100 Saturation 0~100 Sharpness 0~100 5500ºK / 6500ºK / 7500ºK / 9300ºK / User R Gain 0-255 G Gain 0-255 Note: Only available under Color Temp B Gain 0-255 “User” mode to meet...
- Page 9 ITEMS OPTIONS Exit Waveform Off, Multi, Y, YCbCr, RGB Waveform Trans. Off, 20%, 50% Peaking On, Off Peaking Color Red, Green , Blue, White Peaking Level 0~100 False Color On, Off Exposure On, Off Exposure Level 0~100 Histogram Y, RGB, Color TimeCode (SDI Input Only) Off, VITC, LTC ITEMS...
-
Page 10: Specifications
V-LCD70W-SH Operation Manual 6. Specifications Screen Size 7” Diagonal Aspect Ratio 16:10 Resolution 1920 x 1200 PANEL Viewing Angle (h x v) 170° x 170° (H/V) Brightness 450 cd/m Contrast Ratio 1000:1 3G-HD-SDI Input / Output 2 x BNC Female (75 Ω) -
Page 11: Sun Hood Installation
7. Sun Hood Installation Sun Hood is designed for use with V-LCD70W-SH to shield the monitor from glare. It features three-sided folding design. Snap the Sun Hood to the front of the monitor. 8. Included Accessories 1. Sun Hood 2. DC 12V Power adapter 3. -
Page 12: Maintenance
V-LCD70W-SH Operation Manual 10. Maintenance Screen Cleaning Periodically clean the screen surface using ammonia-free cleaning wipes (Marshall Part No. V-HWP-K). A clean micro-fiber cloth can also be used using only non-abrasive and ammonia-free cleaning agents. Do not use paper towels. Paper towel fibers are coarse and may scratch the surface of the polycarbonate faceplate or leave streaks on the surface. -
Page 13: Warranty
This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. - Page 14 Marshall Electronics, Inc. 20608 Madrona Avenue Torrance, CA 90503 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDracks.com support@marshall-usa.com V-LCD70W-SH Operation Manual • Version 1.0...
