9. Slide top weight onto guide rods.
10. Place lower snap ring onto guide rod (about 3" from top end of guide rod).
11. Raise guide rod up through mounting hole and install the upper snap ring. Lower guide rod
and secure lower snap ring. Repeat steps 10 and 11 for the other guide rod.
12. Verify that the ring securing the weight selector pin to the machine is inserted around the
top weight connector.
13. Insert cable end connector into top weight and align cable fitting opening with opening in
top weight for proper cable tension. NOTE: Top weight should just rest on the second
weight plate.

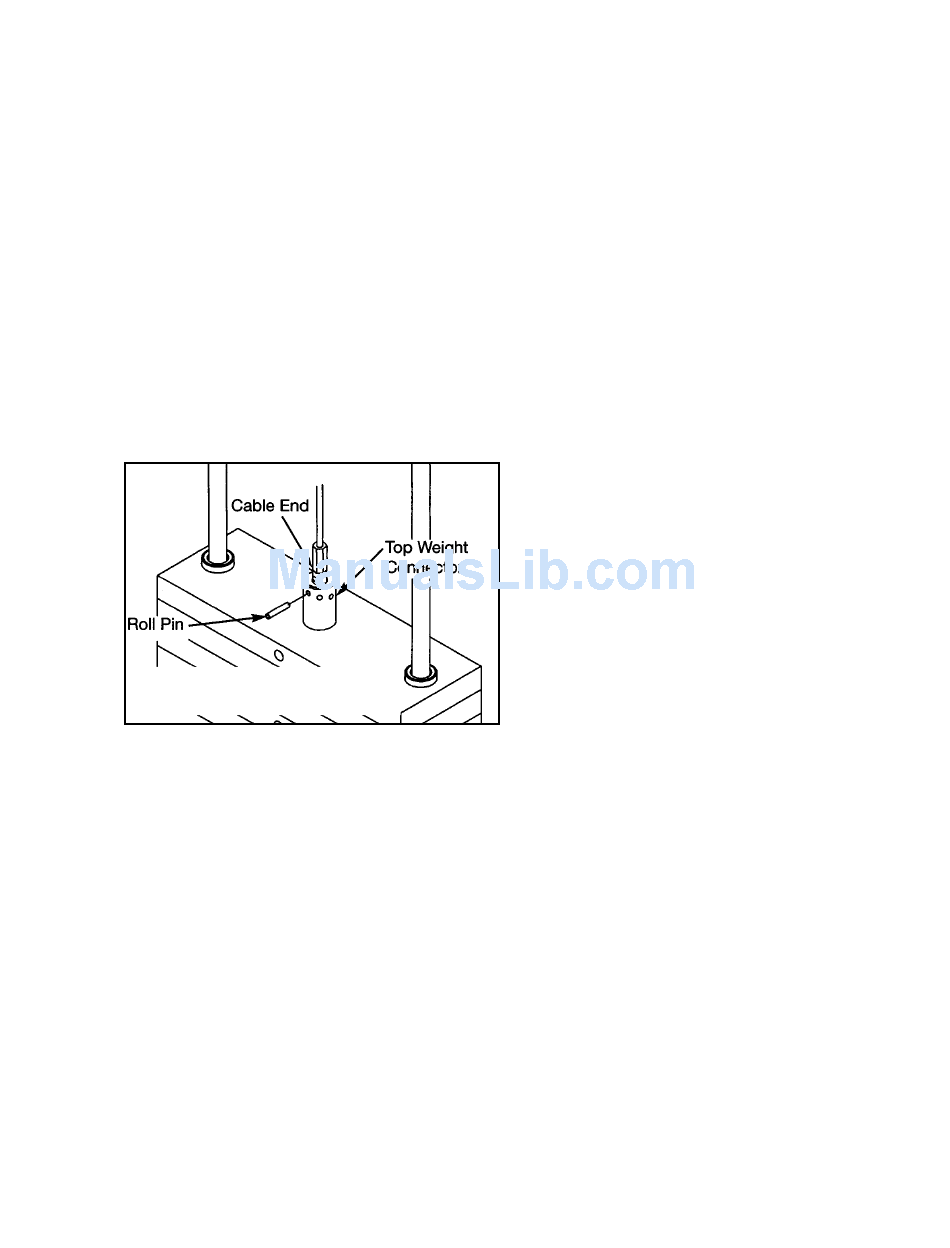

14. Using a hammer, drive roll pin through top weight cable connector holes and cable fitting.
Assure pin is flush with top weight connector. See Figure 2.
NOTE: Weight Selector Pin is
Figure 2
15. Insert weight stack selector pin into each plate to verify proper alignment.
16. Verify proper cable tension.
A. If there is too much tension then the top weight plate will not properly rest on second
weight and the weight selector pin may be difficult to insert into weight plates.
B. Too much slack is indicated if top weight plate does not lift immediately after raising top
weight plate (in normal fashion). A slight slack in cable is ok.
Assembly
Page 4-2
Cybex VR Owner's Manual
not shown.
