Cables Adjustments

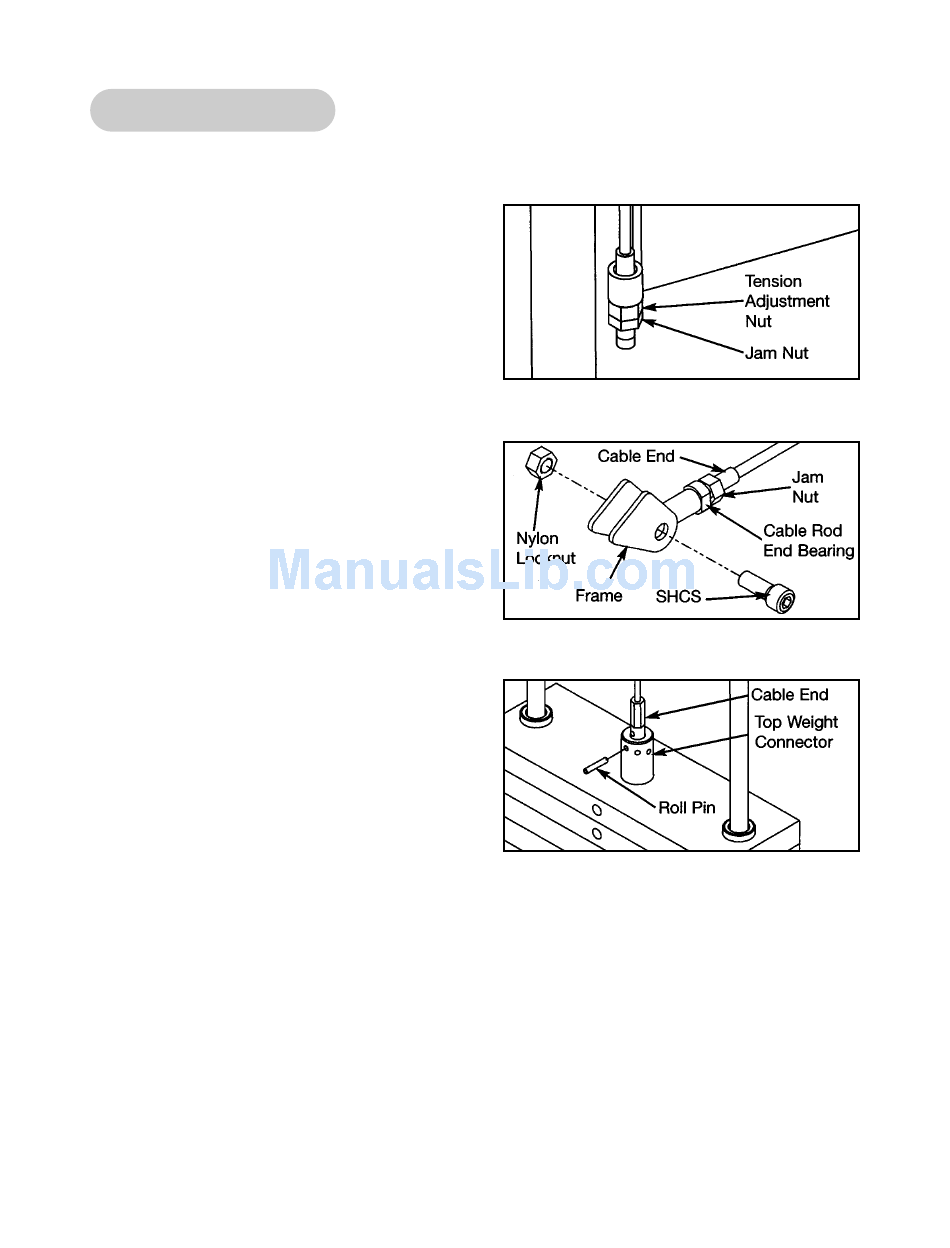

Three types of cable tension adjustment are used on Cybex Strength Systems:
1. Jam Nut Adjustment - This type uses a jam
nut and a tension adjustment nut at the cable
cam end as the primary adjustment. The other
end of the cable usually contains a roll pin
adjustment. See Figures 6 and 8.
2. Rod End Adjustment - This type of adjustment
contains a socket head cap screw (SHCS)
securing a cable rod end bearing to the
machine. Primary adjustment is by returning
cable usually contains a roll pin cable
adjustment. See Figures 7 and 8.
3. Roll Pin Adjustment - This type of adjustment
utilizes a roll pin and series of holes in the
weight stack top plate connector. See Figure 8.
Maintenance
Page 5-6
Cybex VR Owner's Manual
Figure 6
Figure 7
Figure 8
