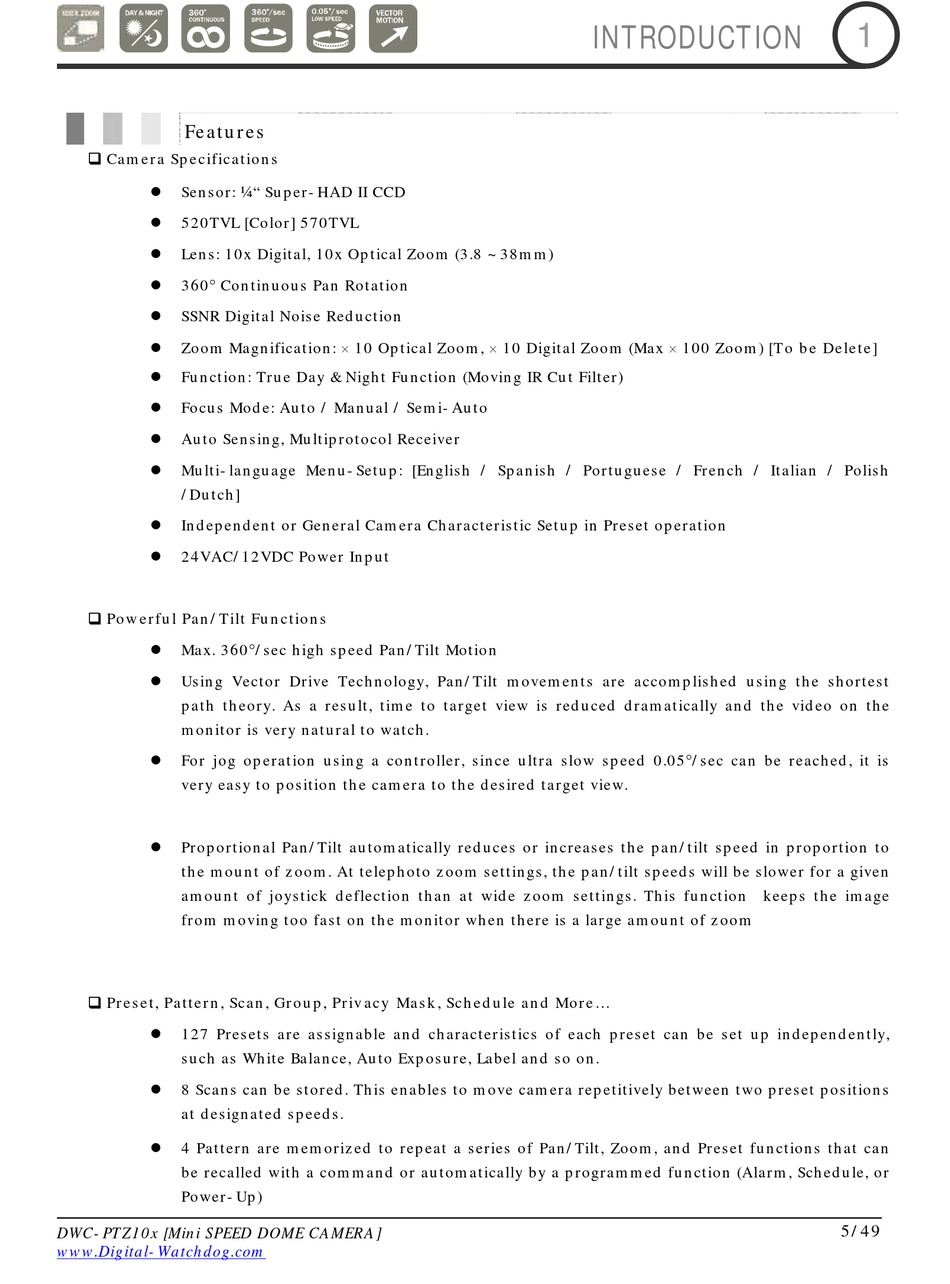

Features

 Camera Specifications
Sensor: ¼" Super-HAD II CCD

520TVL [Color] 570TVL

Lens: 10x Digital, 10x Optical Zoom (3.8 ~38mm)

360 Continuous Pan Rotation

 SSNR Digital Noise Reduction
Zoom Magnification:  10 Optical Zoom,  10 Digital Zoom (Max  100 Zoom) [To be Delete]

Function: True Day & Night Function (Moving IR Cut Filter)

 Focus Mode: Auto / Manual / Semi-Auto
Auto Sensing, Multiprotocol Receiver

Multi-language Menu-Setup: [English / Spanish / Portuguese / French / Italian / Polish

/Dutch]
Independent or General Camera Characteristic Setup in Preset operation

24VAC/12VDC Power Input

 Powerful Pan/Tilt Functions
Max. 360/sec high speed Pan/Tilt Motion

Using Vector Drive Technology, Pan/Tilt movements are accomplished using the shortest

path theory. As a result, time to target view is reduced dramatically and the video on the
monitor is very natural to watch.
For jog operation using a controller, since ultra slow speed 0.05/sec can be reached, it is

very easy to position the camera to the desired target view.
Proportional Pan/Tilt automatically reduces or increases the pan/tilt speed in proportion to

the mount of zoom. At telephoto zoom settings, the pan/tilt speeds will be slower for a given
amount of joystick deflection than at wide zoom settings. This function keeps the image
from moving too fast on the monitor when there is a large amount of zoom
 Preset, Pattern, Scan, Group, Privacy Mask, Schedule and More...
127 Presets are assignable and characteristics of each preset can be set up independently,

such as White Balance, Auto Exposure, Label and so on.
 8 Scans can be stored. This enables to move camera repetitively between two preset positions
at designated speeds.
4 Pattern are memorized to repeat a series of Pan/Tilt, Zoom, and Preset functions that can

be recalled with a command or automatically by a programmed function (Alarm, Schedule, or
Power-Up)
