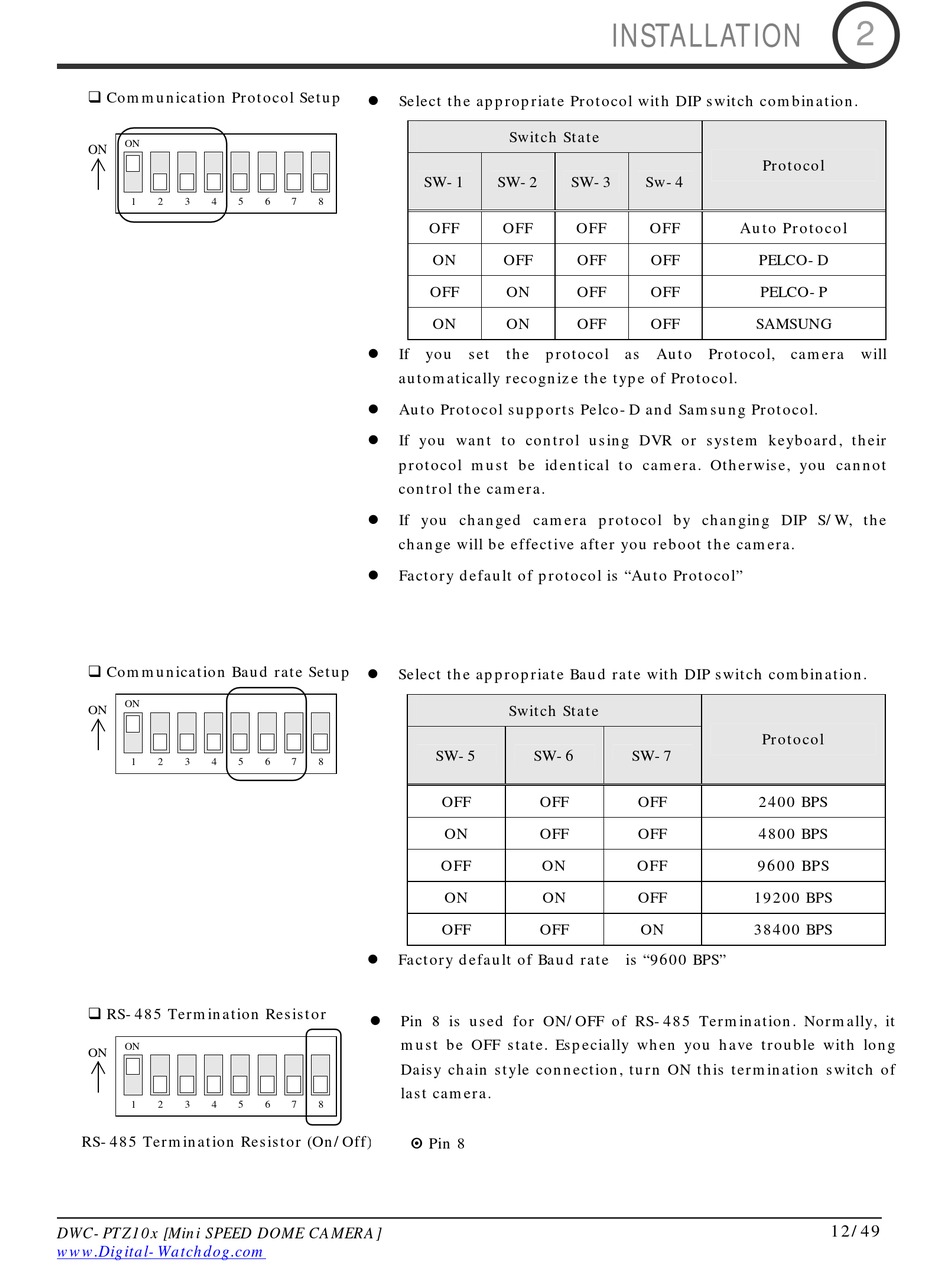

 Communication Protocol Setup
ON
ON
1 2 3 4
 Communication Baud rate Setup
ON
ON
1 2 3 4
 RS-485 Termination Resistor
ON
ON
1 2 3 4
RS-485 Termination Resistor (On/Off)
DWC-PTZ10x [Mini SPEED DOME CAMERA]
www.Digital-Watchdog.com
Select the appropriate Protocol with DIP switch combination.

5 6 7 8
If you set the protocol as Auto Protocol, camera will

automatically recognize the type of Protocol.
Auto Protocol supports Pelco-D and Samsung Protocol.

If you want to control using DVR or system keyboard, their

protocol must be identical to camera. Otherwise, you cannot
control the camera.
If you changed camera protocol by changing DIP S/W, the

change will be effective after you reboot the camera.
Factory default of protocol is "Auto Protocol"

 Select the appropriate Baud rate with DIP switch combination.
5 6 7 8
Factory default of Baud rate is "9600 BPS"

Pin 8 is used for ON/OFF of RS-485 Termination. Normally, it

must be OFF state. Especially when you have trouble with long
Daisy chain style connection, turn ON this termination switch of
last camera.
5 6 7 8
 Pin 8
Switch State
SW-1 SW-2 SW-3
OFF OFF OFF
ON OFF OFF
OFF ON OFF
ON ON OFF
Switch State
SW-5 SW-6
OFF OFF
ON OFF
OFF ON
ON ON
OFF OFF
INSTALLATION
Protocol
Sw-4
OFF Auto Protocol
OFF PELCO-D
OFF PELCO-P
OFF SAMSUNG
Protocol
SW-7
OFF 2400 BPS
OFF 4800 BPS
OFF 9600 BPS
OFF 19200 BPS
ON 38400 BPS
2
