TABLE OF CONTENTS

Torrent 90™ 90W LED Moving Head Spot
Setting the pan/tilt to inverting or non-inverting
Setting the DMX channel confi guration
Adjusting the fi xture calibration
Resetting the fi xture
Restoring Factory Defaults
Master/Slave ("Auto" or "Sound Active")
DMX Mode
Custom Programming
A Quick DMX Lesson
Page 2
Torrent 90 Manual Rev. A
1
3
3
3
3
3
4
5
5
5
6
7
7
7
7
8
8
8
9
9
10
10
11
11
11
11
11
11
11
11
12
13
14
16
17
17
18
18
18
19
Copyright (c) 2010-11 Blizzard Lighting, LLC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Torrent 90 and is the answer not in the manual?

Questions and answers

Related Manuals for Blizzard Lighting Torrent 90

Summary of Contents for Blizzard Lighting Torrent 90

  • Page 1: Table Of Contents

    DMX Mode Custom Programming Gobo Replacement DMX Channel Values In-Depth Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your Torrent 90 Spot As Good As New Returns (Gasp!) Shipping Issues Tech Specs Blizzard Lighting, LLC www.blizzardlighting.com Brookfi eld, WI USA...

  • Page 2: Getting Started

    1. GETTING STARTED SAFETY INSTRUCTIONS What’s In The Box? • 1 x Torrent 90™ Spot • An Ever-So-Handy Power Cord • A Sweet Safety Cable & set of Mounting Brackets • One really classy DMX cable • This Lovely User Manual Getting It Out Of The Box •...

  • Page 3: Meet The Torrent 90™ Spot

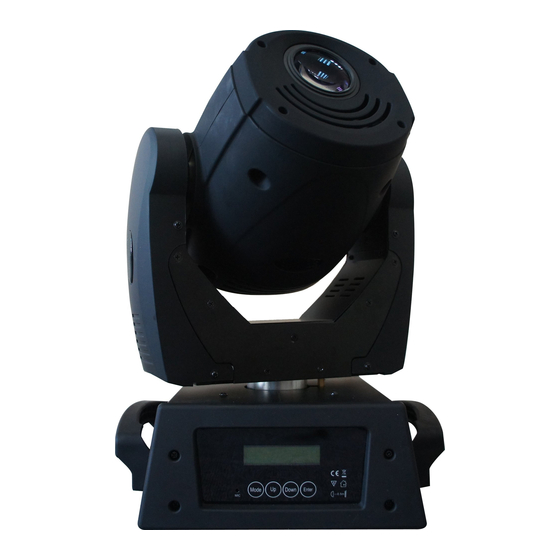

    2. MEET THE TORRENT 90™ SPOT Figure 1: The Torrent 90 Pin-Up Picture CONTROL FEATURES • 15-channel DMX LED moving yoke • Pan: 540º/630º/ Tilt: 270º • Color wheel: 7 colors + white • Rainbow color spin at variable speeds Lens •...

  • Page 4: Setup

    Grounding the common can cause a ground loop, and your fi xture may perform erratically. Test cables with an Connecting A Bunch of Torrent 90’s™ ohm meter to verify correct polarity and to make sure the pins are not You will need a serial data link to run light shows using a DMX-512 grounded or shorted to the shield or each other.

  • Page 5: Fixture Linking (Master/Slave Mode)

    fi rst fi xture. 2. Connect the end of the cable coming from the All the goodies and different modes possible with the Torrent 90™ are fi rst fi xture which will have a (female) 3 pin connec- accessed by using the control panel on the front of the fi xture. There tor to the input connector of the next fi...

  • Page 6: Control Panel Menu Structure & Adjustments

    14-15. Gobo Wheel 2 Strobe Dimmer Focus Prism Iris Page 11 Page 12 Torrent 90 Manual Rev. A Copyright (c) 2010-11 Blizzard Lighting, LLC Torrent 90 Manual Rev. A Copyright (c) 2010-11 Blizzard Lighting, LLC...

  • Page 7: Gobo Replacement

    Dimmer 000 <-> 255 0 <-> 100% Focus 000 <-> 255 Near <-> Far Page 13 Page 14 Torrent 90 Manual Rev. A Copyright (c) 2010-11 Blizzard Lighting, LLC Torrent 90 Manual Rev. A Copyright (c) 2010-11 Blizzard Lighting, LLC...

  • Page 8: Dmx Channel Values In-Depth

    If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com. Page 15 Page 16 Torrent 90 Manual Rev. A Copyright (c) 2010-11 Blizzard Lighting, LLC Torrent 90 Manual Rev. A Copyright (c) 2010-11 Blizzard Lighting, LLC...

  • Page 9: Appendix

    5. APPENDIX Keeping Your Torrent 90 As Good As New The fi xture you’ve received is a rugged, tough piece of pro lighting equip- A Quick Lesson On DMX ment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed.

  • Page 10: Tech Specs

    Our sincerest thanks for your purchase! Leventy Billion Percent --The team @ Blizzard Lighting 2-year limited warranty, does not cover mal- Warranty function caused by damage to LED’s. Page 19 Torrent 90 Manual Rev. A Copyright (c) 2010-11 Blizzard Lighting, LLC...
