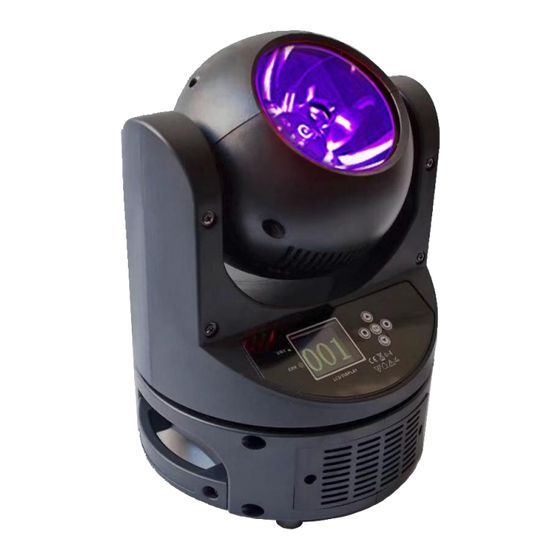

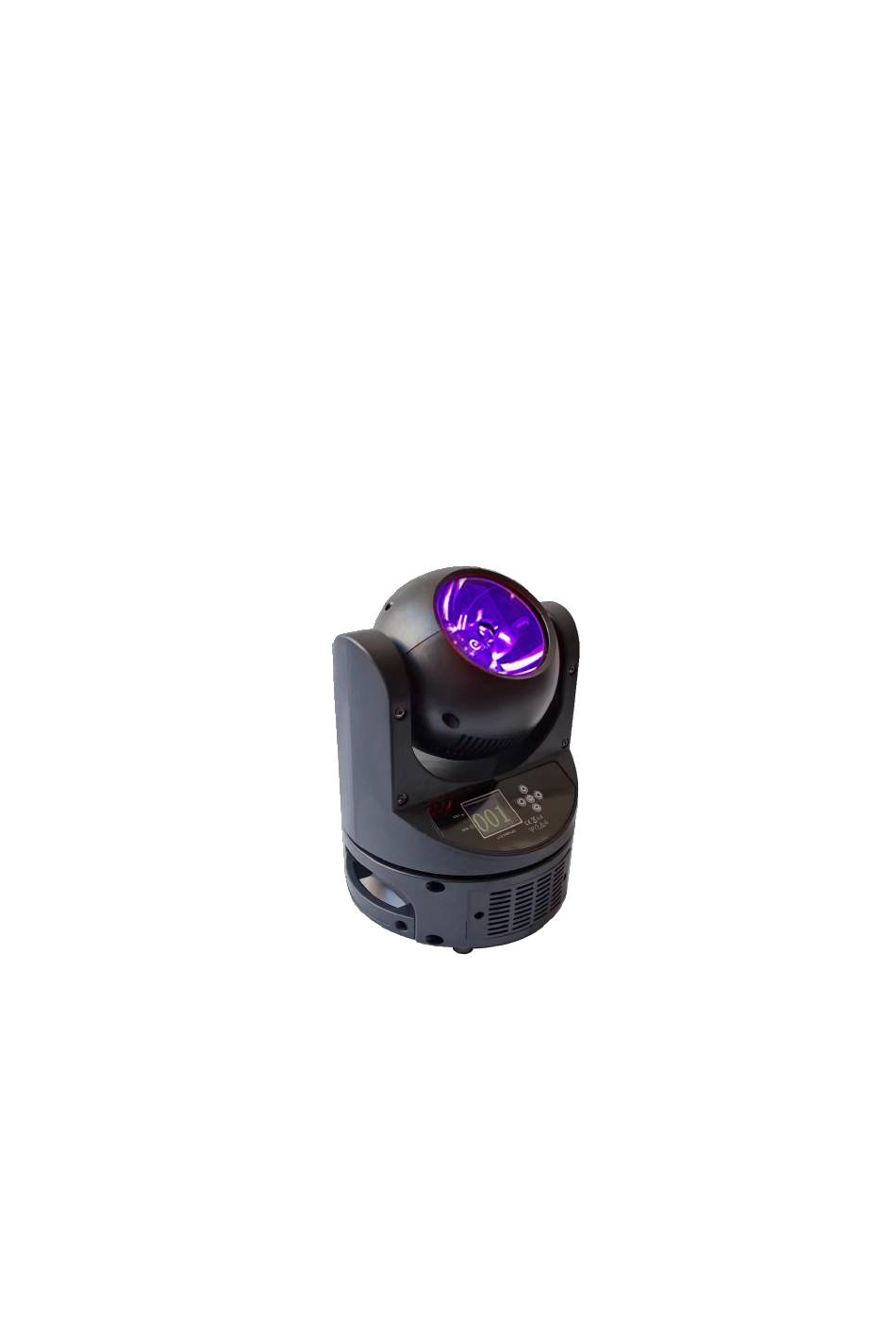

- Page 1 User Manual LED Wink Beam 60...
- Page 2 Protection Against Fire 1. Maintain a minimum of 1 50cm distance from any type of flame 2. Replace fuse only with the specified type and rating 3. Do not install the unit to close a heat source 4. Make sure cable are properly secured away from unit movement 5.
- Page 3 Specification Voltage Input: AC90-240V/50-60Hz Power Consumption: 100Watts Light Source: High power quad-LED RGBW 60W X1pc Pan/Tilt Range: Infinite Beam Angle: 3.5° Power Connector: Seetronic UL approved PowerCon In+Out DMX Data Connector: 5Pin DMX In/Out N.W: 4.45KGS Dimension: 215(L)X215(W)X280(H)mm Rigging Mounting points: 1 of 1/4-turn locks Mounting horizontally or vertically via 1 Omega brackets Temperatures Maximum ambient temperature: 45℃...
-
Page 4: Dmx 512 Connection
Connection to the mains For protection from electric shock, the fixture must be earthed! Install a suitable plug on the power cord, note that the cores in the power cord are colored according to the following table. The earth has to be connected! If you have any doubts about proper installation, consult a qualified electrician. - Page 5 Main Control Menu The control board on the fixture base is your interface to access and control all functions on the unit. Press MENU to select desired mode. Press ENTER to use UP/DOWN keys to select desired settings. Menu Map:...
- Page 6 Channel Chart Channel Function Value Infinite 000-255 Stop 000-055 Pan Direction Forward pan fast to slow 056-155 Backward pan fast to slow 156-255 Pan Fine 16bit 000-255 Tilt Infinite 000-255 Stop 000-055 Tilt Direction Forward tilt fast to slow 056-155 Backward tilt fast to slow 156-255 Tilt Fine...
