Section 3 - Configuration

Hardware Installation

Note: The following installation instructions assume that an analog video camera is installed and providing a signal. If necessary, please
consult your camera manufacturer's user manual for information on how to set up your analog camera.

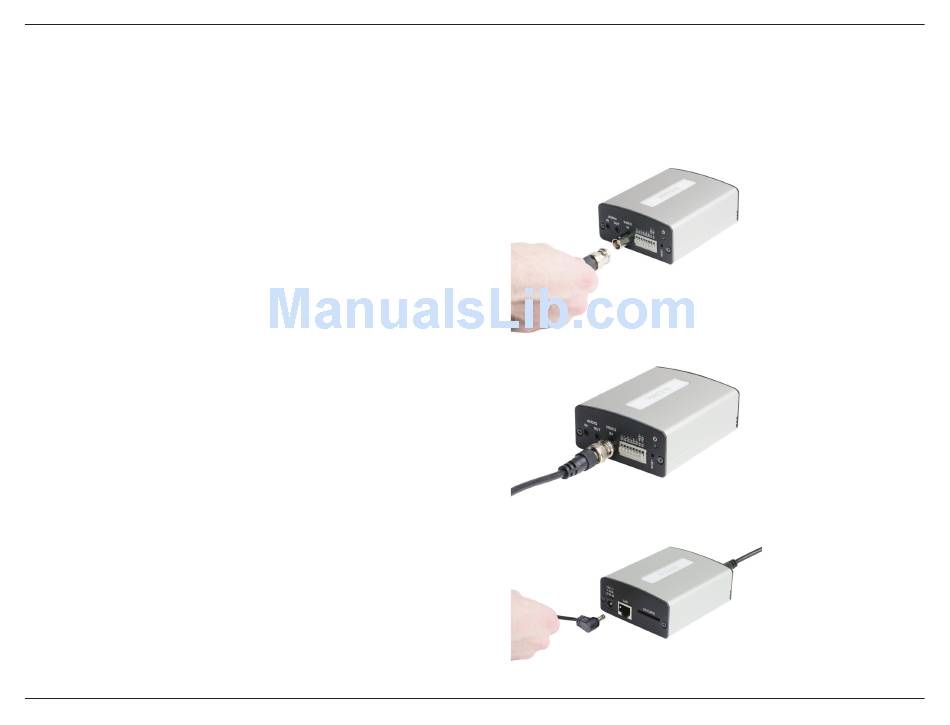

Connect the Video Cable
Connect the video cable from the camera to the VIDEO IN port
of the Video Encoder.
Once the cable has been connected, rotate the BNC connector
clockwise so that the cable locks into place.
Connect the Power Supply
Attach the external power supply to the DC power socket (labeled
12V 1.25A) and plug the two-pronged adapter into an AC power
outlet.
When the DVS-210-1 is receiving power, the green power
LED will be lit.
