D-Link DCF-650WK Quick Install Manual

Wireless compact flash converter kit with pc card converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
The DCF-650W/K is a compact flash card and a PC card adapter
designed to be used on a laptop with Windows XP / 2000 / ME / 98
Operating Systems in an "Ad Hoc" or "Infrastructure" mode.
Note: This guide is for installation purposes only. Please refer to the
Manual for more detailed information.
Contents of Package:
•
DCF-650W 11Mbps Wireless LAN Compact Flash Converter
•
DCF-653 CF/PC Card Converter
•
Quick Install Guide
•
PC Card Utility
•
Pocket PC Utility
If any of the above items are missing, please contact your reseller.
Using the DCF-653 CF/PC CARD
Converter

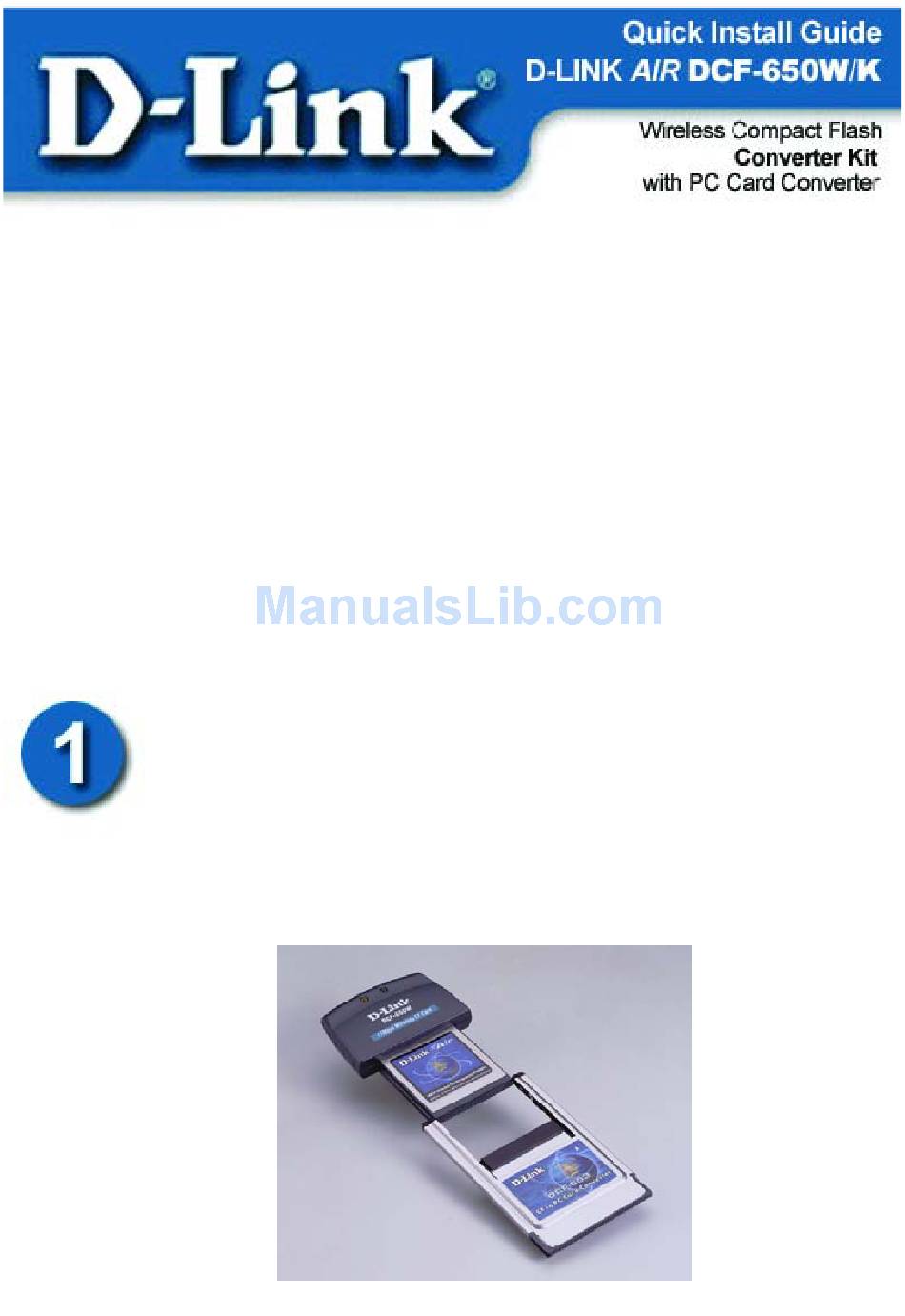

• Firmly insert the 11Mbps Wireless LAN Compact Flash Card into the
CF/PC CARD Converter, figured as below.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCF-650WK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for D-Link DCF-650WK

Summary of Contents for D-Link DCF-650WK

  • Page 1 The DCF-650W/K is a compact flash card and a PC card adapter designed to be used on a laptop with Windows XP / 2000 / ME / 98 Operating Systems in an “Ad Hoc” or “Infrastructure” mode. Note: This guide is for installation purposes only. Please refer to the Manual for more detailed information.

  • Page 2: For Windows 98Se

    Installing the DCF-650W/K in a Laptop Gently insert the DCF-650W Compact Flash Converter with CF/PC CARD Converter into the PC CARD slot in your laptop. Now turn on the computer. Windows XP/2000/ME/98 will auto-detect the DCF-650W Compact Flash Converter. For Windows 98SE Insert the DCF-650W/K driver CD into the CD-ROM drive.
  • Page 3 Select CD-ROM drive. If the driver is downloaded from http://www.support.dlink.com/ select Specify a location and browse for the location of the folder where the driver is unzipped i.e. c:\temp. Click Next. Click Next. If prompted, please provide the Windows 98 CD. Click Finish...
  • Page 4 Installing the DCF-650W/K in a Laptop (Cont.) Click Yes to restart. The DCF-650W/K is now installed and can be verified in Device Manager by right clicking on My Computer icon in the desktop and clicking on Properties.

  • Page 5: For Windows Me

    For Windows ME Make sure that the DCF- 650WK driver CD is inserted. If the driver is downloaded from www.support.dlink.com browse for the folder where the driver is unzipped i.e. c:\temp. Click Next. Windows will automatically install the necessary drivers. Click Finish and windows will prompt for a restart.

  • Page 6: For Windows 2000

    For Windows 2000 Click Next Select Search for a suitable driver for my device (recommended). Make sure to insert the DCF-650WK driver CD. Click Next Select CD-ROM drive. If the driver is downloaded from http://www.support.dlink.co , select Specify a location and browse for the location of the folder where the driver is unzipped i.e.
  • Page 7 Click Next Click on Yes, to complete the installation. (Note: Windows 2000 will not require a restart.) Click on Finish...

  • Page 8: For Windows Xp

    For Windows XP The Found New Hardware Wizard will appear after inserting the DCF-650W/K. Make sure to insert the driver CD or if the driver is downloaded from http://www.support.dlink.co , browse for the location of the folder where the driver is unzipped i.e.
  • Page 9 Windows will confirm a successful installation. Installing the Wireless LAN Utility on your PC Insert the DCF-650W/K CD into the CD-ROM drive, go to the PC Card setup.exe. Utility folder and run The following window will appear. Click Next to continue...
  • Page 10 Click Finish to finish the installation. Next, go to START>PROGRAMS>D-LINK Wireless LAN Utility>DCF-650WK Utility. The DCF-650WK icon will appear in the system tray in the bottom right of your laptop screen. You will click on this icon to access the Configuration Utility.

  • Page 11: Contacting Technical Support

    For further assistance, please refer to the Manual on the CD. Contacting Technical Support You can find the most recent software and user documentation on the D-Link website. D-Link provides free technical support for customers within the United States during the warranty period on this product.
