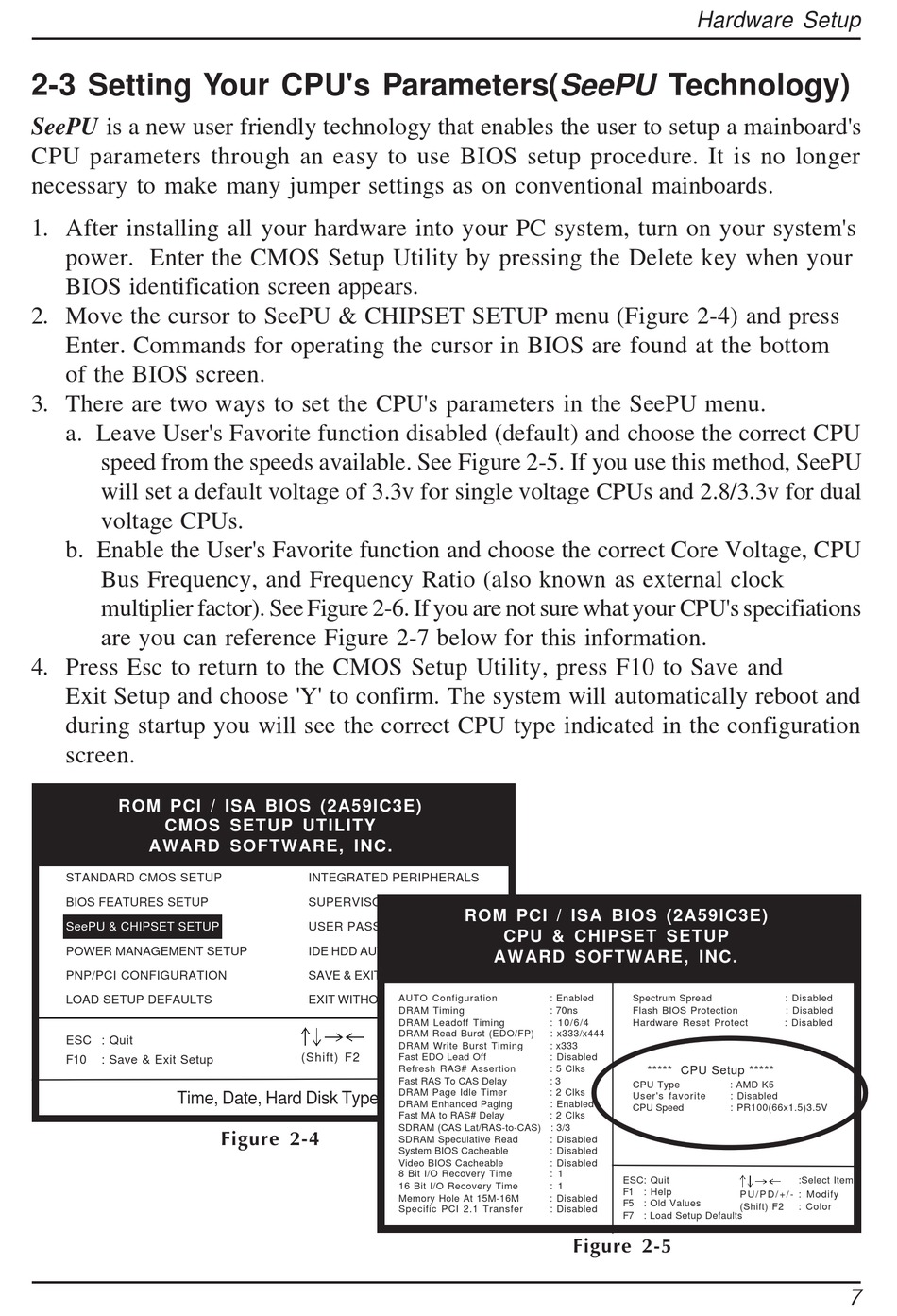

2-3 Setting Your CPU's Parameters( SeePU Technology)

SeePU is a new user friendly technology that enables the user to setup a mainboard's
CPU parameters through an easy to use BIOS setup procedure. It is no longer
necessary to make many jumper settings as on conventional mainboards.
1. After installing all your hardware into your PC system, turn on your system's
power. Enter the CMOS Setup Utility by pressing the Delete key when your
BIOS identification screen appears.
2. Move the cursor to SeePU & CHIPSET SETUP menu (Figure 2-4) and press
Enter. Commands for operating the cursor in BIOS are found at the bottom
of the BIOS screen.
3. There are two ways to set the CPU's parameters in the SeePU menu.
a. Leave User's Favorite function disabled (default) and choose the correct CPU
speed from the speeds available. See Figure 2-5. If you use this method, SeePU
will set a default voltage of 3.3v for single voltage CPUs and 2.8/3.3v for dual
voltage CPUs.
b. Enable the User's Favorite function and choose the correct Core Voltage, CPU
Bus Frequency, and Frequency Ratio (also known as external clock
multiplier factor). See Figure 2-6. If you are not sure what your CPU's specifiations
are you can reference Figure 2-7 below for this information.
4. Press Esc to return to the CMOS Setup Utility, press F10 to Save and
Exit Setup and choose 'Y' to confirm. The system will automatically reboot and
during startup you will see the correct CPU type indicated in the configuration
screen.
ROM PCI / ISA BIOS (2A59IC3E)
CMOS SETUP UTILITY
CPU Frequency
AWARD SOFTWARE, INC.
STANDARD CMOS SETUP
BIOS FEATURES SETUP
SeePU & CHIPSET SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS
ESC : Quit
F10 : Save & Exit Setup
Time, Date, Hard Disk Type...
INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING
(Shift) F2
Figure 2-4
ROM PCI / ISA BIOS (2A59IC3E)
CPU & CHIPSET SETUP
AWARD SOFTWARE, INC.
AUTO Configuration : Enabled
DRAM Timing : 70ns
DRAM Leadoff Timing : 10/6/4
DRAM Read Burst (EDO/FP) : x333/x444
: Select Item
DRAM Write Burst Timing : x333
Fast EDO Lead Off : Change Color : Disabled
Refresh RAS# Assertion : 5 Clks
Fast RAS To CAS Delay : 3
DRAM Page Idle Timer : 2 Clks
DRAM Enhanced Paging : Enabled
Fast MA to RAS# Delay : 2 Clks
SDRAM (CAS Lat/RAS-to-CAS) : 3/3
SDRAM Speculative Read : Disabled
System BIOS Cacheable : Disabled
Video BIOS Cacheable : Disabled
8 Bit I/O Recovery Time : 1
16 Bit I/O Recovery Time : 1
Memory Hole At 15M-16M : Disabled
Specific PCI 2.1 Transfer : Disabled
Hardware Setup
Spectrum Spread
Flash BIOS Protection
Hardware Reset Protect
***** CPU Setup *****
CPU Type : AMD K5
User's favorite : Disabled
CPU Speed : PR100(66x1.5)3.5V
ESC: Quit
F1 : Help
P U / P D / + / - : Modify
F5 : Old Values
(Shift) F2
F7 : Load Setup Defaults
Figure 2-5
: Disabled
: Disabled
: Disabled
:Select Item
: Color
