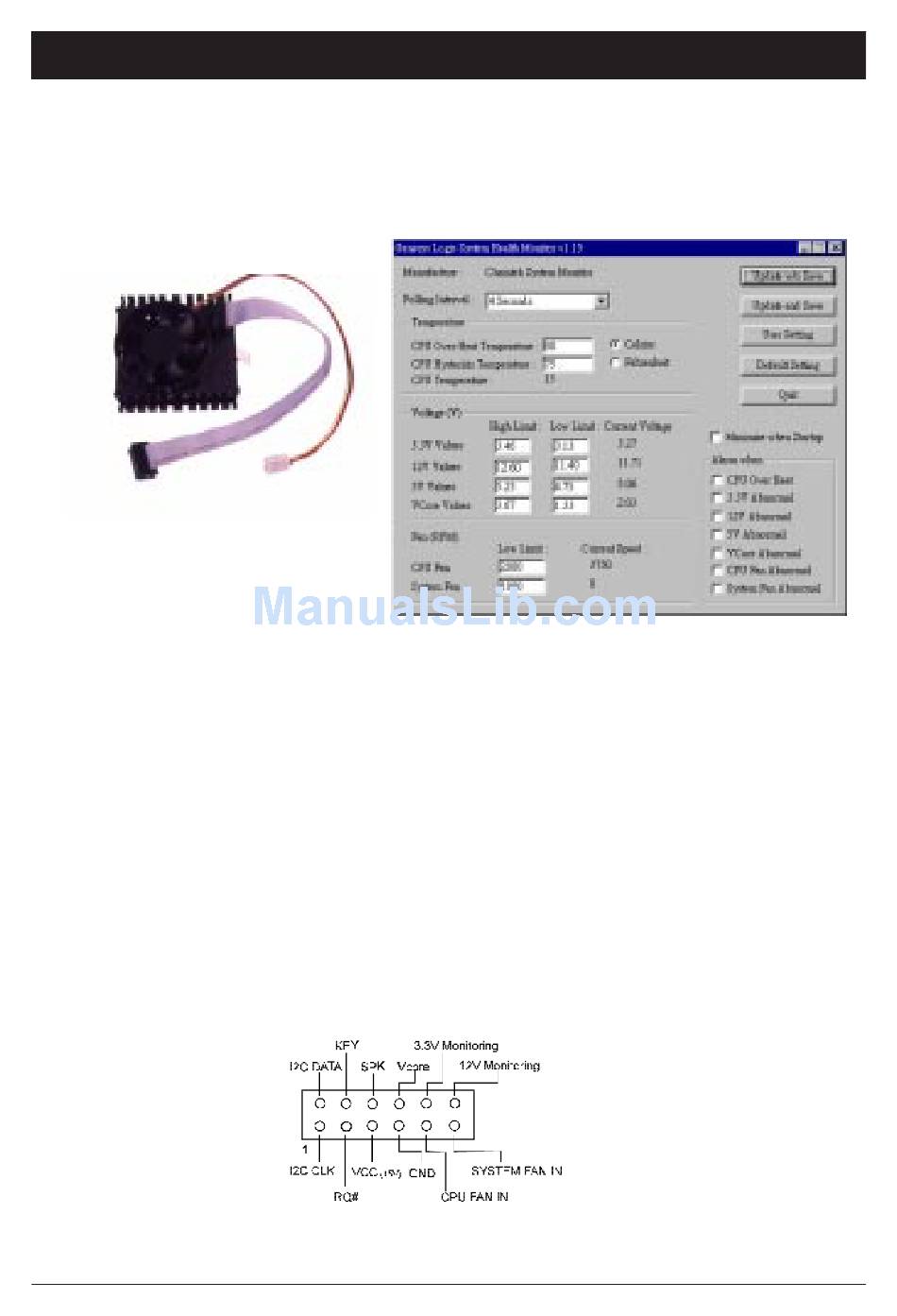

FAN78- SMART Technology Upgrade Kit
FAN78
The FAN78 upgrade kit provides a PC self-dialogistic capability called the SMART
(System Monitoring and Alerting) technology.
Features
- Detects four on-board voltages (CPU Core Voltage, 3.3V, 5V, 12V)
- Two fan speed sensing
- One precise CPU temperature sensor and one chassis temperature sensor
- Four types of speaker-driver signal output
- Supports system monitor software and drivers for LDCM
- EISCA v1.0 compliant
FAN78 Connector
Appendix III
System Monitor Software for Win95
TM
utility V3.1
65
