Setup device

There are two ways to configure the device, based on your
needs and on the availability of the real device. The main difference
is that you can either work with virtual devices before going online
and then send the setup to the units remotely or you can operate
on the physical unit directly.

10.2.1 Virtual device

If for some reason the devices are not available, configuration
must be carried out via virtual devices or a system of virtual
devices.
1. Select the device from the models
window
2. Drag and drop in the Workspace
3. If you already have a device preset
(.pam) you can import it by right
clicking on the device (see FIGURE
21).
4. You can modify any DSP value
following the instructions Section
10.8.
At this point you can save and
load the system file (.paw) at a later
time. Please refer to the Armonía
documentation. If the devices are ready
for remote control you can associate
the virtual device to the real device. To
do so, please follow the instructions in
the next section.

10.2.2 Configure layout

Virtual devices allow the use to
select the processing layout for any
single DSP module. Select the desired
layout in the preset tab of any virtual
device (see FIGURE 22).

10.2.3 Real device

Working on the real device remotely
is also possible. In this case all changes
made to a device are immediately
audible. In order to work on a real device:
1. Connect the device and discover the connected units (see
Section 10.1).
2. Drag the remote device into the workspace onto the virtual
device (see FIGURE 23).
3. If the internal device setup is different you'll be
prompted to select
By selecting yes the device setup is transmitted from the
virtual device to the real device. By selecting no the device
setup is transmitted from the real device to the virtual one.
WARNING! By answering "yes" to the realignment question,
the M Series device loses data on the selected preset slot.
It is now possible to operate on the device.
16
the realignment direction.

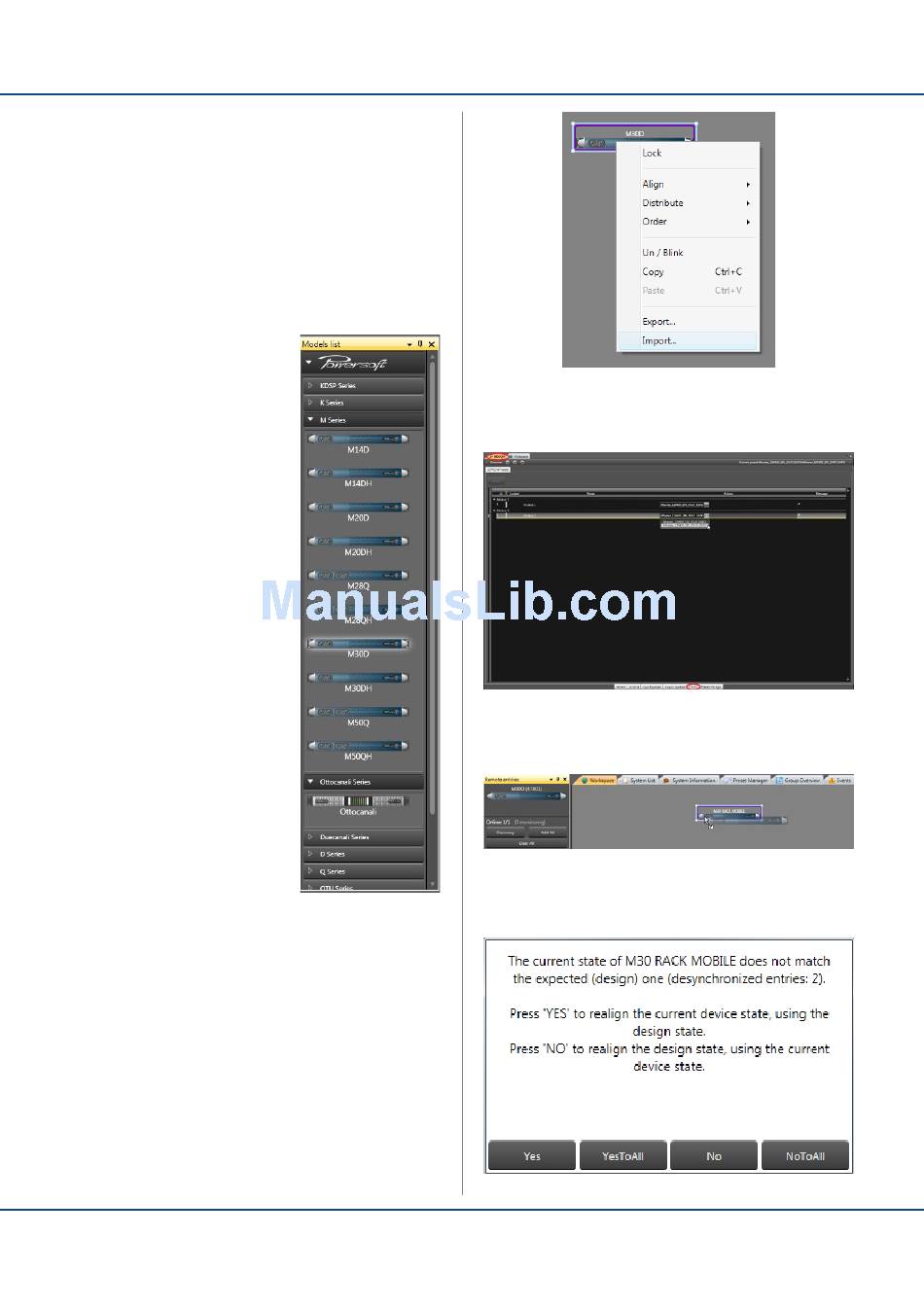

FIGURE 21: Left click to select (the blue rectangle appears)
and right click for import.
FIGURE 22: Select the desired layout in the combo-box.
FIGURE 23: Drop the discovered device on the virtual device; when
the arrow appears, release the left mouse button
FIGURE 24: Realign window, asking for synchronization.
