General
Number of channels
Max output power per channel
Max output voltage
AC Mains Power
Power supply
Nominal power requirements
Operating range
Inrush current
Consumption / current draw
Energy save on
Energy save off
I/8 of max power @ 8 �
Thermal
Environmental operating temperature
Thermal dissipation
Idle
I/8 of max power @ 4 �
I/4 of max power @ 4 �
Audio
Gain
Frequency response
S/N ratio (amplifier section)
Crosstalk separation
Input sensitivity @ 8 �
Max input level
Input impedance
THD+N / DIM100 IMD
Slew rate
Damping factor
DSP ***
A/D converter
D/A converter
Frequency response @ -3 dB
THD
Presets
Delay for time alignment
Crossover filters
Output equalizer
Input equalizer
Limiters
Damping control
System Delay
Front panel
Indicators
Controls
Maintenance
Rear panel
Controls
Input / Output connectors
Network data port Ethernet
DSP preset selection ***
Aux voltage ***
AC mains
Construction
Dimensions
Weight
* EIAJ Test Standard, 1 kHz, 1% THD, all channels driven. ** External high-pass filter required. *** HDSP+ETH version only.

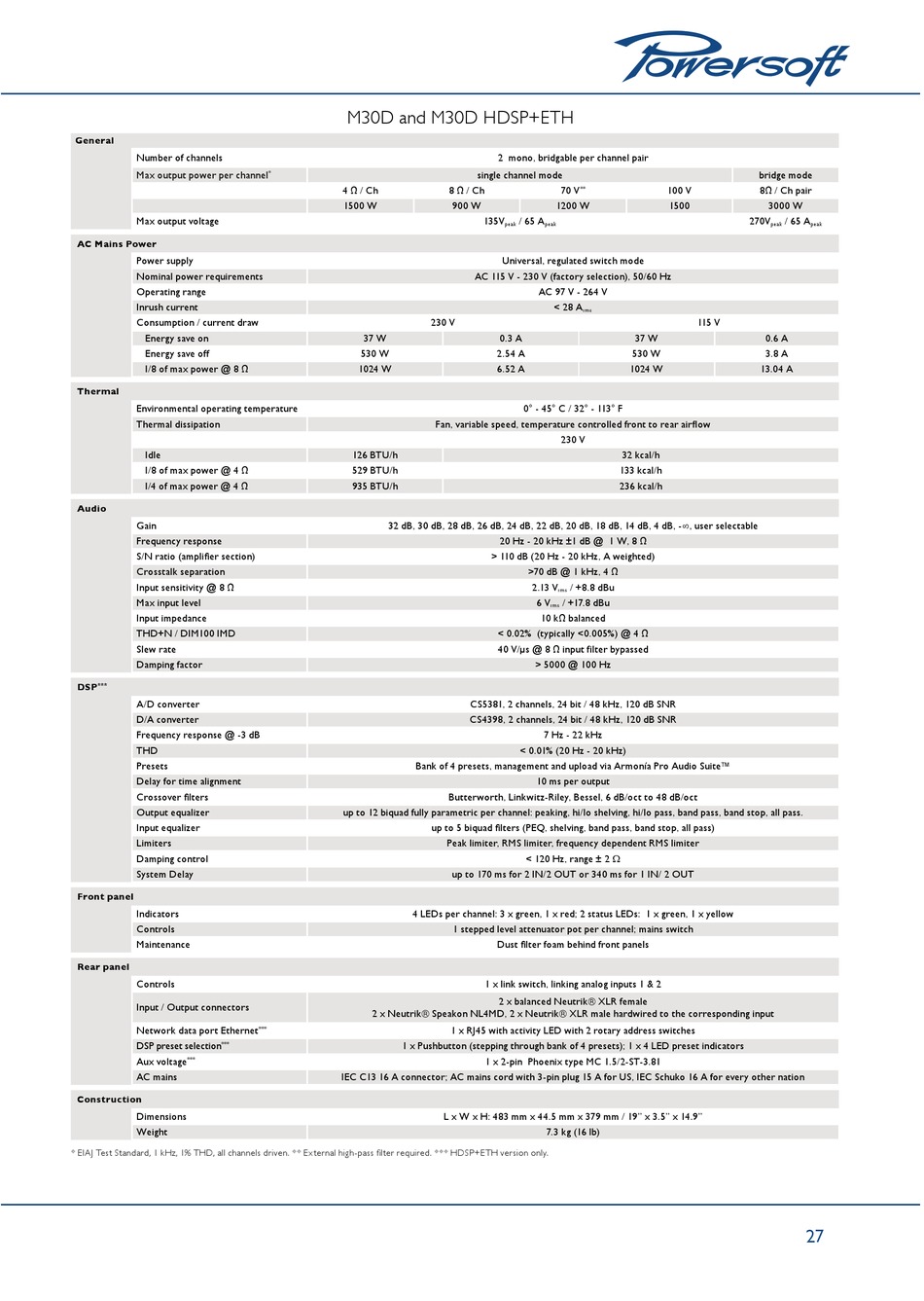

M30D and M30D HDSP+ETH

*
4 � / Ch
1500 W
230 V
37 W
530 W
1024 W
126 BTU/h
529 BTU/h
935 BTU/h
32 dB, 30 dB, 28 dB, 26 dB, 24 dB, 22 dB, 20 dB, 18 dB, 14 dB, 4 dB, -∞, user selectable
Bank of 4 presets, management and upload via Armonía Pro Audio Suite™
up to 12 biquad fully parametric per channel: peaking, hi/lo shelving, hi/lo pass, band pass, band stop, all pass.
up to 5 biquad filters (PEQ, shelving, band pass, band stop, all pass)
4 LEDs per channel: 3 x green, 1 x red; 2 status LEDs: 1 x green, 1 x yellow
2 x Neutrik® Speakon NL4MD, 2 x Neutrik® XLR male hardwired to the corresponding input
***
1 x Pushbutton (stepping through bank of 4 presets); 1 x 4 LED preset indicators
IEC C13 16 A connector; AC mains cord with 3-pin plug 15 A for US, IEC Schuko 16 A for every other nation
2 mono, bridgable per channel pair
single channel mode
8 � / Ch 70 V
**
900 W 1200 W
135V / 65 A
peak peak
Universal, regulated switch mode
AC 115 V - 230 V (factory selection), 50/60 Hz
AC 97 V - 264 V
< 28 A
rms
0.3 A
2.54 A
6.52 A
0° - 45° C / 32° - 113° F
Fan, variable speed, temperature controlled front to rear airflow
230 V
20 Hz - 20 kHz ±1 dB @ 1 W, 8 �
> 110 dB (20 Hz - 20 kHz, A weighted)
>70 dB @ 1 kHz, 4 �
2.13 V / +8.8 dBu
rms
6 V / +17.8 dBu
rms
10 k� balanced
< 0.02% (typically <0.005%) @ 4 �
40 V/µs @ 8 � input filter bypassed
> 5000 @ 100 Hz
CS5381, 2 channels, 24 bit / 48 kHz, 120 dB SNR
CS4398, 2 channels, 24 bit / 48 kHz, 120 dB SNR
7 Hz - 22 kHz
< 0.01% (20 Hz - 20 kHz)
10 ms per output
Butterworth, Linkwitz-Riley, Bessel, 6 dB/oct to 48 dB/oct
Peak limiter, RMS limiter, frequency dependent RMS limiter
< 120 Hz, range ± 2 Ω
up to 170 ms for 2 IN/2 OUT or 340 ms for 1 IN/ 2 OUT
1 stepped level attenuator pot per channel; mains switch
Dust filter foam behind front panels
1 x link switch, linking analog inputs 1 & 2
2 x balanced Neutrik® XLR female
1 x RJ45 with activity LED with 2 rotary address switches
1 x 2-pin Phoenix type MC 1.5/2-ST-3.81
L x W x H: 483 mm x 44.5 mm x 379 mm / 19" x 3.5" x 14.9"
7.3 kg (16 lb)
bridge mode
100 V 8� / Ch pair
1500 3000 W
270V / 65 A
peak
115 V
37 W 0.6 A
530 W 3.8 A
1024 W 13.04 A
32 kcal/h
133 kcal/h
236 kcal/h
peak
27
