Pro-Form 380 CSX User Manual page 7

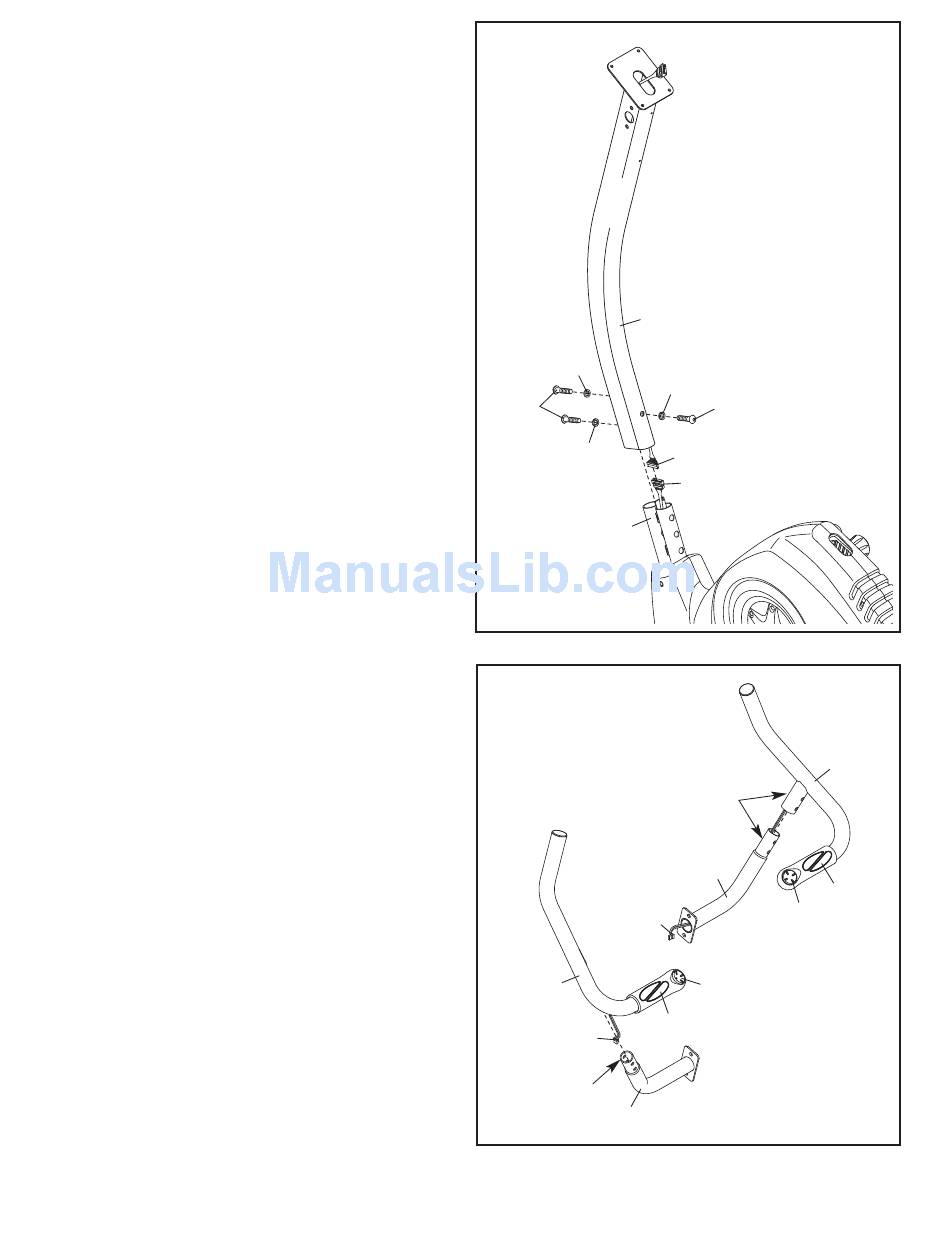

3. While another person holds the Upright (6) near
the Frame (1), connect the Upper Wire Harness
(55) to the Lower Wire Harness (51). Next, pull
the excess Upper Wire Harness out of the top
of the Upright.
Tip: Avoid pinching the wires. Slide the
Upright (6) onto the Frame (1). Attach the
Upright with three M10 x 50mm Patch Screws
(46) and three M10 Split Washers (63). Tighten
the two Patch Screws in the front of the
Upright first, and then tighten the third
Patch Screw.
4. Identify the Right and Left Handlebars (35, 36),
which are marked with "Right" and "Left" stickers.
Orient the two Handlebar Posts (7) and the
Right and Left Handlebars (35, 36) as shown.
Make sure that the Game Controllers (10),
Grips (30), and hexagonal holes are in the
indicated locations.
Locate the Right and Left Controller Wires (54,
67) in the Right and Left Handlebars (35, 36).
Then, insert the Right and Left Controller Wires
through the Handlebar Posts (7).
