USING THIS FIXTURE WITH THE wiCICLE® WIRELESS
DMX SYSTEM
In addition to the unbridled thrill you al-
ready received the fi rst time you plugged
in your fi xture, you'll be delighted to know
that This fi xture also works seamlessly with
our wiCICLE Wireless DMX system, without additional power.
®
• ONLY fi xtures bearing this logo are certifi ed for use with the wiCI-
CLE without external power.
®
• Unauthorized modifi cation and/or using the wiCICLE
unapproved fi xtures may cause damage to the wiCICLE
fi xture. UNDER NO CIRCUMSTANCES IS BLIZZARD LIGHTING
RESPONSIBLE FOR ANY DAMAGE FROM SUCH OPERATION.
• Fixtures bearing the above logo MUST only use cable and connec-
tors which separate chassis/case ground from cable shielding. Cabling
with the shield connected to the connector's case/chassis may cause
malfunction and damage to the wiCICLE
• wiCICLE transmitters have additional power requirements
®
and therefore cannot be powered directly from the fi xture. You
will need to utilize the supplied AC/DC adaptor to drive wiCI-
CLE transmitters in your system.
®

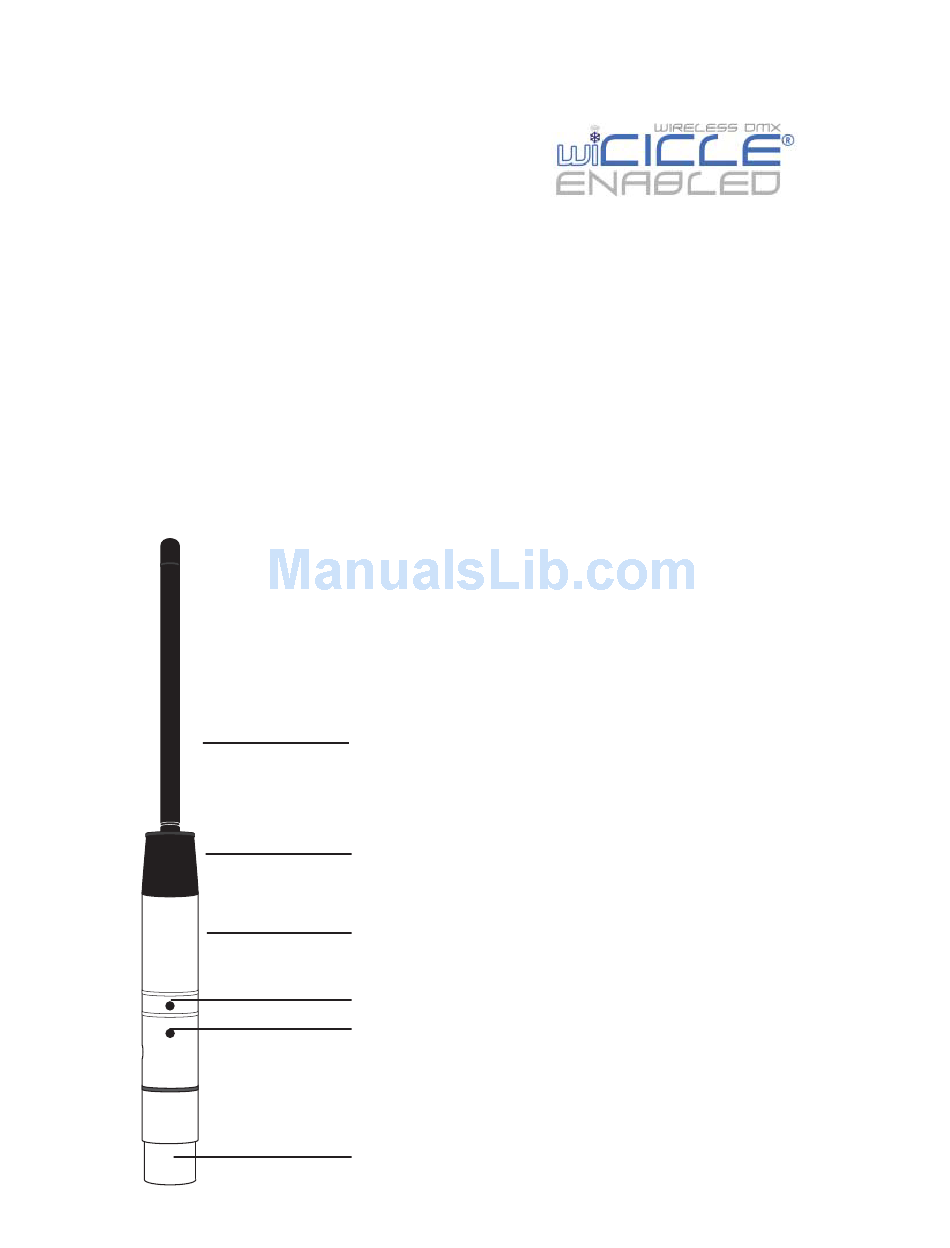

WE HAD THIS SPACE, SO WE FIGURED WE'D DRAW
YOU A PICTURE:
The Puck 3NX Manual Rev. A
or fi xture.
®
Antenna Housing & 1/2-wave
Antenna
Antenna ferrule & articulation
joint
Stainless Steel Housing
Recessed Selector Button
Status LED
3-Pin XLR Connector
(Male on transmitter, Female
on receiver model)
