Summary of Contents for Blizzard Lighting the puck pro zoom

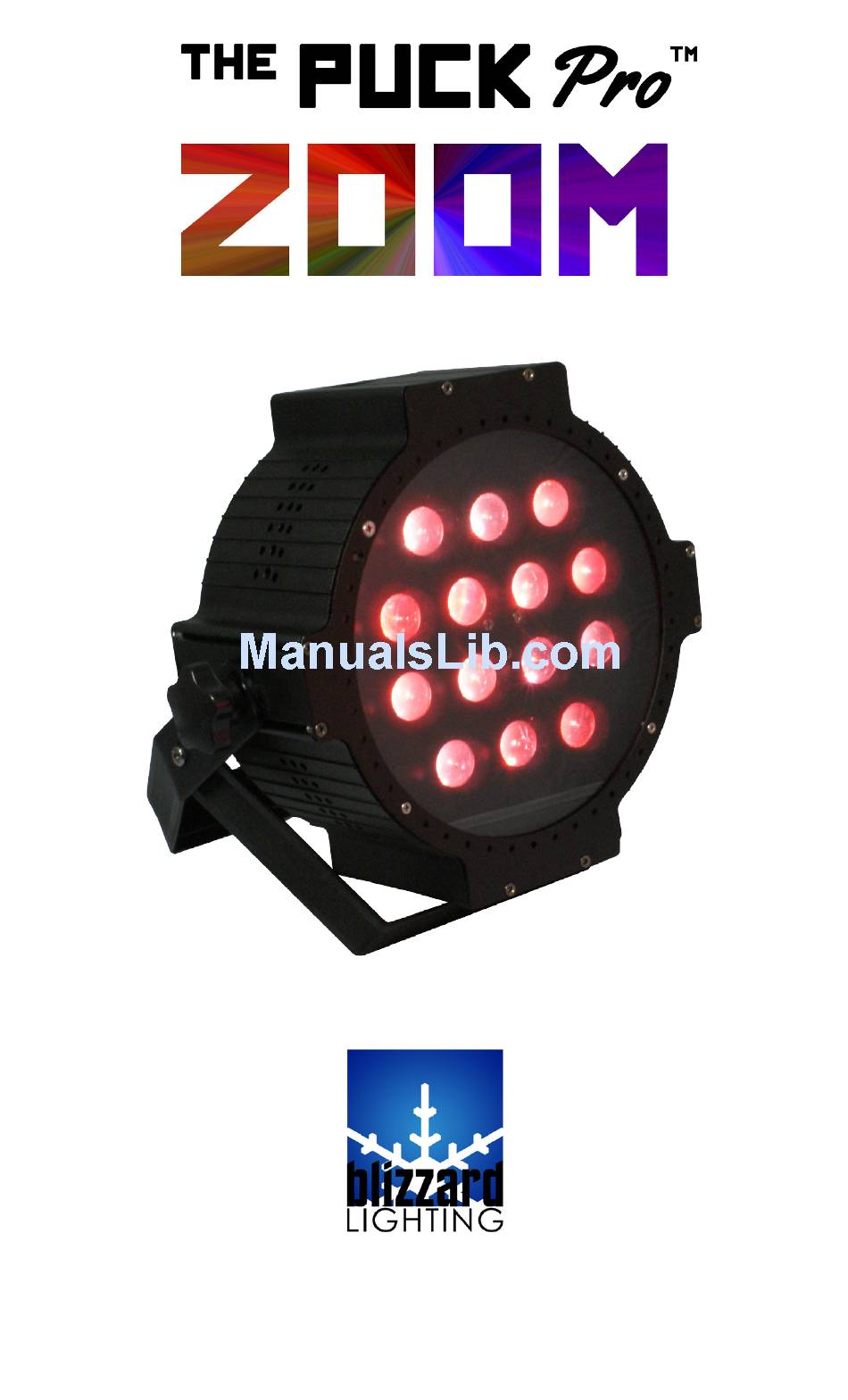

- Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2012...
-
Page 2: Table Of Contents
Getting It Out Of The Box Powering Up! Getting A Hold Of Us Safety Instructions (Don’t Stick Your Hand In The Toaster!) 2. Meet The Puck Pro Zoom™ LED Main Features Optical Specs Luminous Intensity Chart The Puck Pro Zoom™ Pin-up Picture 3. -
Page 3: Puck Pro Zoom
If something is wrong, just give us a call or send an email. We’ll be happy to help, honest. Blizzard Lighting W220 N1531 Jericho Ct. Ste E Waukesha, WI 53186 USA www.blizzardlighting.com 414-395-8365 Email: support@blizzardlighting.com Page 3 The Puck Pro Zoom Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
• Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at support@blizzardlighting.com. Page 4 The Puck Pro Zoom Manual Rev. -
Page 5: Meet The Puck Pro Zoom™ Led
2. MEET THE PUCK PRO ZOOM™ FLAT LED PAR MAIN FEATURES: • User selectable DMX personality modes • Fixture ID address assignment and operation • Built-in automated programs via master/slave • User defined programs/scenes and upload feature • Fixture temperature display and protection settings •... -
Page 6: The Puck Pro Zoom™ Pin-Up Picture
Dual Mounting Brackets Figure 2: The Rear Connections Control Panel LED Control Buttons Panel Display Carrying Handle/ Powercon Safety Point DMX In Powercon DMX Out Page 6 The Puck Pro Zoom Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 7: Setup
Should your Puck Pro Zoom™ fuse require replacement, please contact Blizzard Lighting for instructions, or to return your unit for service. Connecting A Bunch of Puck Pro Zoom™ Fixtures... -
Page 8: Cable Connectors
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 The Puck Pro Zoom Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
• Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 The Puck Pro Zoom Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
4. OPERATING ADJUSTMENTS The Control Panel All the goodies and different modes possible with the Puck Pro Zoom™ are accessed by using the control panel on the rear of the fixture. There are 4 control buttons below the LED display which allow you to navigate through the various control panel menus. -
Page 11: Control Panel Menu Structure
Menu key protection setting AUTO AT.01-AT.10 Factory program playback PR.01-PR.10 User program playback Sets the fixture to master/DMX mode SLAV Sets the fixture as slave Page 11 The Puck Pro Zoom Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 12: Dmx Mode
Color temperature (also adjustable through the [CAL1] menu): 201~205: 3200K 206~210: 3400K 211~215: 4200K 216~220: 4900K 201<-->255 221~225: 5600K 226~230: 5900K 231~235: 6500K 236~240: 7200K 241~245: 8000K 246~250: 8500K 251~255: 10000K Page 12 The Puck Pro Zoom Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC... - Page 13 000 <--> 255 Blue Intensity (0% <--> 100%) 000 <--> 255 White Intensity (0% <--> 100%) 000 <--> 255 Zoom 000 <--> 255 Zoom speed (0 slowest, 255 fastest) Page 13 The Puck Pro Zoom Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC...
-
Page 14: Id Address Selection
Celsius), and displays the current fixture temperature. • CURR - Displays current temperature. • • TOP - Sets the max temperature before shutoff (0-150, 85=default). Page 14 The Puck Pro Zoom Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 15: Edit Programs & Scenes
The fixtures will display yellow while uploading is in progress, and will turn green once uploading is complete. • REST Factory reset. Use this to reset the Puck Pro Zoom fixture back to its original factory installed settings. • Id Enables/disables ID address operation. -
Page 16: Color Temperature-Based White Balance
Each color has the adjustable values of 000 <--> 255 (0% <--> 100%). Page 16 The Puck Pro Zoom Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 17: Menu Key Protection
- Built-In Programs • PR.01-PR.10 - User-Defined Programs Run Mode This is where you set the fixture to either DMX/Master or Slave Mode • DMX - Set the fixture as the master • SLAV - Set the fixture as a slave Page 17 The Puck Pro Zoom Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 18: Troubleshooting
Verify proper mode of operation. Is the fixture in “Auto” On Its Own mode? If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com. Page 18 The Puck Pro Zoom Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 19: Appendix
It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensible tool for any lighting designer or lighting performer. Page 19 The Puck Pro Zoom Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 20: Keeping Your Puck Pro Zoom™ As Good As New
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 20 The Puck Pro Zoom Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC... -
Page 21: Tech Specs
Other Operating Modes Standalone, Master/Slave, Color Preset Coolness Factor Leventy Billion Percent 2-year limited warranty, does not cover mal- Warranty function caused by damage to LED’s. Page 21 The Puck Pro Zoom Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC... - Page 22 This page intentionally left blank. Page 22 The Puck Pro Zoom Manual Rev. A Copyright (c) 2012 Blizzard Lighting, LLC...
- Page 23 This page intentionally left blank.
- Page 24 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
