Summary of Contents for Blizzard Lighting MAX L

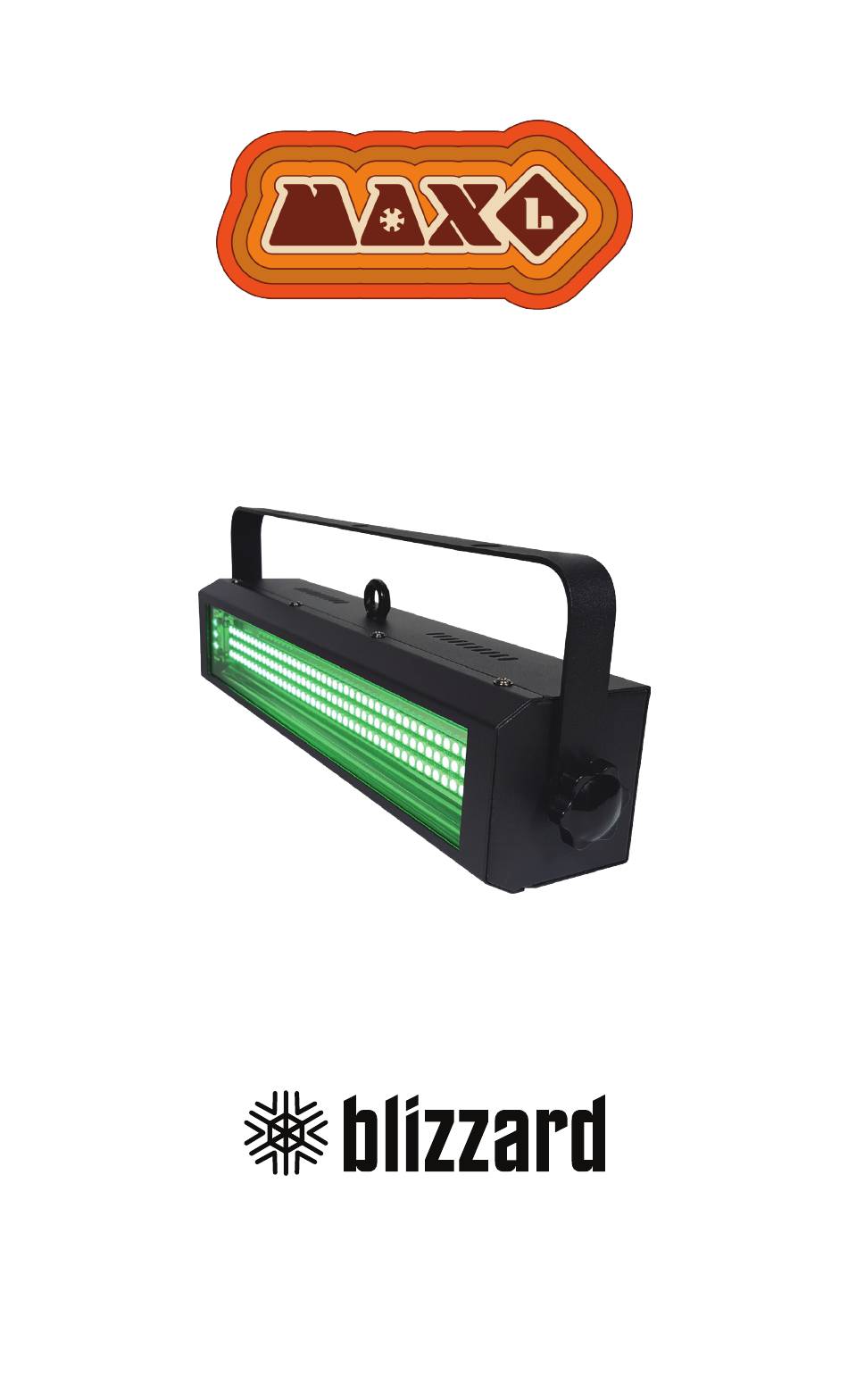

- Page 1 Blizzard Lighting, LLC http://www.blizzardpro.com Waukesha, WI USA Copyright (c) 2020...
-
Page 2: Table Of Contents
DMX Channel Mode M/S Mode Auto, Sound Active, & Manual Adjustments Color Jump & Color Fade Color Mixing and Presets 5. Appendix Keeping Your MAX L™ As Good As New Returns (Gasp!) Shipping Issues Tech Specs! Dimensional Drawings Page 2 MAX L™... -
Page 3: Getting Started
Getting It Out Of the Box Congratulations on purchasing the multi-talented MAX L™: color strobe, blinder and wash effect. Now that you’ve got MAX L™, you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. -
Page 4: Safety Instructions
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www.blizzardpro.com/support. Page 4 MAX L™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC... -
Page 5: Meet Max L
Dimmer (0% <--> 100%) Strobe (slow <--> fast) Color Macros Red Intensity (0% <--> 100%) Green Intensity (0% <--> 100%) Blue Intensity (0% <--> 100%) Sound Active (mic sensitivity) Page 5 MAX L™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC... -
Page 6: Max L™ Pin-Up Picture
Safety Loop Mounting Bracket Locking Knob 132x 0.2W SMD 5050 RGB LEDs The Rear Connections Fuse Holder DMX Input Power Input Control Panel Menu DMX Output Page 6 MAX L™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC... -
Page 7: Setup
Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms Page 7 MAX L™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC... -
Page 8: Cable Connectors
Place a DMX Next terminator on the output of the final fixture to Fixture ensure best communication. in Chain DMX IN DMX OUT Page 8 MAX L™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (M/S Mode)
If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. Page 9 MAX L™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
4. OPERATING ADJUSTMENTS The Control Panel All the features and different modes possible with the MAX L™ are accessed by using the control panel on the rear of the fixture. There are 4 control buttons under to the LED display which allow you to navigate through the various con- trol panel menus. -
Page 11: Control Panel Menu Structure
AUTO AU.XX Auto Mode (00-99, slow <--> fast) SLAV <ENTER> Slave Mode SOUN S0.XX Sound Active (00-99, mic sensitivity level) xCHx X.CH DMX channel mode options Page 11 MAX L™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC... -
Page 12: Dmx Mode
2.) For manual color mixing, adjust the Red (C1), Green (C2), and Blue (C3) intensity levels from 0-255, and press the <ENTER> button. 3.) For preset colors, highlight 01-07 and press <ENTER>. Page 12 MAX L™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC... - Page 13 129 <--> 192 038 <--> 045 Green 094 <--> 101 Pink Color Fade (slow - fast) 046 <--> 053 Turquoise 102 <--> 109 Warm White 193 <--> 255 Page 13 MAX L™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC...
-
Page 14: Appendix
5. APPENDIX Keeping Your MAX L™ As Good As New The fixture you’ve received is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. That said, you’ll need to take care of it if you want it to operate as designed. -
Page 15: Tech Specs
2-year limited warranty, does not cover malfunction Warranty caused by damage to LEDs. Dimensional Drawings 3" (75 mm) 0.8" (20 mm) 13.7 in (348 mm) 12.7 in (322 mm) Page 15 MAX L™ User Manual - Rev. A © 2020 Blizzard Lighting, LLC... - Page 16 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
