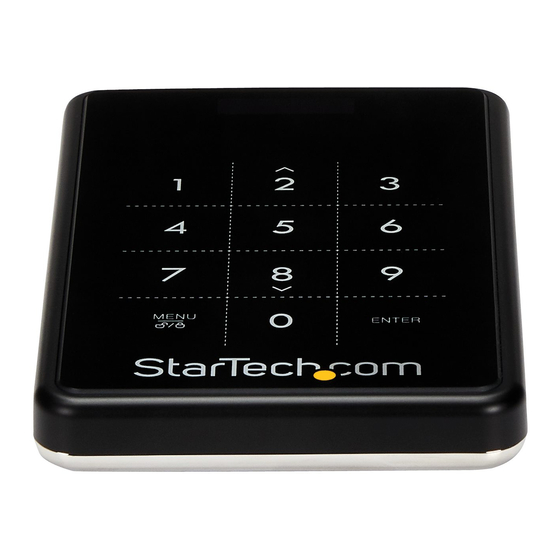

USB 3.0 to 2.5" SATA III Enclosure w/Encryption
S2510BU33PW
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/29/2016
Advertisement
Table of Contents
Related Manuals for StarTech.com S2510BU33PW
Summary of Contents for StarTech.com S2510BU33PW
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 07/29/2016...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Diagram ..................2 Top View ............................... 2 Front View ..............................2 Hardware Installation ................3 How to Use ....................5 Initial Setup ..............................5 Menu Options ............................. 6 Technical Support ..................9 Warranty Information ................9 Instruction Manual... -
Page 4: Introduction
Introduction Packaging Contents • 1 x USB 3.0 to 2.5” SATA III Enclosure w/ Encryption • 1 x USB 3.0 Cable • 1 x Drive case • 1 x Drive installation screws • 1 x Mini screw driver • 1 x Instruction manual Note: It is recommended that the contents of this enclosure be regularly backed-up, as lost passwords or hardware failure (SATA drive or enclosure) will result in the stored data being unrecoverable. -
Page 5: Product Diagram
Product Diagram Top View 1. OLED Readout Display 2. Touchscreen Keypad Front View 1. USB 3.0 Micro B port Instruction Manual... -
Page 6: Hardware Installation
Hardware Installation WARNING! Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. - Page 7 3. Place the 2.5” SATA drive into the bay (label side down) and slide the drive onto the SATA connector. Make sure the drive is fully seated. CAUTION: To use AES encryption, the drive must be initialized and formatted after setup.
-
Page 8: How To Use
How to Use Initial Setup 1. When connected to a host computer for the first time, the OLED readout will prompt you to setup a password or not. If no password is used, the enclosure will function as a standard external hard drive enclosure without any encryption. 2. -
Page 9: Menu Options
Menu Options Pressing the <Menu> button on the keypad will allow access to additional options for the enclosure. Press the <UP> and <DOWN> arrow keys (<2>, <8>) to scroll through the available options. HDD Temp Displays the current temperature of the installed SATA drive. Note: Only compatible with select hard drives USB Connection Speed Displays the current USB connection mode (i.e. - Page 10 When entering characters for the “Name”, refer to the following chart. Enter the code for the desired character and then press <Enter>. When finished entering all characters, press the <Menu> button to save and exit < “ > & ‘ NOTE: There is no backspace, so if a wrong character is entered, you must exit and re-enter the menu to start over.
- Page 11 HDD Lock Instead of disconnection the hard drive during extended period no use or while leaving the drive unattended the drive can be Locked and disconnected from the host by pressing and holding the <Menu> button for about 5 seconds. To Unlock the drive, press and hold the <Menu>...
-
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
