Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Front View ..............................2 Rear View ..............................2 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................5 How to Use RAID Mode .................5 Drive Status Indicators ..........................6 eSATA/ USB Connectivity ........................ -
Page 4: Introduction

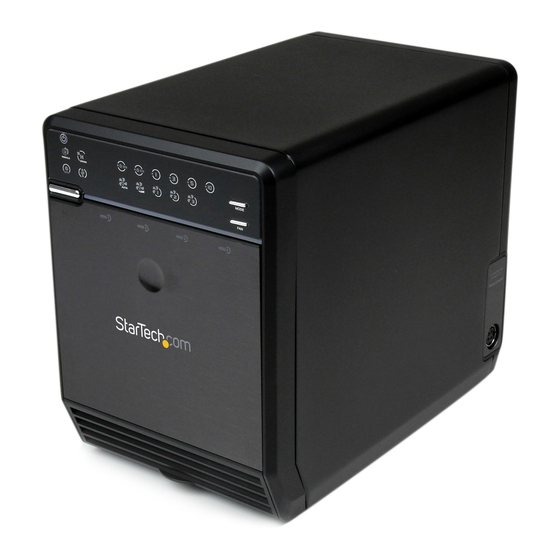

Introduction The SAT3540U3ER 4 Drive Bay USB 3.0/eSATA to 3.5” SATA RAID Enclosure is a high- performance external RAID storage solution, supporting up to 4 high capacity 3.5” SATA hard drives over a USB 3.0 or eSATA connection. The 4-bay RAID enclosure can be connected to the host/source computer through... -
Page 5: Front View
Front View Fan button Mode button LED indicators Power button Drive Bay Front Cover DC Power connector Rear View RAID Mode USB 3.0 type B Confirmation connector button (under cover) eSATA connector Instruction Manual... -
Page 6: Installation
Installation WARNING! Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 7: Driver Installation
4. Remove the cardboard inserts (if first time setup) and then insert the hard drives into the slots. Hard drives can be removed from the enclosure by pressing down on the handles, then pulling them out. 5. Once all of the hard drives are installed, reinstall the metal cage and front door. Make sure the bottom of the cage stays inside of the track before closing the cover. -
Page 8: How To Use Raid Mode
How to Use RAID Mode While the enclosure is powered on, press and hold the ‘Mode’ button for three (3) seconds until one of the RAID LED’s start to flash. Pressing the ‘Mode’ button will now switch between available RAID modes. Once set, press and hold the ‘Confirmation’ button on the back of the enclosure until the enclosure powers off. -
Page 9: Drive Status Indicators
Drive Status Indicators Status Description An error has been detected on one or more hard drive. RAID array is currently rebuilding. eSATA/ USB Connectivity The LED indicators will show which host interface is currently active on the enclosure. To switch interfaces, shut the enclosure off and disconnect old cable and then connect the new cable and turn the enclosure back on. -
Page 10: Fan Speed Control
Fan Speed Control The cooling Smart Fan is automatically controlled by an integrated thermal sensor, but can also be set manually. The fan is capable of running at 3 different speeds depending on the temperature range of the enclosure (less than 45°C, between 45°C ~ 54°C, and greater than 55°C), or set manually to run constantly at a single speed. -
Page 11: Specifications
Specifications Number of Drive Bays Host Interface USB 3.0/ eSATA Chipset ID JMicron JMB394 + JMB355 + JMS539 1 x USB 3.0 type B female External Connectors 1 x eSATA female 1 x DIN power connector 1 x Power 5 x Fan Speed/Mode 2 x Host Connection LEDs 4 x HDD Power/Activity... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
