1-10
Top cover support
The top cover support holds the top cover in the open position while you perform tasks
with the printer, such as changing the print ribbon or optional overlay material, or
clearing a card jam. Use the top cover support whenever you work inside the printer.
Back of the printer

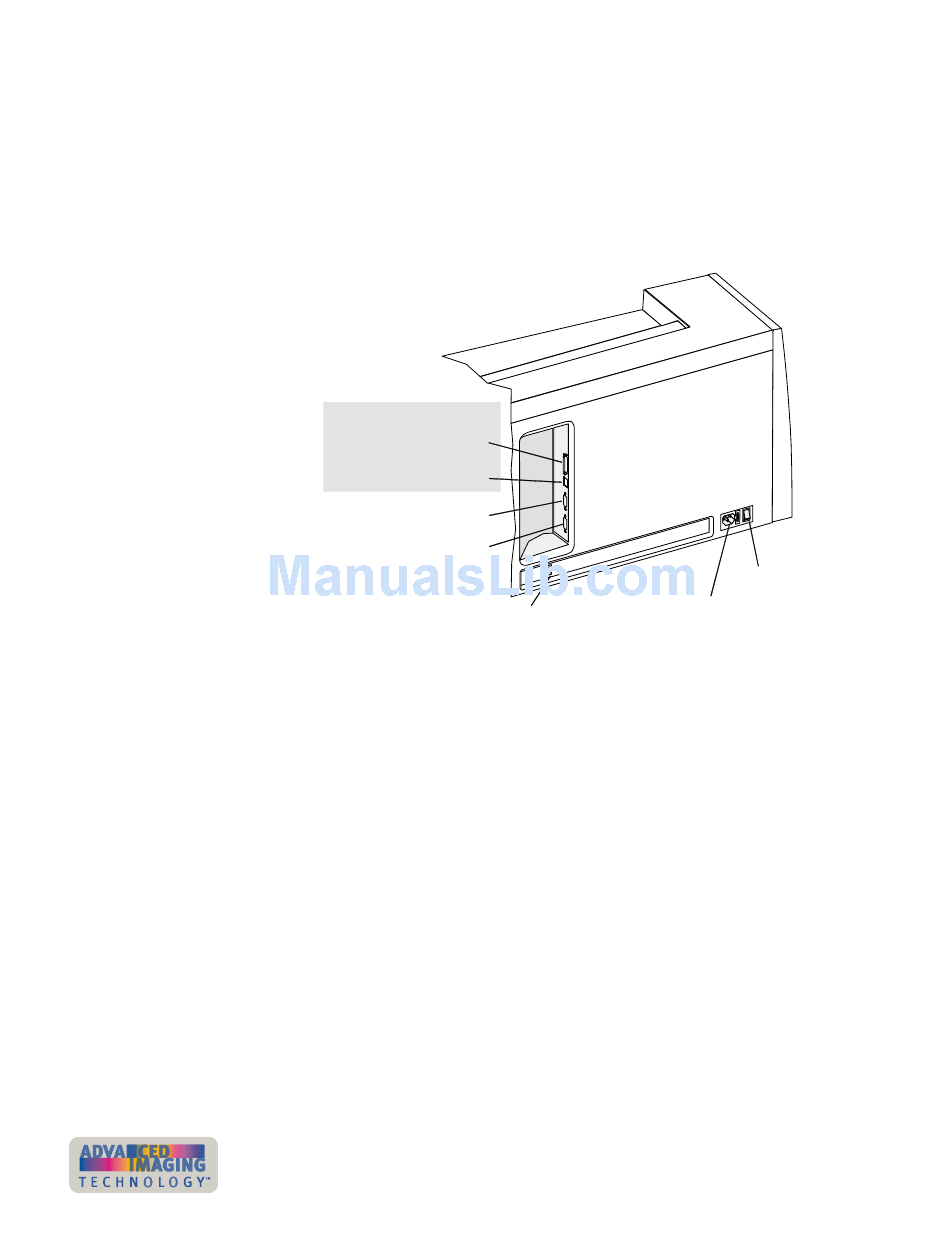

Figure 1-7
Contactless smart card serial port
If the printer includes an optional laminator module, that module extends farther than
the ports and receptacles area.
Find the following on the back of the printer:
Data Port
The printer includes two data ports. Select only one data port to use.
•
•
Power switch
Use the Power switch to power on or power off the printer.
shows the back of the Magna Class printer:
Data port
ECP parallel port
USB port
Contact smart card serial port
Security lock receptacle
Figure 1-7: The back of the Magna Class printer
ECP parallel port
Use the ECP parallel port to connect the printer's data cable to the PC, if the
printer was ordered with a parallel cable.
USB port
Use the USB port to connect the printer's data cable to the PC, if the printer was
ordered with a USB cable.
User's Guide for ImageCard® Magna™ and UltraGrafix® Magna™ Printers
Overview
Power switch
Power receptacle
