788T/788T-SSD User Guide and Technical Information
1. Slide and hold the COM1 or COM2 switch to the left. This will activate the respective COM
circuit.

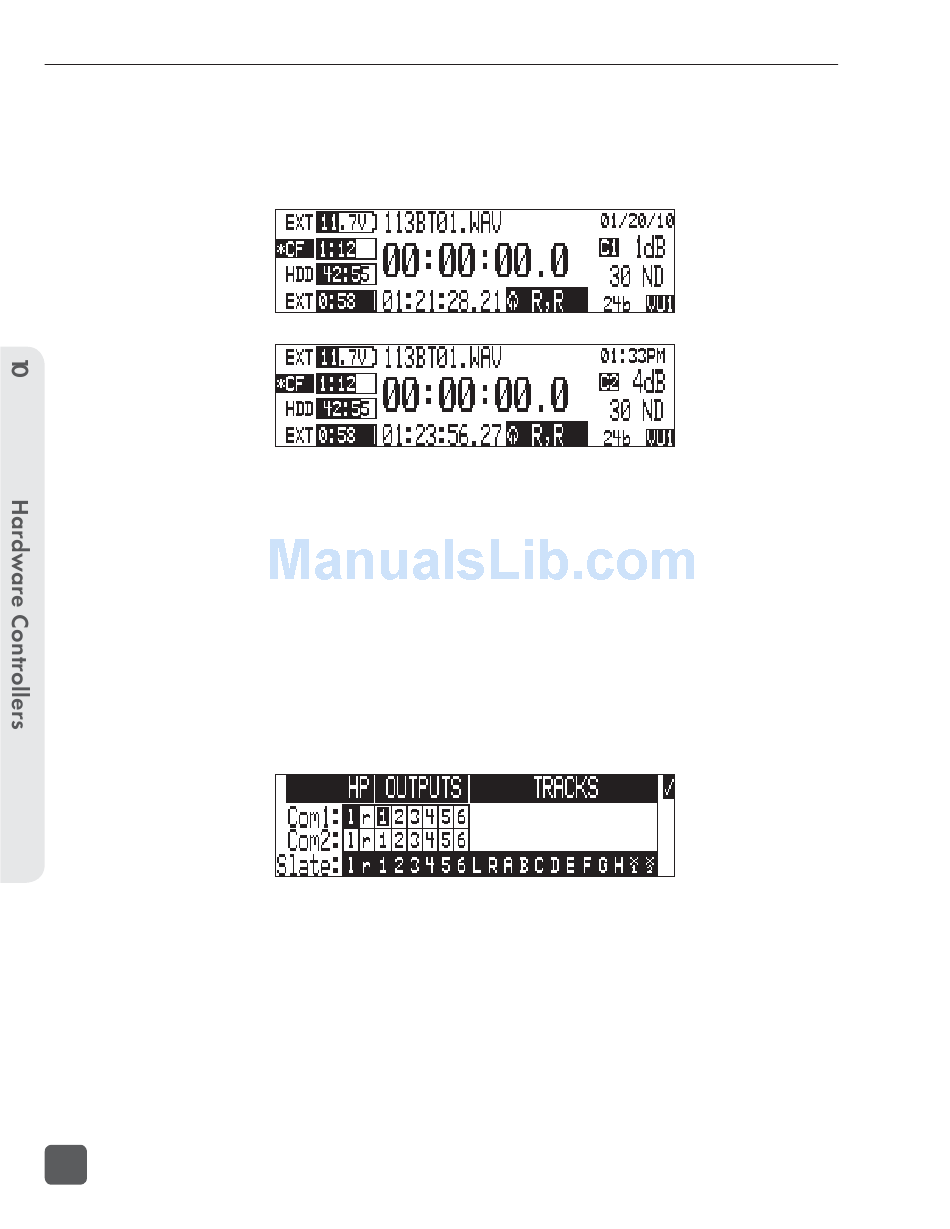

2. Turn the CL-9 Headphone Level Control to adjust the gain. The gain level is momentarily
displayed in the Sample Rate fi eld of the 788T Main LCD display.
3. Release the COM Switch to deactivate the COM.
Setting up a Bidirectional Talk Back Circuit
The following is a setup example for a specifi c Talk Back circuit with a Boom Op using the 788T with
CL-9.
1. Connect the Boom microphone to Input 1.
2. Set the Output 1 source in the Setup Menu option OUTPUT 1: SOURCE to Input 1. This will
allow the Boom Op to hear his Boom Mic.
3. Connect the 788T Output 1 to the Boom-Op's headphone amplifi er.
4. Enter the Setup Menu option COMMS: ROUTING. In COM1 Routing select l (Left Headphone
monitor) and 1 (Output 1). This will send the selected communications send source to the
Boom Op's headphones via Output 1 and to the Sound Mixer's Left Headphone monitor via
any of the CL-9 Headphone connections when COM1 is active.
5. Connect the Boom-Op's headset mic signal into the line-level RTN1 Input on the CL-9.
6. Set the RTN1 level. Slide and hold the COM1/RTN1 switch in the right (RTN1) position then
turn the CL-9 Headphone Level Control. This adjusts the return level (Boom Op's Headset
Mic) sent to the CL-9's headphone connections.
7. Set the COM1 send level. Slide and hold the COM1/RTN1 switch in the left (COM1) position
then turn the CL-9 Headphone Level Control. This adjusts the Com send level sent to the
COM1 routing destinations. In this scenario this would adjust the Com send signal sent to
Output 1(Boom-Op's headphones) and 788T/CL-9 Left Headphone Monitor (Sound Mixer's
headphones).
The following diagram illustrates a wireless Talk Back setup using a Sound Devices MM-1.
144
