Mode Ring LED
EQ Frequency Metering (PFL + Post-EQ)
Input Solo (yellow)
Input Mute (red)
EQ Gain Metering (PFL + Post-EQ)
Input Solo (yellow)
Input Mute (red)
Q Factor Metering (PFL + Post-EQ)
Input Solo (yellow)
Input Mute (red)
Pan Metering (PFL + Post-EQ)
Input Solo (yellow)
Input Mute (red)
Output Output Metering (pre-
output gain)
Output Mute (red)
Output Solo (yellow)
Trim Mode (Default)

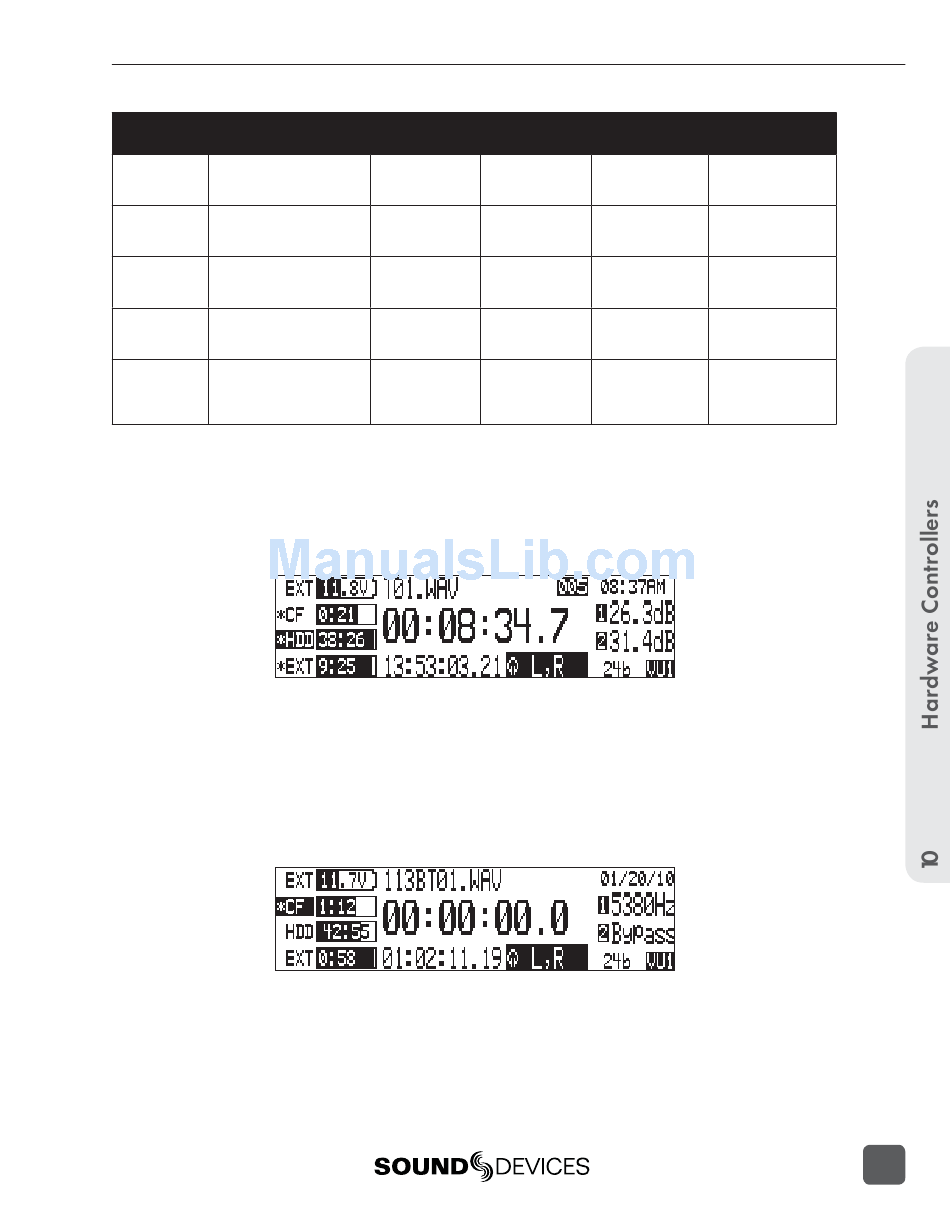

In Trim Mode, turn an input's Rotary Encoder to adjust the trim level of the respective input. The
788T Front Panel Gain Knobs are used solely to turn inputs on and off when the CL-9 is connected.
The trim gain of the input and neighboring input is displayed in dB on the 788T Main LCD Display
while being adjusted. When in Trim Mode, none of the Mode LEDs are illuminated. Encoder Accel-
eration applies to Trim Mode
EQ Frequency
In EQ Frequency Mode, turn an input's Rotary Encoder to adjust the EQ frequency of the respective
input. EQ Frequency is adjusted from 30 Hz to 10 kHz in 10 Hz steps and from 10.1 kHz to 20 kHz in
100 Hz steps. To Bypass an EQ setting, press and hold the input's Rotary Encoder for one second or
longer. When EQ Frequency Mode is active, the EQ FREQ Mode LED fl ashes green and EQ Frequen-
cy settings are displayed in Hz on the 788T Main LCD display. Encoder Acceleration applies to EQ
Frequency Mode (see Encoder
EQ Gain
In EQ Gain Mode, turn an input's Rotary Encoder to adjust the EQ Gain of the respective input. EQ
gain is adjusted from -12 to +12 dB in 1 dB increments. To Bypass an EQ setting, press and hold the
input's Rotary Encoder for one second or longer. When EQ Gain Mode is active, the EQ GAIN Mode
LED fl ashes green and EQ gain settings are displayed in dB on the 788T Main LCD display.
788T/788T-SSD User Guide and Technical Information
788T LCD Encoder
Display Turn
EQ Frequency EQ Frequency
in Hz adjust
EQ Gain in dB EQ Gain adjust
Q-Factor in steps Q-Factor adjust
Pan position Pan adjust
Output Level Output Level
in dB adjust
(see Encoder Acceleration).
Acceleration).
Encoder Encoder Press
Press and Hold
Toggles Input Solo Toggles EQ On/Off
(Bypass control)
Toggles Input Solo Toggles EQ On/Off
(Bypass control)
Toggles Input Solo Toggles EQ On/Off
(Bypass control)
Toggles Input Solo N/A
Toggles Output Toggles Output Mute
Solo
