788T/788T-SSD User Guide and Technical Information
White/Green/Red
Red on Record Only
Green on Play Only
White Only

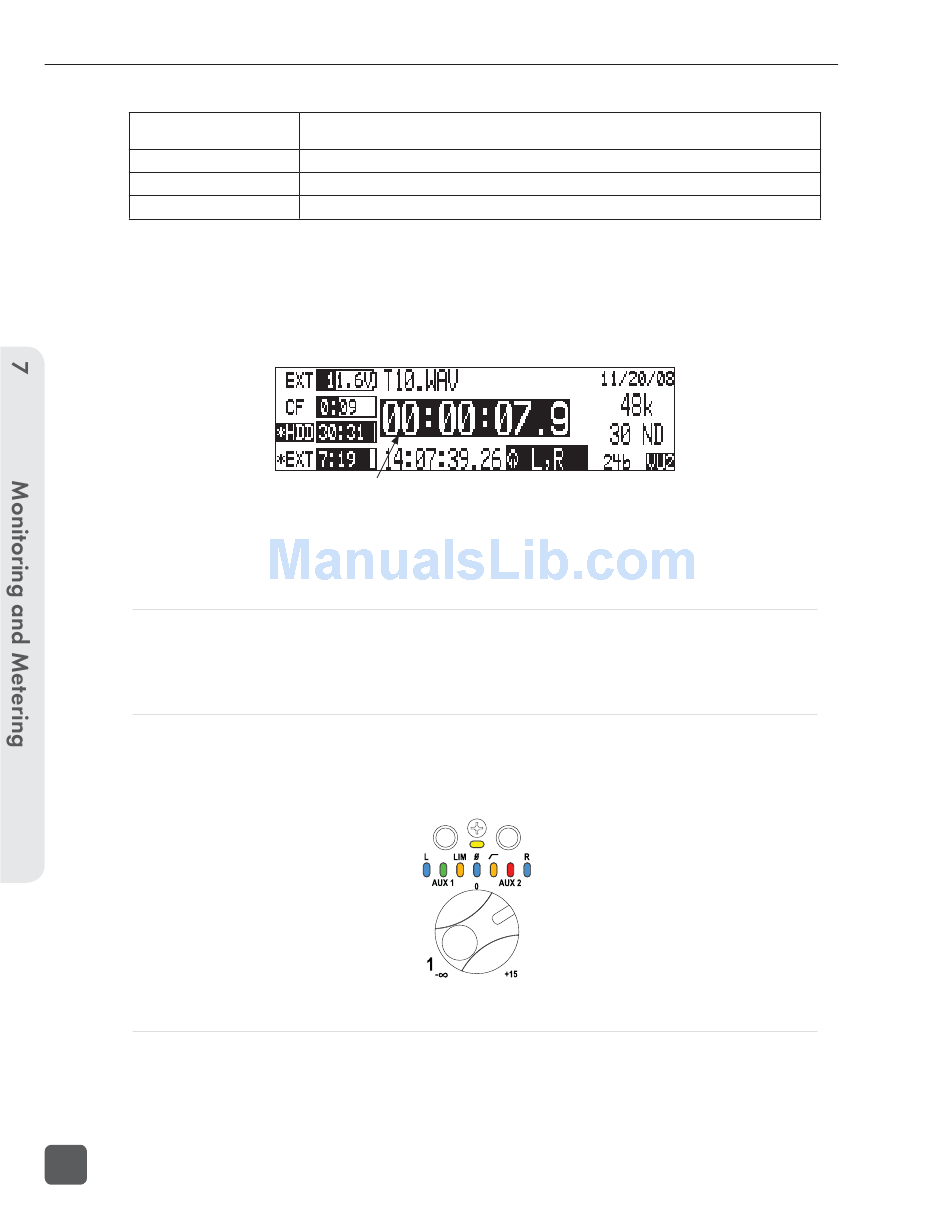

Time Display and Record Indication
The position of the A-time numbers and time code numbers can be exchanged in the Setup Menu op-
tion TIME CODE: DISPLAY MODE. When Big Time Code is selected, the time code value is displayed
in the main numeric display. If time code is turned Off, the A-time is displayed as large numbers,
even when Big Time Code is selected.
To provide for additional visual indication that recording is in process, the big numerals can
be set to reverse contrast or to fl ash during record. This is selected in the Setup Menu option
REC: RECORD INDICATOR.
CL-2 Metering and Display
The CL-2 is an optional one channel remote fader for the 788T. The CL-2 displays Post-Fade Signal
activity, Post-Fade Limiting activity, Media Activity status, Input Solo, Input Mute status, and Record
status. See CL-2 Remote Fader for more details.
CL-8 Metering and Display
The CL-8 is an optional mixing control surface for the 788T. The CL-8 displays Post Fade Signal
Activity, ost-Fade Limiting activity, Left/Right track routing, Aux 1/Aux 2 track routing (pre or post
fade), Input Limiter status, Input Polarity status, High-Pass Filter status, and Solo status.
Controller for more details.
CL-9 Metering and Display
The CL-9 is an optional Linear Fader Controller for the 788T. The CL-9 displays Pre-Fade Signal
Activity, Pre- and Post-Fade Limiting activity, Input-to-Track routing, Input/Output/Track Solo and
Mute status, Track Arming status, and much more.
details.
82
v. 3.01 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.
This is the Factory Default setting. The backlight will illuminate White in Standby, Green during
Playback, and Red during Recording.
The LCD backlight will illuminate Red during Recording and White for Standby and Playback..
The LCD backlight will illuminate Green during Playback and White for Standby and Record..
The LCD backlight will remain White at all times.
reversed numbers indicating that recording is active
See CL-9 Linear Fader Controller section for more
See CL-8
